Reelmaster 7000- DHydraulic System Page 5 - 112

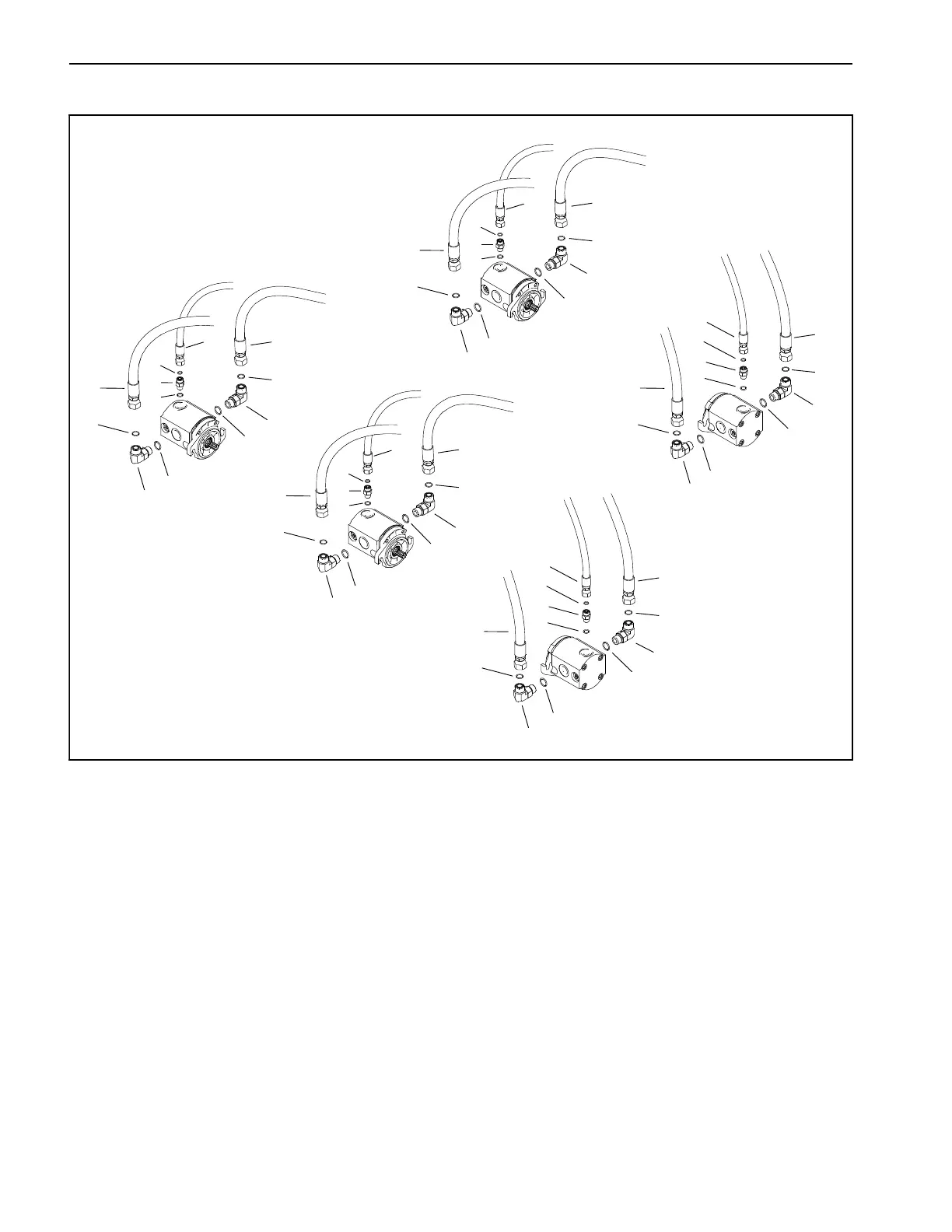

Cutting Unit Motor
1. O- Ring
2. Elbow fitting
3. O- Ring
4. O- Ring
5. Straight fitting
6. O- Ring
7. Hydraulic hose (inlet)
8. Hydraulichose(return)
9. Hydraulichose(casedrain)
Figure 69
#1
#5
#3
#2
#4
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
3
8
3
8
3
8
3
8
3
8
2
2
2
2
2
3
7
3
7
3
7
3
7
3
7
4
5
6
9
4
5
6
9
4
5
6
9
4
5
6
9
4
5
6
9
The hydraulic reel motors used on all cutting units are
the same.
Removal (Fig. 69)
1. Park machine on a level surface, lower cutting units,
stop engine, engage parking brake and remove key
from the ignition switch.
2. Read the General Precautions for Removing and
Installing Hydraulic System Components at the begin-
ning of this chapter.
3. To prevent contamination of hydraulic system during
reel motor removal, thoroughly clean exterior of motor.
4. Disconnect hydraulic hoses from reel motor. Put
caps or plugs on fittings and hoses to prevent contami-
nation of hydraulic system. Label hydraulic hoses for
proper assembly.
5. Loosen two (2) cap screws that secure the hydraulic
reel motor to the cutting unit side plate. Rotate motor
clockwise and remove motor from cutting unit (Fig. 70).
6. Carefully remove the O- ring from the reel motor
flange. Inspect the O- ring for wear or damage. Replace
if necessary
