Toro 03721 Service Manual

Reelmaster 7000- DHydraulic System Page 5 - 114

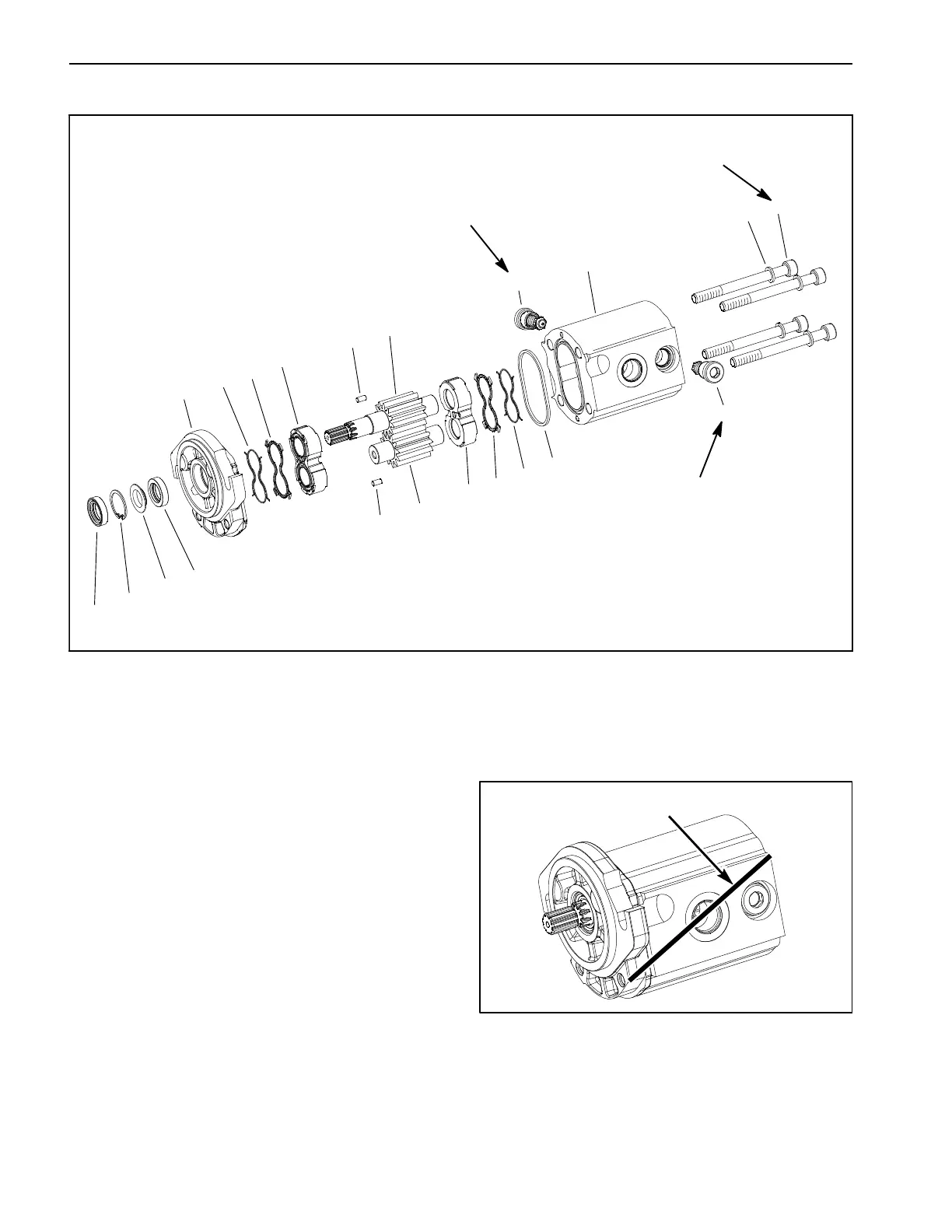

Cutting Unit Motor Service
1. Dust seal
2. Retaining ring
3. Flange washer
4. Shaft seal
5. Front flange
6. Pressure seal
7. Back- up gasket
8. Front wear plate
9. Dowel pin
10. Idler gear
11. Drive shaft
12. Rear wear plate
13. O- ring
14. Relief valve
15. Body
16. Washer (4)
17. Cap screw (4)
33 ft- lb
(45 N- m)
19 ft- lb
(25 N- m)
19 ft- lb
(25 N- m)
Figure 71
1
2
3
4
5
6
7
8
9
10
11
12
9
6
7
13
14
15
16
17
14
Disassembly (Fig. 71)
1. Plug motor ports and clean the outside of the motor
thoroughly. After cleaning, remove plugs and drain any
oil out of the motor.
2. Use a marker to make a diagonal line across the
front flange and body for assembly purposes (Fig. 72).
IMPORTANT: Prevent damage when clamping the
reel motor into a vise; clamp on the front flange only.
Also,useavisewithsoftjaws.
3. Clamp front flange of motor in a vise with soft jaws
with the shaft end down.
4. Loosen cap screws from the rear cover.
5. Remove motor from the vise. Turn motor so that the
shaft end is facing down. Remove cap screws.
MARKER LINE
Figure 72
