Reelmaster 7000−D
Page 4 − 6
Kubota Diesel Engine
Exhaust System

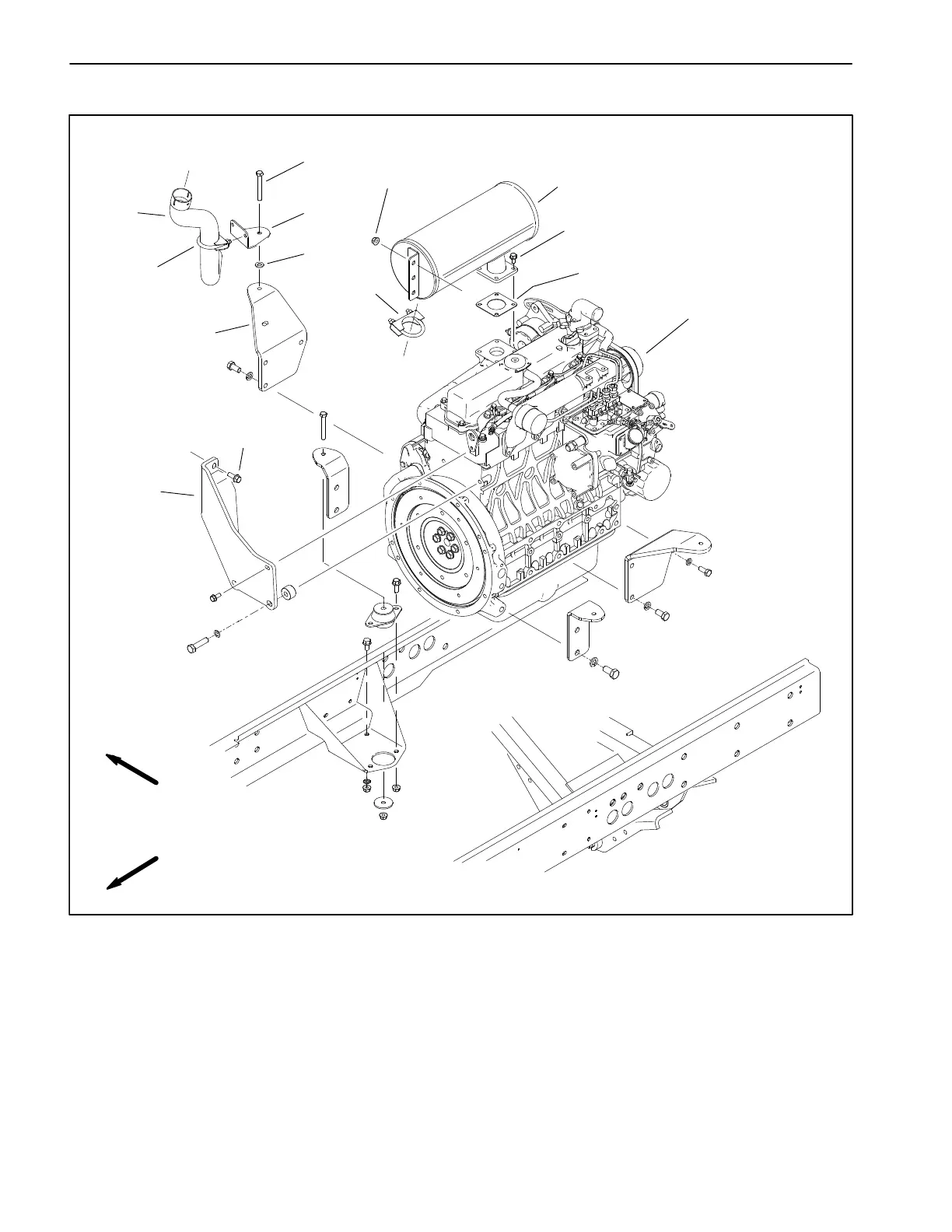

Figure 4
1. Muffler
2.
Flange head screw (2)
3.
Flange head screw (4)
4. Muffler
clamp
5. T
ailpipe
6.
RH engine mount
7. Flat
washer
8. Cap
screw
9. Muffler
bracket
10. Muffler
gasket
1
1. Engine
12. Muffler
bracket
13.
Flange nut (2)
14. Muffler
clamp
FRONT
RIGHT
1
3
4
6
10
12
5
7
8
9
11
13
14
2
