Reelmaster 7000−D Page 6 − 11 Electrical System
Main Information Screen
The InfoCenter main information screen is displayed
about 10 seconds after the ignition switch has been
turned from the OFF position to the ON/PREHEAT or
START position (Fig. 9). The main information screen is
the “default” screen as it will be displayed during normal
machine operation. The main information screen pro-
vides the following information to the operator:
 Engine coolant temperature
 Hydraulic oil temperature
 Traction system
Either the neutral, high (transport) speed range,
or low (mow) speed range icon will appear at all
times
 Parking brake
Icon appears when parking brake is engaged
 Reels
Icon appears when reels are engaged
 Lift arms
Up icon appears while lift arms are raising
Down icon appears while lift arms are lowering
 Operator’s seat
Icon appears when the operator is out of the seat
and the seat must be occupied before machine
operation can continue
Press the Menu/Back button once to expose the naviga-
tion pane, then press the Right/Left button (as indicated
by the
in the navigation pane) to toggle between the
main information screen and the splash screen
(Fig. 10). The navigation pane will close automatically if
another button is not pressed within six seconds.
100
170
240
N
140
180
220
100
170
240
N
140
180
220

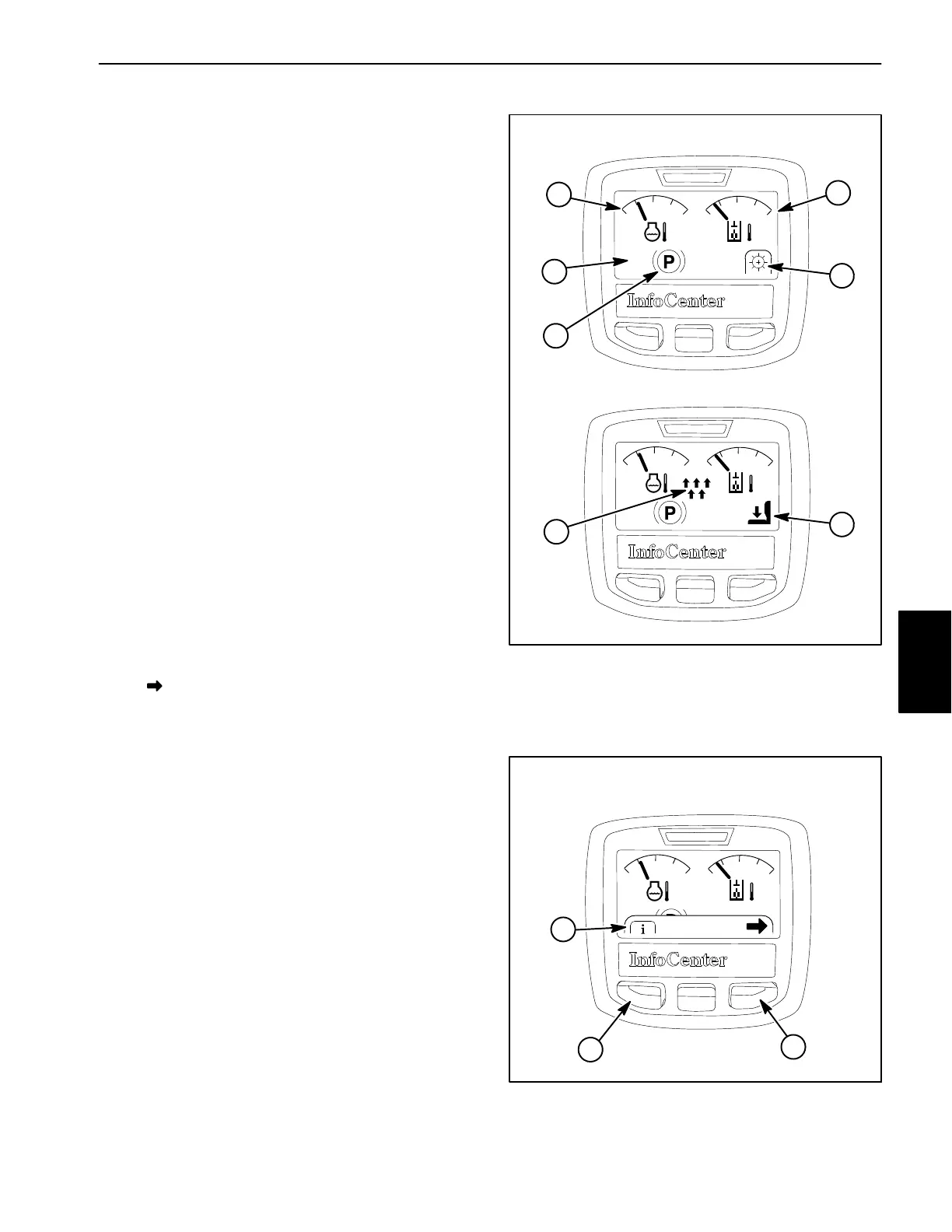

1. Engine coolant
temperature
2. Hydraulic oil
temperature
3. Traction system (neutral)
4. Parking brake (engaged
)
5. Reels (engaged)
6. Lift arms (raising)
7. Operator’s seat
(unoccupied)
Figure 9
1
3
4
5
MAIN INFORMATION SCREEN
2
7
6
100
170
240
N
140
180
220
1. Navigation pane
2. Menu/Back button
3. Left/Right button
Figure 10
1
2
3
MAIN INFORMATION SCREEN
(NAVIGATION PANE EXPOSED)
Electrical
System
