Toro 03721 Service Manual

Reelmaster 7000−DPage 7 − 10Axles, Planetaries and Brakes
Brake Inspection and Repair

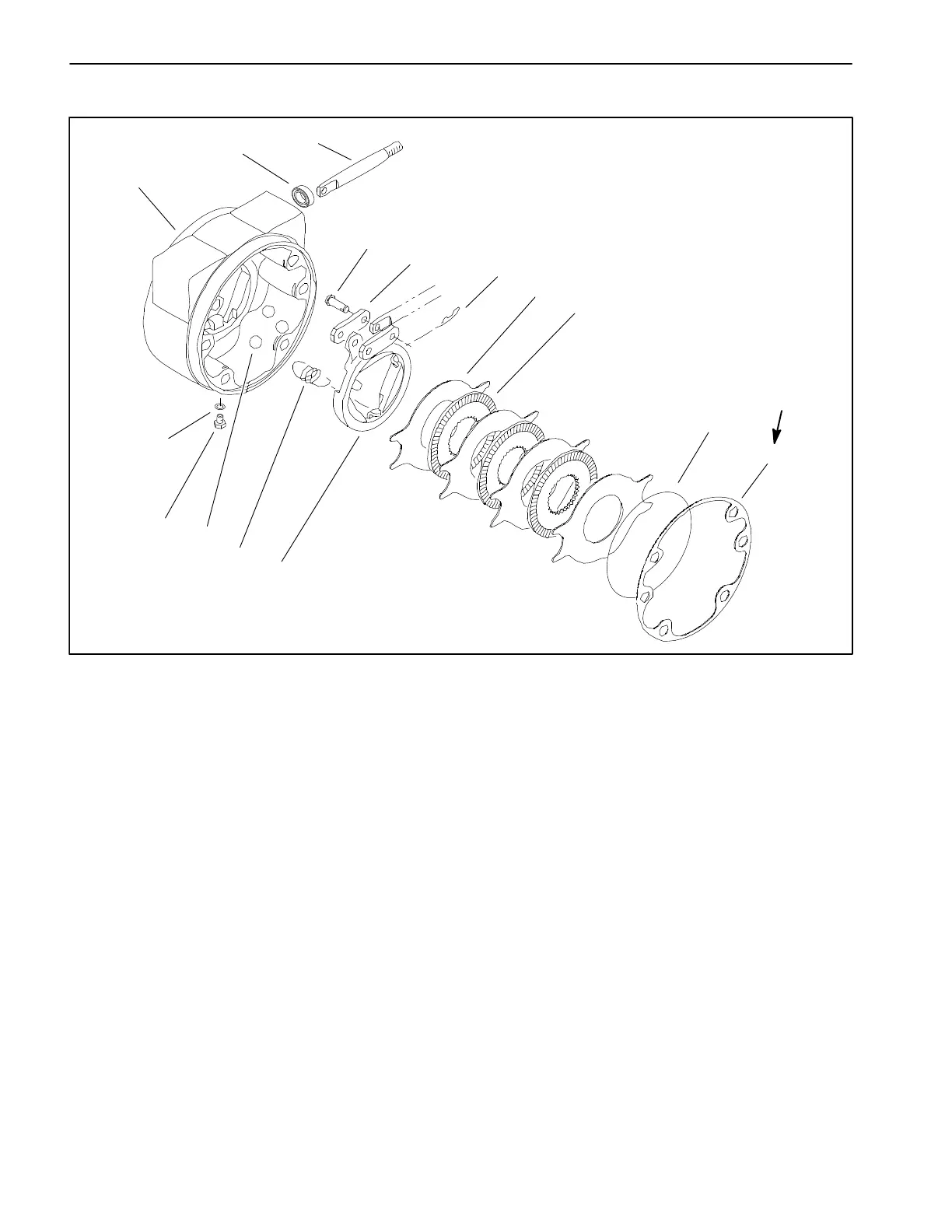

1. Brake housing (LH shown)
2. Seal
3. Pull rod
4. Clevis pin (2)
5. Link (2)
6. Hitch pin (2)
7. Stationary disc (4)
8. Rotating disc (3)
9. Retaining ring
10. Gasket
11. Rotating actuator
12. Extension spring (3)
13. Ball (3)
14. Plug
15. O−ring
Figure 3
3
2
4
5
6
7
8
9
10
14
13
12
11
15
1
Gasket Sealant
Brake Inspection and Repair (Fig. 3)
1. Carefully scrape gasket material (item 10) from
brake housing and planetary wheel drive mounting sur-
faces.
2. Remove retaining ring (item 9).
3. Remove stationary discs (item 7) and rotating discs
(item 8).
4. Remove extension springs (item 12).
5. Remove pull rod assembly (items 3, 4, 5 and 6).
6. Remove actuator and balls (items 11 and 13).
7. Remove seal (item 2) from brake housing.
8. Wash parts in cleaning solvent. Inspect components
for wear or damage.
9. Reverse steps 2. − 7. to assemble brakes, installing
new parts as necessary. Install a new seal (item 2).
10.Use a new gasket (item 10) and gasket sealant when
installing brake assembly to machine.
