Reelmaster 7000−DPage 4 − 8Kubota Diesel Engine
Fuel System

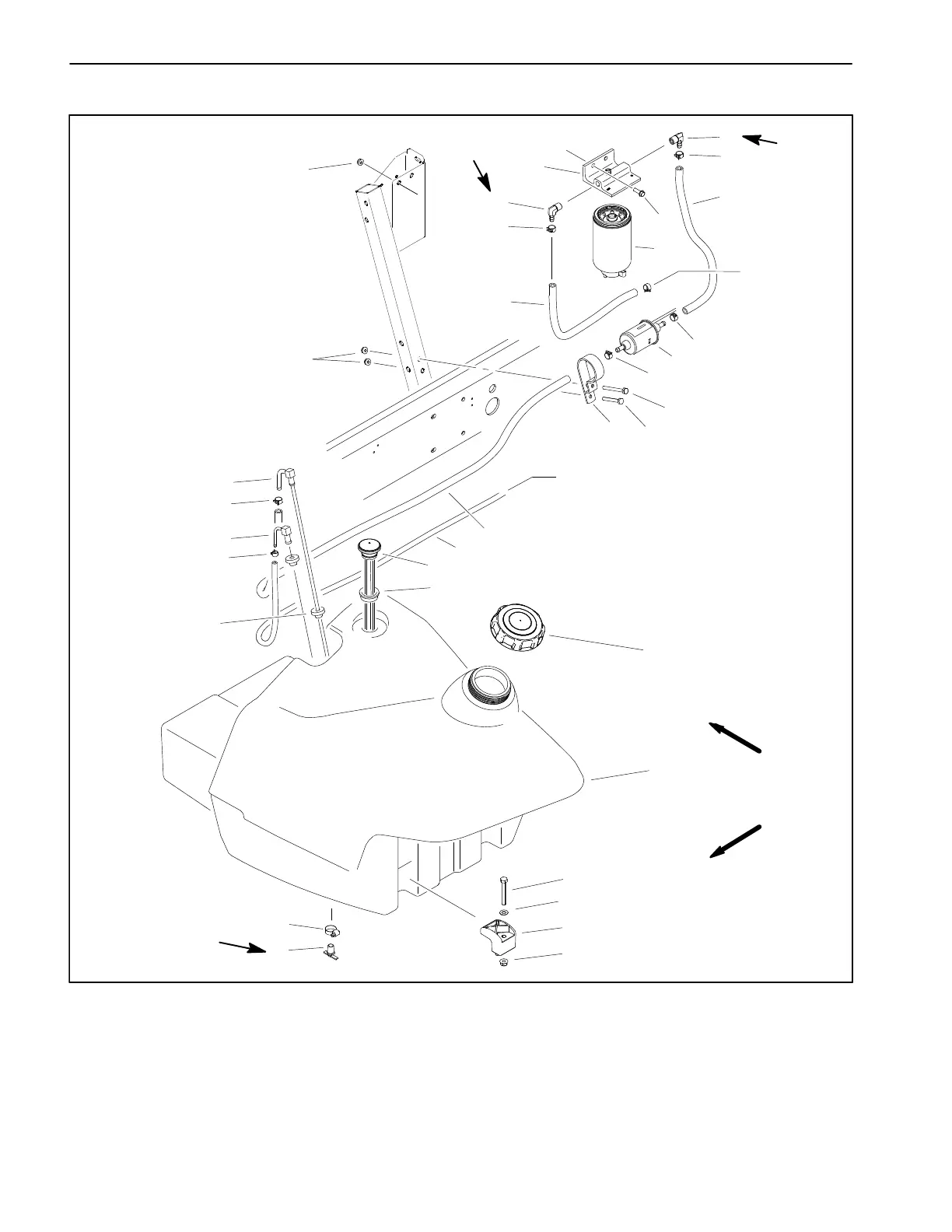

Figure 5
1. Fuel suction tube
2. Fuel line clamp (2)
3. Fuel hose (tank to pump)
4. Return fitting
5. Fuel hose (engine to tank)
6. Fuel tank cap
7. Bushing (2)
8. Hose clamp (6)
9. Fuel tank
10. Cap screw (2)
11. Clamp (2)
12. Flange nut (2)
13. Fuel pump
14. Cap screw
15. Fuel pump bracket
16. Fuel hose (pump to filter)
17. Fuel hose (filter to engine)
18. Cap screw (2)
19. Flange nut (4)
20. Fuel filter/water separator
21. Filter element
22. Elbow fitting (2)
23. Flat washer (2)
24. Fuel gauge
25. Grommet
26. Hose clamp
27. Draincock
28. Cap screw
FRONT
RIGHT
12
23
11
10
26
27
Return From Engine
To Engine
1
2
3
4
5
6
7
8
9
13
14
15
16
17
18
19
20
22
21
28
24
25
22
8
8
8
8
19
Thread
Sealant
Thread
Sealant
Thread
Sealant
