Reelmaster 7000−DPage 4 − 16Kubota Diesel Engine
Engine

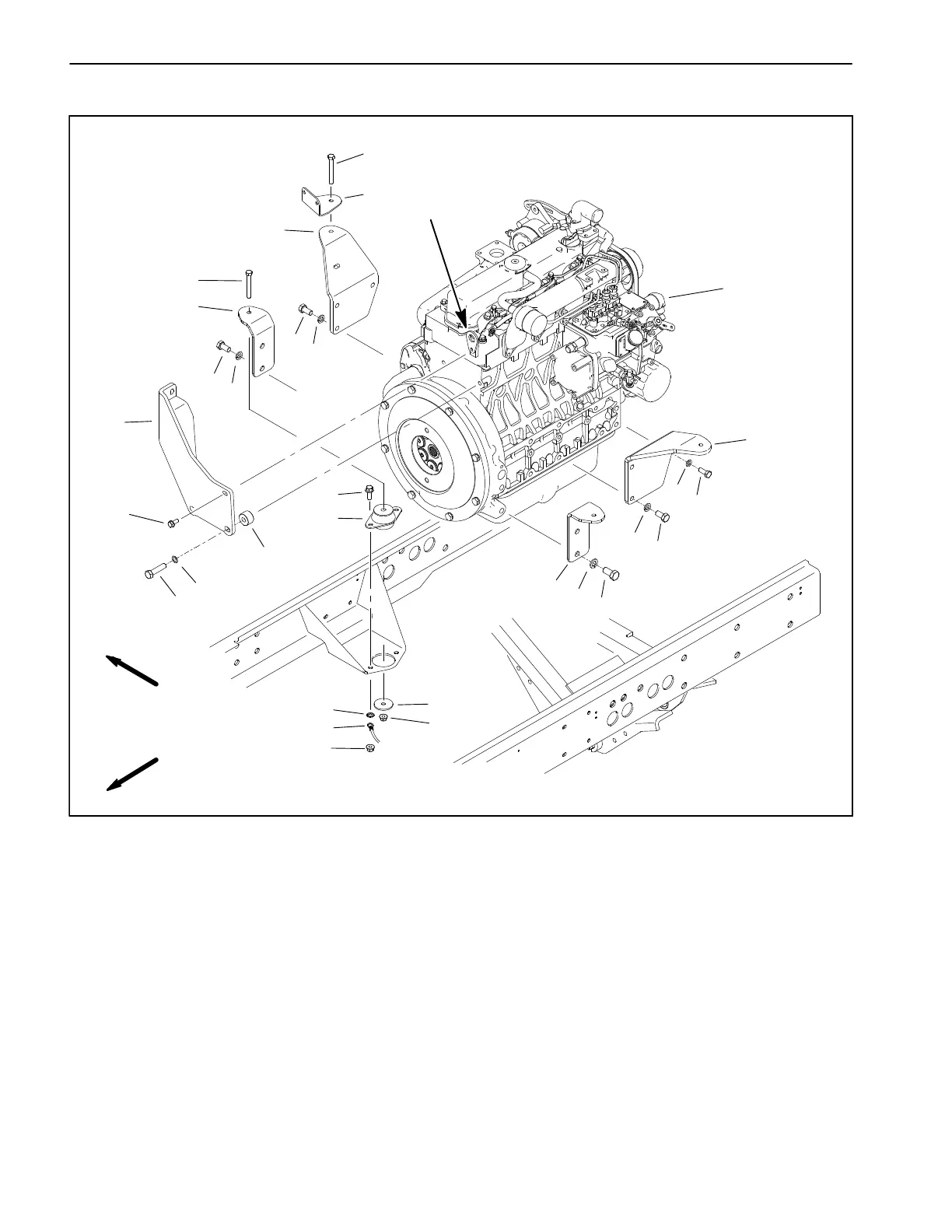

Figure 13
1. Engine
2. Mount bracket − left rear
3. Cap screw (5)
4. Lock washer (5)
5. Mount bracket − left front
6. Lock washer (4)
7. Cap screw (4)
8. Mount bracket − right rear
9. Muffler bracket
10. Cap screw (4)
11. Mount bracket − right front
12. Muffler bracket
13. Flange head screw
14. Cap screw (2)
15. Hardened washer (2)
16. Spacer (2)
17. Flange head screw (8)
18. Rubber engine mount (4)
19. Flange nut (8)
20. Rebound washer (4)
21. Flange nut (4)
22. Lock washer
23. Battery ground cable
24. Lock washer
25. Cap screw
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
3
4
7
6
10
21
22
23
24
25
Rear
Lift
Tab
