Operator Seat Service
1. Backrest cushion
2. Seat cushion
3. LH armrest cover
4. LH armrest
5. Bushing (2)
6. Backrest
7. Plug (2)
8. Cable tie (3)
9. LH adjustment rail
10. Bumper (2)
11. Washer
12. Cap screw (2)
13. Seat
14. Nut
15. Spring (2)
16. Magnet
17. Seat switch
18. Rivet (4)
19. Mounting plate
20. Return spring
21. Torx screw (5)
22. RH adjustment rail
23. Rail stop
24. Torx screw
25. Torx screw (3)
26. Washer (3)
27. Handle
28. RH armrest cover
29. Flange nut
30. Carriage screw
31. Support bracket

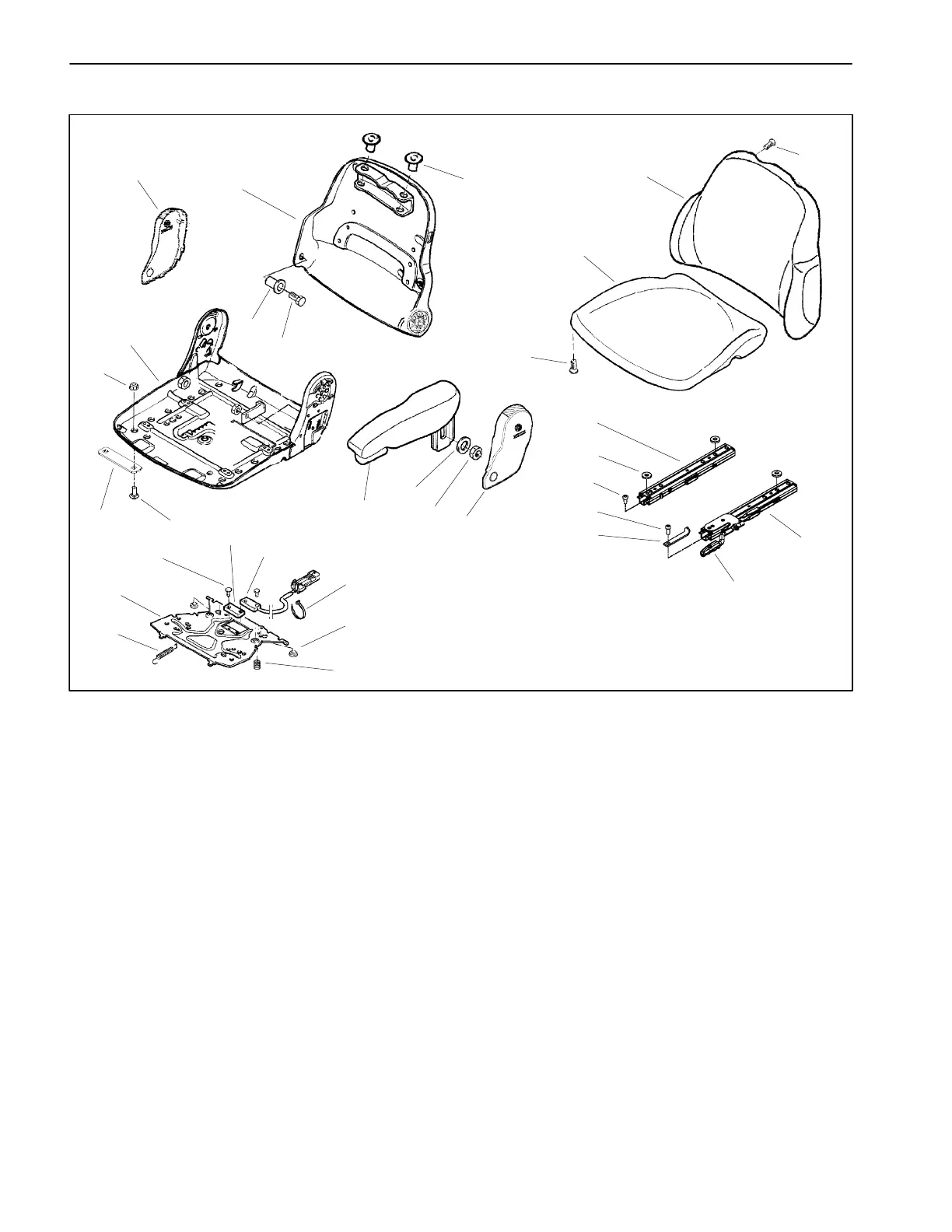

Figure 12
8
10
6
5
7
4
3
2
1
11
14
12
13
15
16
17
18
19
20
21
21
28
9
23
24
25
26
22
27
29
30
31
Disassembly (Fig. 12)
1. Remove seat from machine for service (see Opera-
tor Seat Removal in this chapter).
2. Disassemble operator seat as necessary.
Assembly (Fig. 12)
1. Assemble operator seat.
2. Install seat to machine (see Operator Seat Installa-
tion in this chapter).
