Toro 03721 Service Manual

Reelmaster 7000−D Page 3 − 9 Yanmar Diesel Engine
Service and Repairs
Air Cleaner System

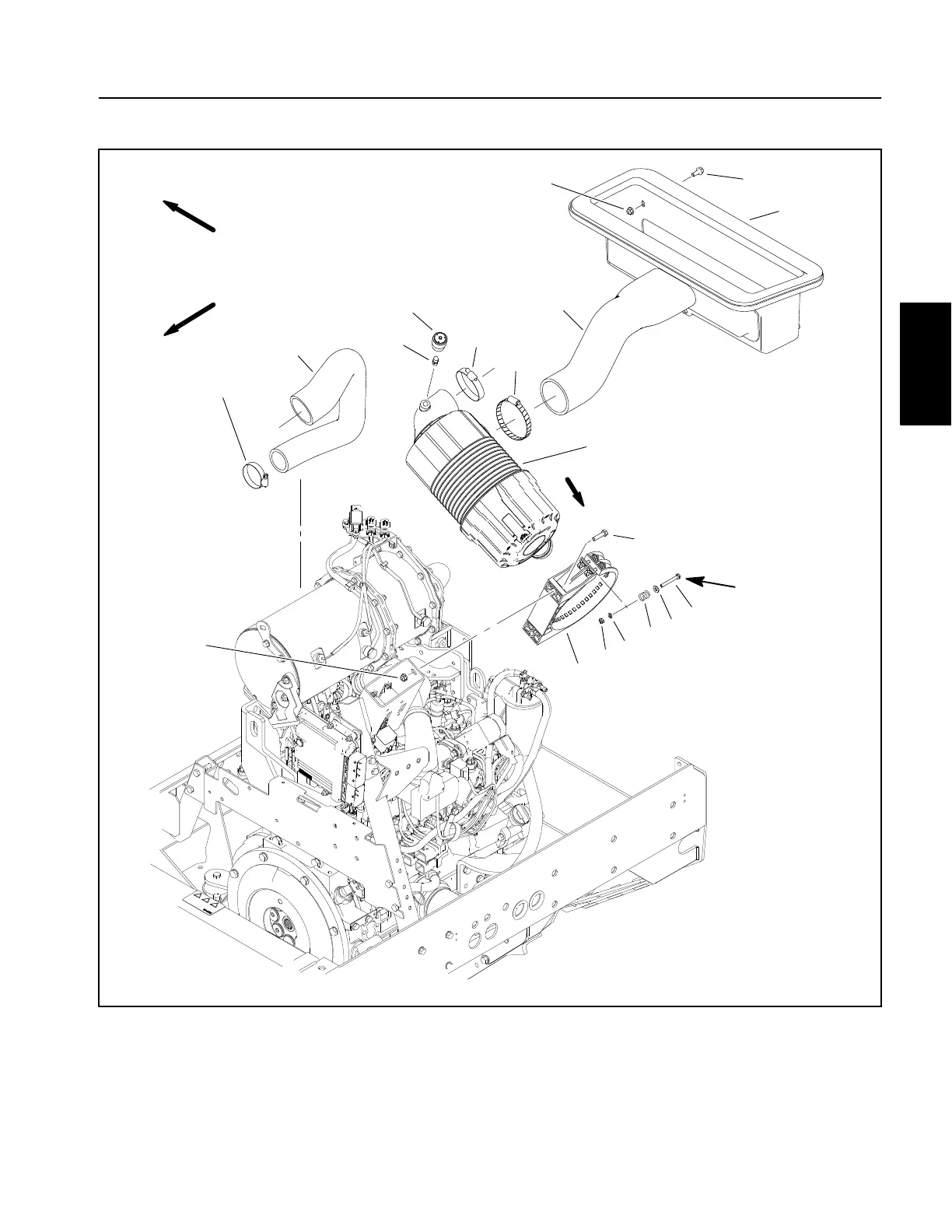

Figure 3
FRONT
RIGHT
1. Air cleaner assembly
2. Adapter
3. Indicator
4. Air cleaner strap
5. Flat washer (2)
6. Flat washer (2)
7. Socket head screw (2)
8. Lock nut (2)
9. Spring (2)
10. Air cleaner outlet hose
11. Hose clamp
12. Hose clamp
13. Air cleaner inlet hose
14. Hose clamp
15. Plenum
16. Flange head screw (4)
17. Flange nut (4)
18. Flange nut (2)
19. Cap screw (2)
16 to 19 in−lb
(1.8 to 2.2 N−m)
VACUATOR
DIRECTION
1
2
3
4
6
7
8
10
11
12
13
14
15
1617
18
19
5
9
Yanmar
Engine
