Toro 03721 Service Manual

Reelmaster 7000−DPage 6 − 8Electrical System
InfoCenter Display
The InfoCenter Display used on your Reelmaster is a
LCD device that is located on the console arm (Fig. 6).
The InfoCenter provides information for machine Oper-
ators, it provides electrical system diagnostic assis-
tance for technicians, and provides access to adjustable
machine settings (Fig. 7).
A CAN−bus system provides communication necessary
for machine operation between the Toro Electronic Con-
troller (TEC), the engine ECU (on machines with Yan-
mar diesel engines), and the InfoCenter.
Use the InfoCenter Display to test TEC inputs and out-
puts when troubleshooting an electrical problem on your
Reelmaster 7000−D (see Using the InfoCenter Display
to Test TEC Inputs and Outputs in this chapter).
NOTE: Icons used by the InfoCenter display are identi-
fied in the traction unit Operator’s Manual.

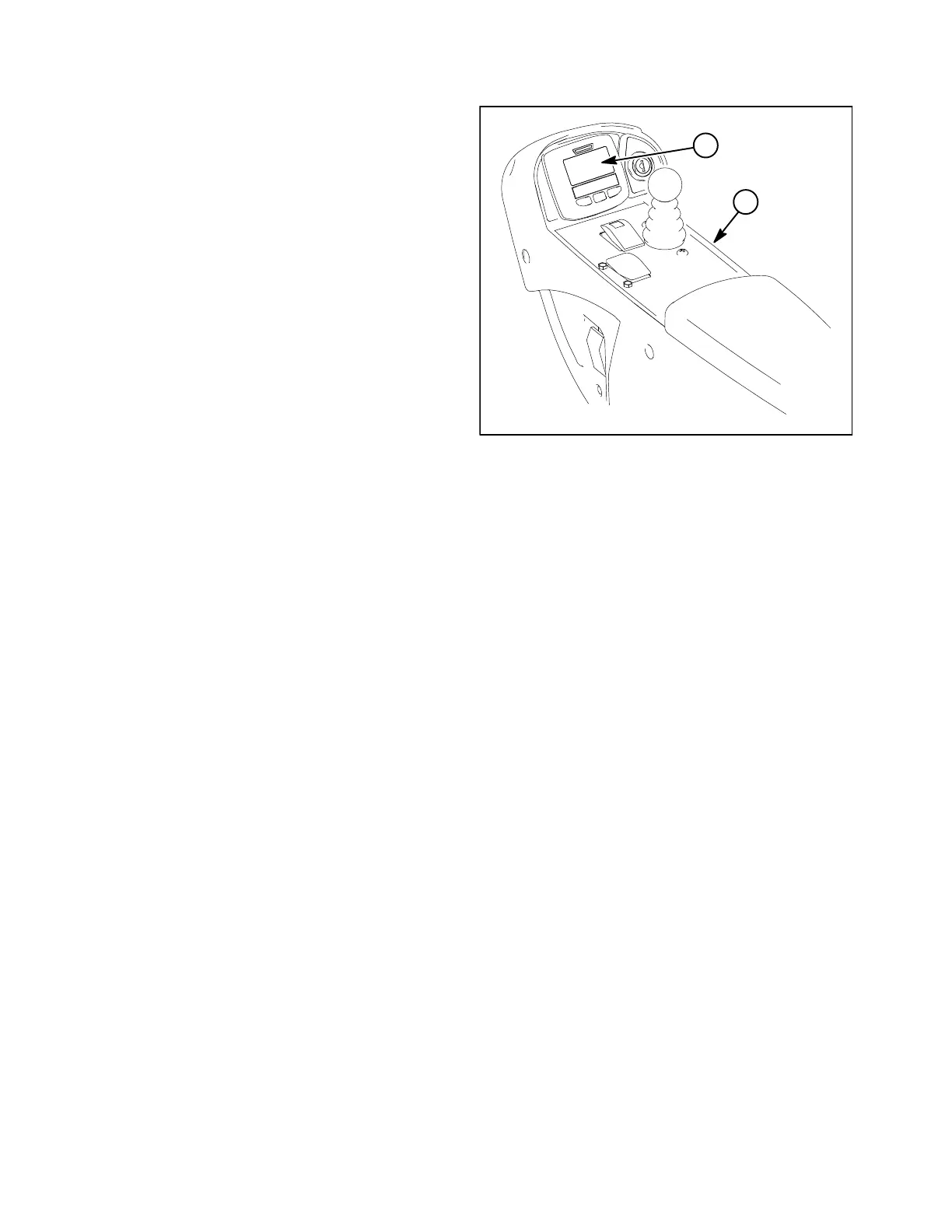

1. Console arm 2. InfoCenter Display
Figure 6
1
2
MODEL 03780 SHOWN

Toro 03721 Specifications

General

Brand	Toro
Model	03721
Category	Lawn Mower
Language	English
