Reelmaster 7000−DPage 4 − 12Kubota Diesel Engine

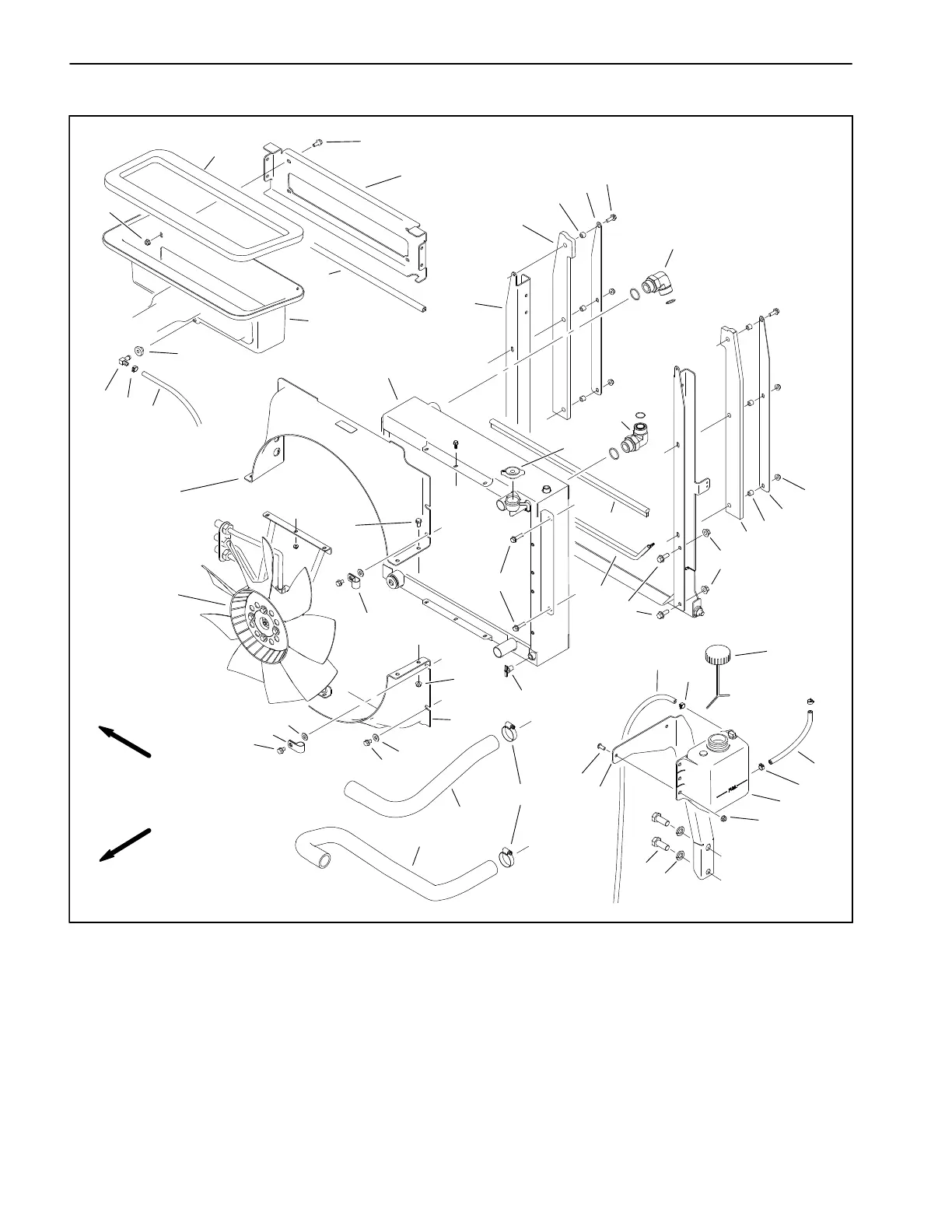

Radiator/Hydraulic Oil Cooler
Figure 9
1. Radiator
2. Fan assembly
3. Upper radiator shroud
4. Lower radiator shroud
5. R−clamp (2)
6. Flat washer (8)
7. Flange head screw (8)
8. Flange nut (4)
9. Flange head screw (4)
10. Hose clamp (4)
11. Upper radiator hose
12. Lower radiator hose
13. Plenum
14. Bulb seal
15. Crossover plate
16. Plenum seal
17. Flange head screw (8)
18. Flange nut (8)
19. Bushing
20. Elbow fitting
21. Hose clamp (4)
22. Hose (plenum drain)
23. Coolant reservoir
24. Reservoir bracket
25. Cap screw (2)
26. Lock washer (2)
27. Flange head screw (2)
28. Flange nut (2)
29. Hose (reservoir to radiator)
30. Reservoir cap
31. Hose clamp
32. Hose (reservoir overflow)
33. Flange head screw (4)
34. Radiator cap
35. Radiator draincock
36. Bulb seal
37. Bulb seal
38. Radiator mount
39. Flange head screw (4)
40. Flange nut (4)
41. Foam seal (2)
42. Spacer (6)
43. Seal bracket (2)
44. Flange nut (4)
45. 90
o
hydraulic fitting (2)
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
5
6
7
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
21
41
42
43
44
45
41
42
43
44
45
