Reelmaster 7000- DHydraulic System Page 5 - 140

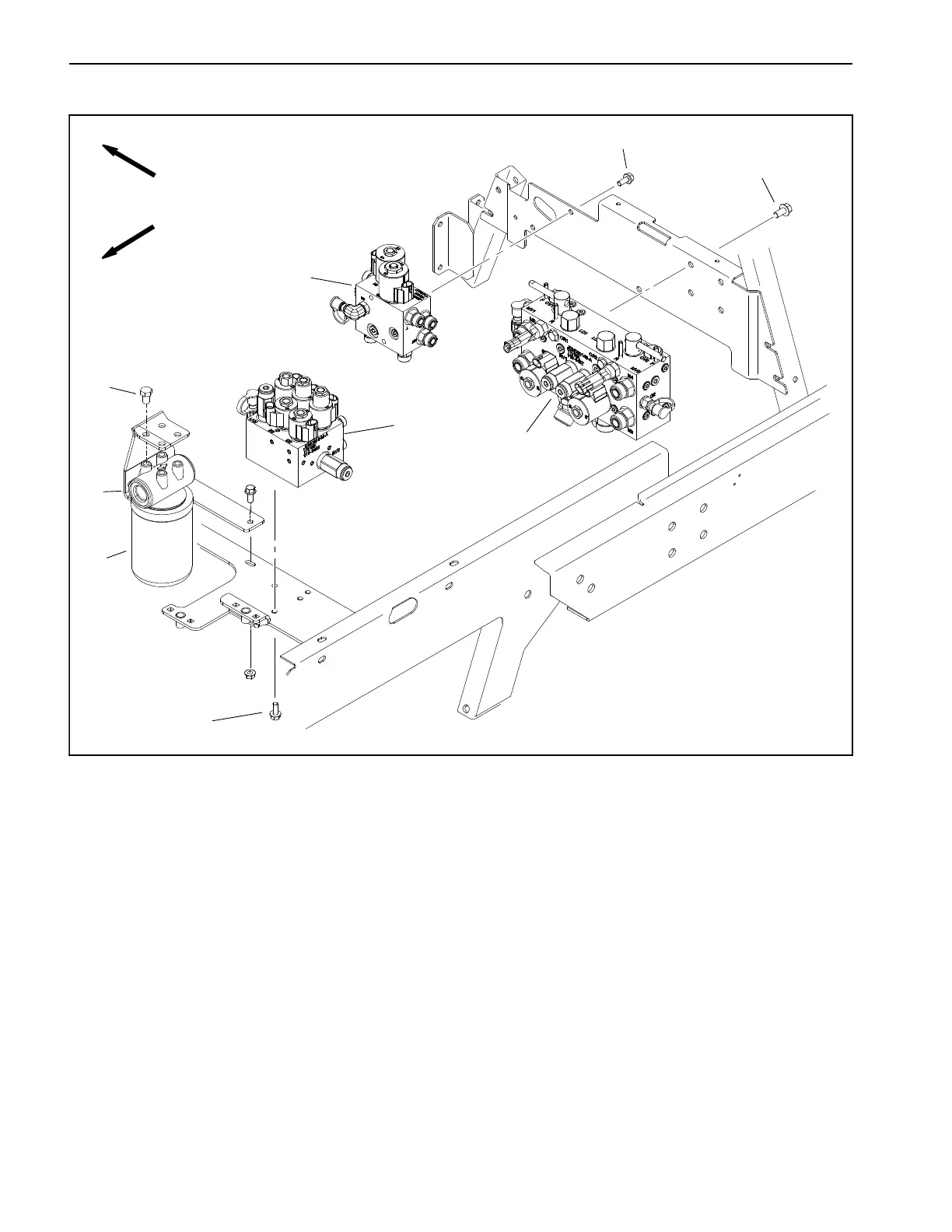

Lift Manifold
FRONT
RIGHT
1. Mow control manifold
2. Flange head screw (4)
3. Fan control manifold
4. Flange head screw (2)
5. Lift manifold
6. Flange head screw (2)
7. Charge filter head
8. Charge filter element
9. Cap screw (4)
Figure 92
7
8
1
3
2
5
4
6
9
NOTE: The ports on the manifold are marked for easy
identification of components. Example: P is the supply
connection port (see Hydraulic Schematic in Chapter 10
- Foldout Drawings to identify the function of the hydrau-
lic lines and cartridge valves at each port).
