Toro 03721 Service Manual

Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 30

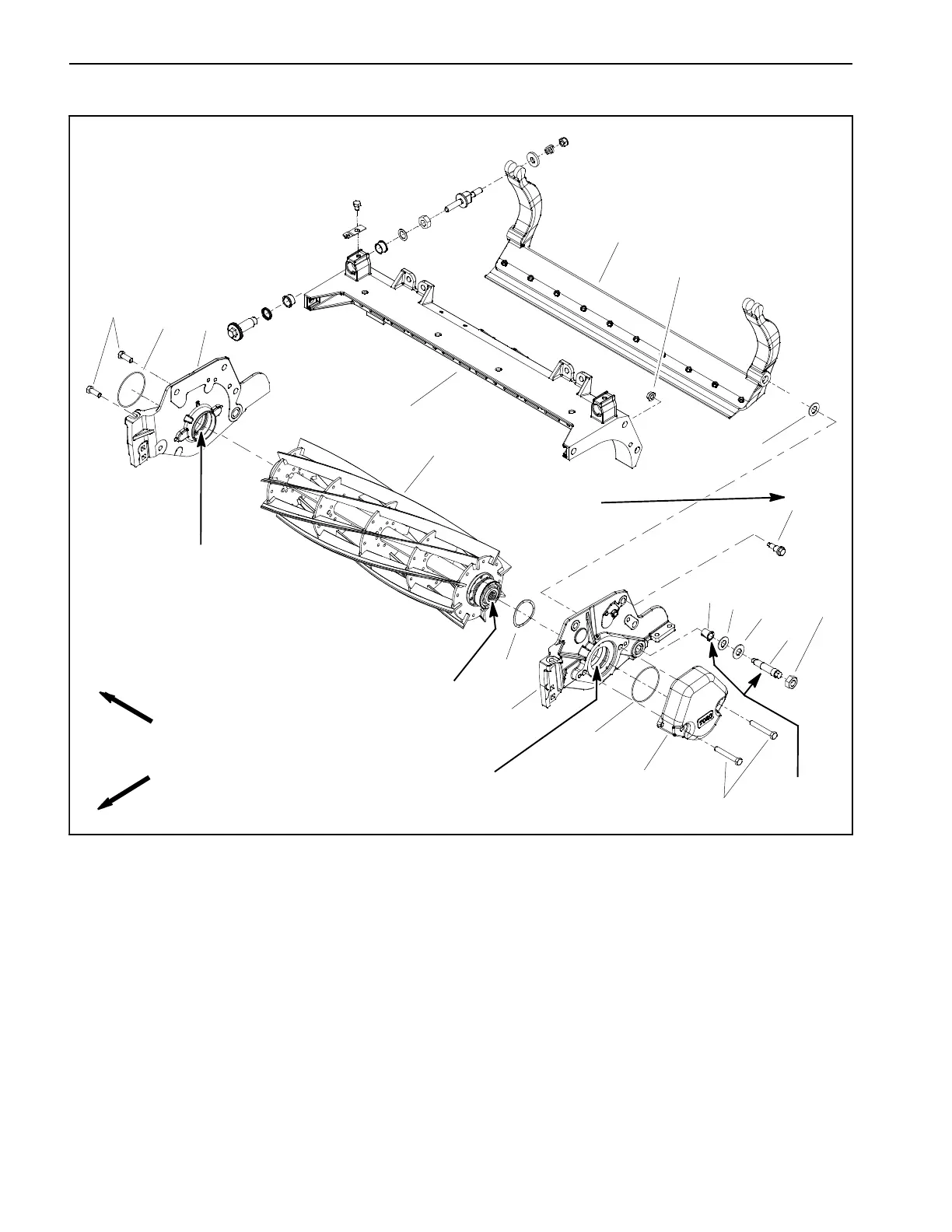

Reel Assembly (cutting units with aluminum side plates)
1. Bedbar assembly
2. Cutting unit frame
3. Flange bushing (2 used)
4. Plastic washer (4 used)
5. Metal washer (2 used)
6. Bedbar pivot bolt (2 used)
7. Lock nut (2 used)
8. RH side plate
9. LH side plate
10. Weight
11. Cap screw (2 used)
12. O--ring
13. Cutting reel assembly
14. Wire spring
15. Flange nut (3 used per side plate)
16. Shoulder bolt (3 used per side plate)
17. Cap screw (2 used)
18. O--ring
Figure 39
Antiseize
Lubricant
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
16
17
18
4
4
27 to 33 ft--lb
(37to44N--m)
Antiseize
Lubricant
Antiseize
Lubricant
(Bearing OD)
(Bearing OD)
Pack
with Grease
(both ends)
15
NOTE: Refer to Reel Assembly Service later in this sec-
tion for information on replacing cutting reel seals and
bearings.
NOTE: Removal of the cutting reel requires removal of
the left side plate from the cutting unit frame. The right
side plate does not have to be removed from the frame.
