Reelmaster 7000- DHydraulic System Page 5 - 136
Fan Control Manifold
FRONT
RIGHT

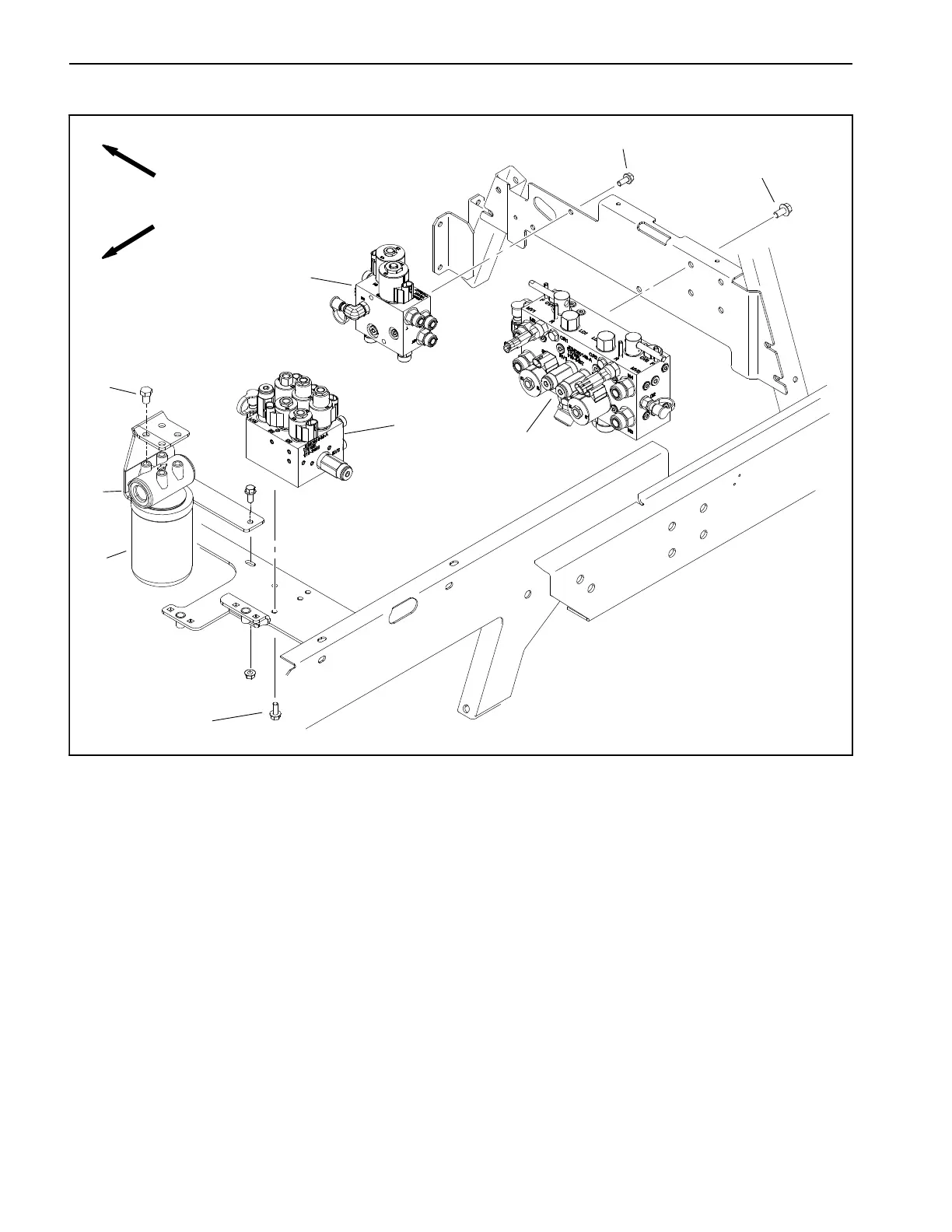

1. Mow control manifold
2. Flange head screw (4)
3. Fan control manifold
4. Flange head screw (2)
5. Lift manifold
6. Flange head screw (2)
7. Charge filter head
8. Charge filter element
9. Cap screw (4)
Figure 89
7
8
1
3
2
5
4
6
9
NOTE: The ports on the manifold are marked for easy
identification of components. Example: P1 is the gear
pump connection port (see Hydraulic Schematic in
Chapter 10 - Foldout Drawings to identify the function
of the hydraulic lines and cartridge valves at each port).
