Reelmaster 7000--DUniversal Groomer (Optional) Page 11 -- 4
Service a nd Repairs

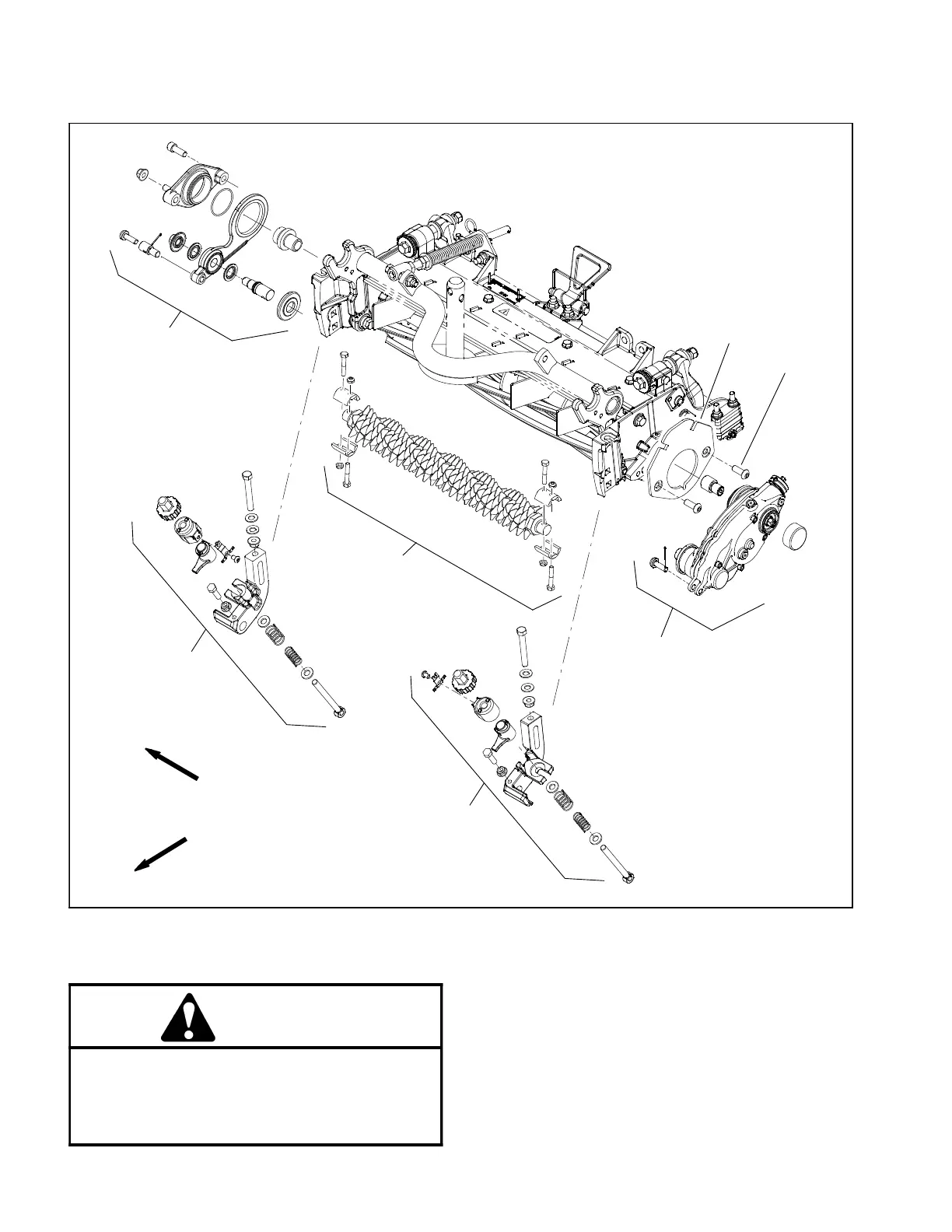

Figure 1
1. Gear box assembly
2. Idler assembly
3. Groomer reel
4. Height adjuster assembly (2)
5. Weight
6. Button head screw (2)
1
2
3
4
4
5
6
FRONT
RIGHT
CAUTION
Never work on the groomer with the engine
running. Always stop the engine, remove t he
key from the ignition switch and wait for all
machine movement to stop before working on
the groomer.
NOTE: The Groomer Operator’s Manual provides in-
formation regarding the installation, set--up, operation
and maintenance of the universal groomer on your
Reelmaster machine. Refer to these instructions for ad-
ditional information when servicing the groomer.
