Toro 03721 Service Manual

Reelmaster 7000−DPage 7 − 22Axles, Planetaries and Brakes

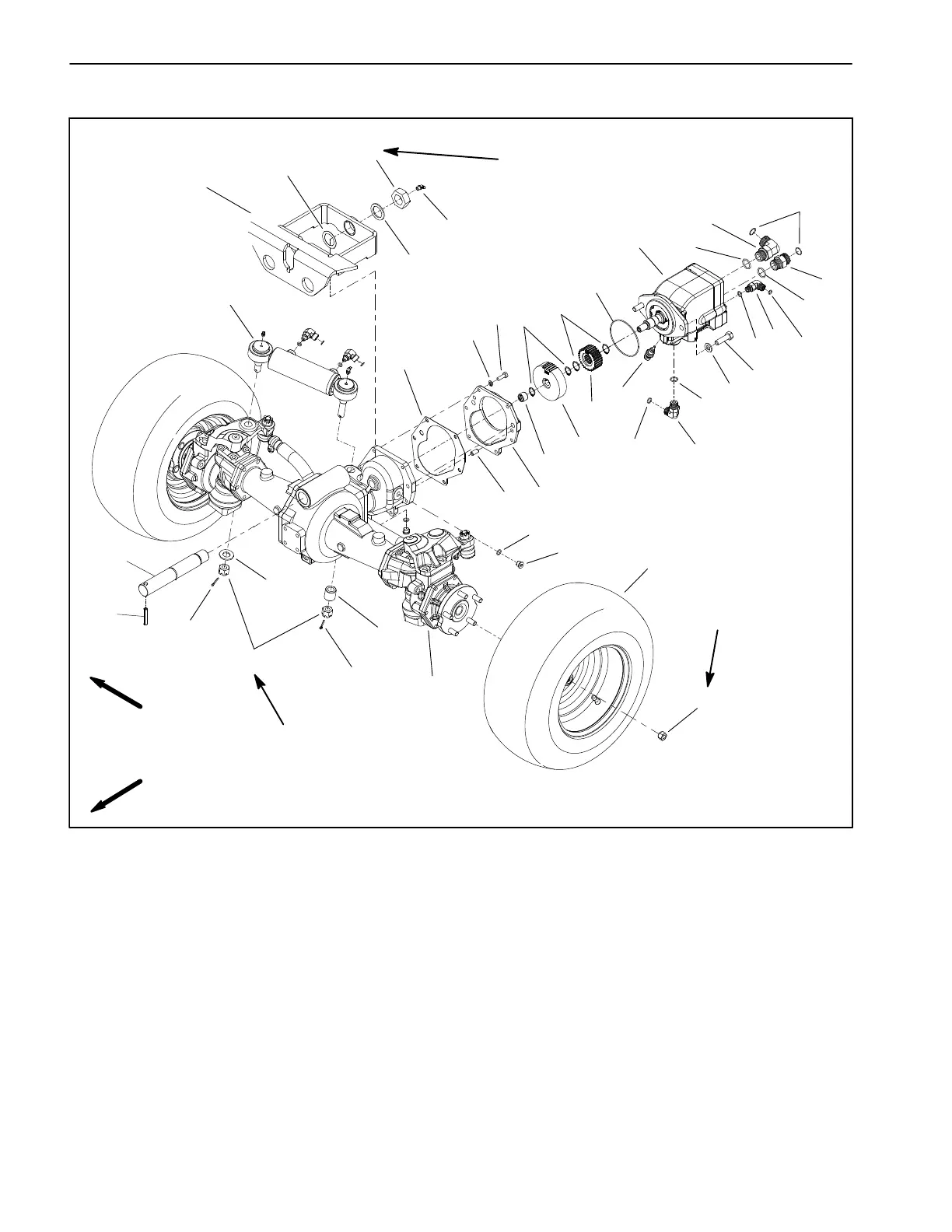

Rear Axle Assembly
Figure 9
FRONT
RIGHT
85 to 100 ft−lb
(116 to 135 N−m)
1. Rear axle motor
2. O−ring
3. Pinion gear
4. External snap ring (2)
5. O−ring
6. Hydraulic fitting
7. O−ring
8. 90
o
hydraulic fitting
9. Cap screw (2)
10. Flat washer (2)
11. O−ring
12. 90
o
hydraulic fitting
13. O−ring
14. O−ring
15. 90
o
hydraulic fitting
16. O−ring
17. Temperature sender with O−ring
18. Gear
19. External snap ring (2)
20. Needle bearing
21. Cap screw (6)
22. Lock washer (6)
23. Cover plate
24. Dowel pin (2)
25. Gasket
26. O−ring
27. Plug
28. Rear wheel assembly
29. Lug nut (5 per wheel)
30. Rear axle assembly
31. Steering cylinder assembly
32. Cotter pin (2)
33. Slotted hex nut (2)
34. Flat washer
35. Spacer
36. Slotted roll pin
37. Rear axle pivot pin
38. Machine frame
39. Lock nut
40. Thrust washer
41. Grease fitting
42. Thrust washer (2)
1
3
4
13
14
2
7
8
9
10
12
5
6
11
7
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
32
36
37
38
39
40
41
42
85 to 100 ft−lb
(116 to 135 N−m)
60 to 70 ft−lb
(81 to 94 N−m)
