Reelmaster 7000−DPage 6 − 62Electrical System
Worklight Switch
The worklight switch is located on the operator side of
the console arm (Fig. 69). This two (2) position rocker
switch allows the worklights to be turned ON and OFF.
Testing
1. Park machine on a level surface, lower cutting units,
engage parking brake and stop engine. Remove key
from ignition switch.
2. Disassemble console arm to gain access to the
worklight switch (see Console Arm in Chapter 8 − Chas-
sis in this manual).
3. Disconnect harness electrical connector from the
switch.
4. With the use of a multimeter (ohms setting), the
switch functions may be tested to determine whether
continuity exists between the various terminals for each
switch position. The switch terminals are marked as
shown in Figure 70. Verify continuity between switch ter-
minals. Replace worklight switch if testing identifies a
faulty switch.
5. If headlight switch tests correctly and circuit problem
still exists, check wire harness (see Electrical Schemat-
ics and Wire Harness Drawings in Chapter 10 − Foldout
Drawings).
6. After testing is completed, connect wire harness
connector to the worklight switch.
7. Assemble console arm (see Console Arm in Chapter
8 − Chassis in this manual).

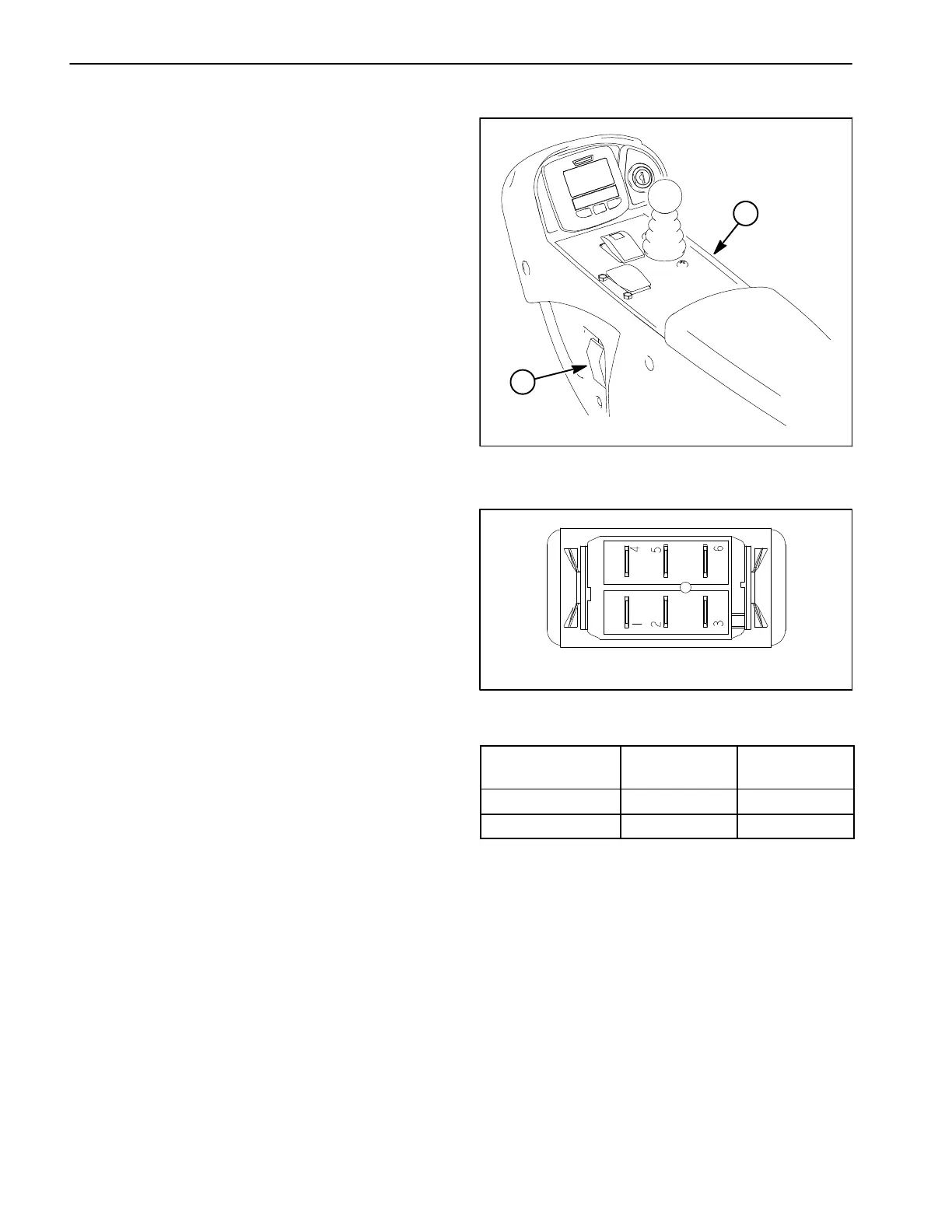

1. Console arm 2. Worklight switch
Figure 69
1
2
MODEL 03780 SHOWN
Figure 70
BACK OF SWITCH
SWITCH
POSITION
CIRCUIT 1 CIRCUIT 2
ON 2 + 3 5 + 6
OFF 2 + 1 5 + 4
NOTE: Headlight switch terminals 1, 4, 5 and 6 are not
used on Reelmaster 7000−D machines.
