Toro 03721 Service Manual

Reelmaster 7000- DHydraulic System Page 5 - 128

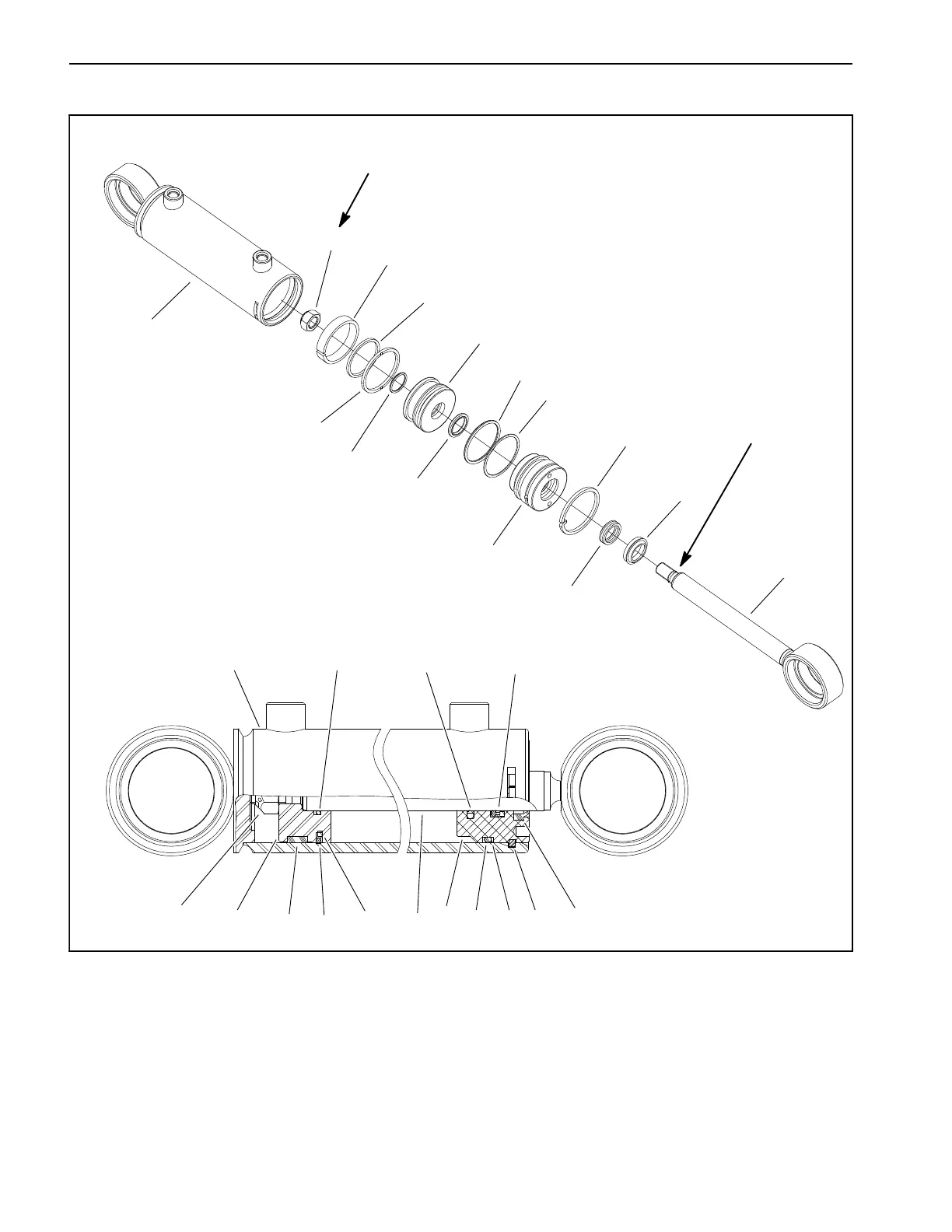

Steering Cylinder Service
1. Barrel
2. Lock nut
3. W ear band
4. Square ring
5. Piston seal
6. O- ring
7. Piston
8. Buffer seal
9. O- ring
10. Back- up ring
11. Head
12. Retaining ring
13. Head seal
14. Wiper
15. Rod assembly
Figure 84
40 ft- lb
(54 N- m)
Loctite #271
2
3
6
8
9
10
11
13
1
5
7
12
14
15
4
2
3
6
8
9
10
11
13
1
5
7
12
14
15
4
