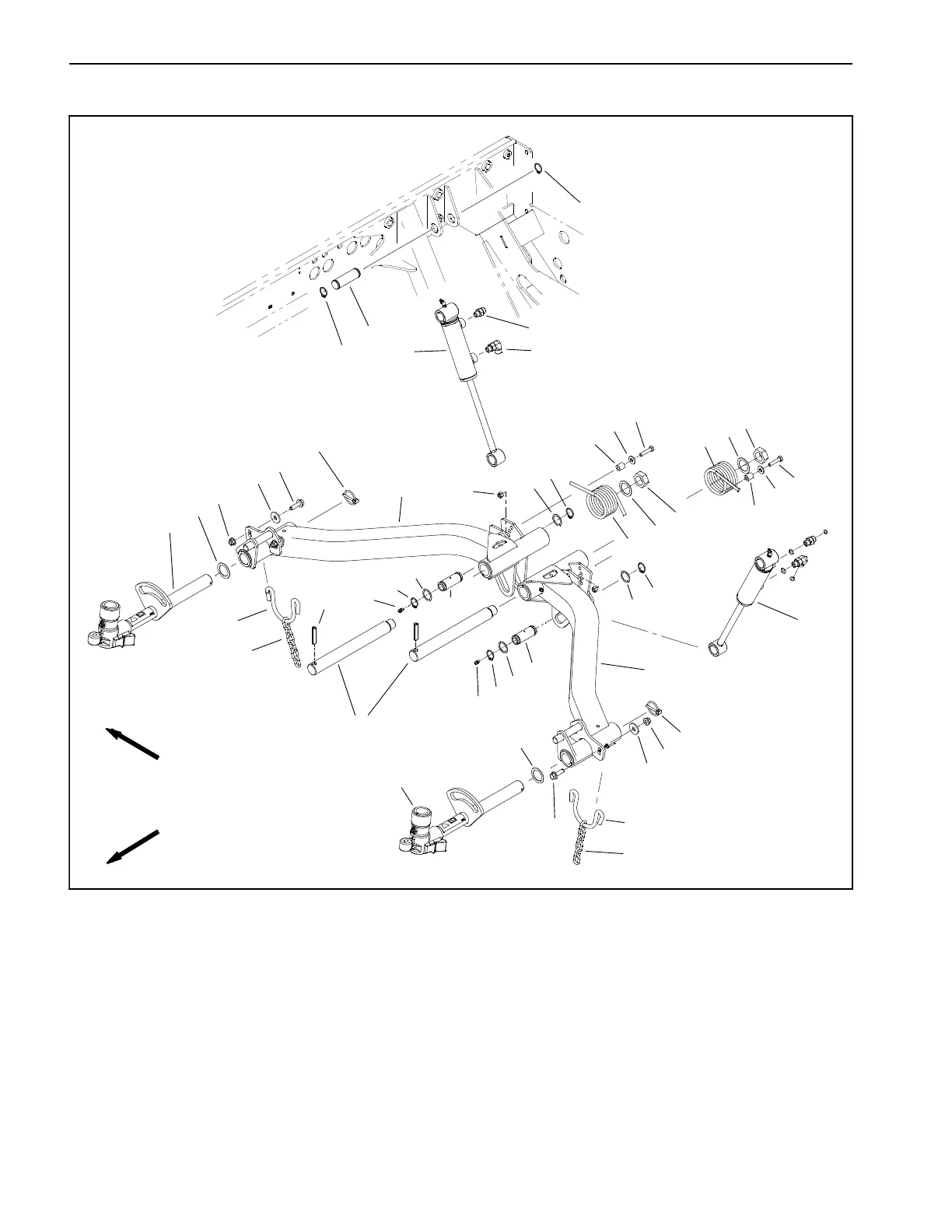

Reelmaster 7000- DHydraulic System Page 5 - 148
Rear Lift Cylinders
1. Lift cylinder (cutting units #2 and #3)
2. Straight hydraulic fitting (2)
3. 90
o
hydraulic fitting (2)
4. Retaining ring (2 per pin)
5. Cylinder pin (2)
6. Pivot yoke assembly (2)
7. Thrust washer (4)
8. Lift arm (cutting unit #2)
9. Lift arm (cutting unit #3)
10. Lynch pin (2)
11. Flange nut (2)
12. Flat washer (2)
13. Flange head screw (2)
14. Chain hoop (2)
15. Lift chain (2)
16. Cylinder pin (2)
17. Thrust washer (4)
18. Grease fitting (2)
19. Pivot pin (2)
20. Slotted roll pin (2)
21. RH torsion spring
22. LH torsion spring
23. Lock nut (2)
24. Spacer (2)
25. Flat washer (2)
26. Cap screw (2)
27. Lock nut (2)
Figure 98
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
4
6
7
10
11
12
13
14
15
16
17
4
4
18
17
17
4
4
21
7
23
24
25
26
22
7
23
24
25
26
27
