Toro 03721 Service Manual

Reelmaster 7000−DPage 7 − 6Axles, Planetaries and Brakes
Service and Repairs

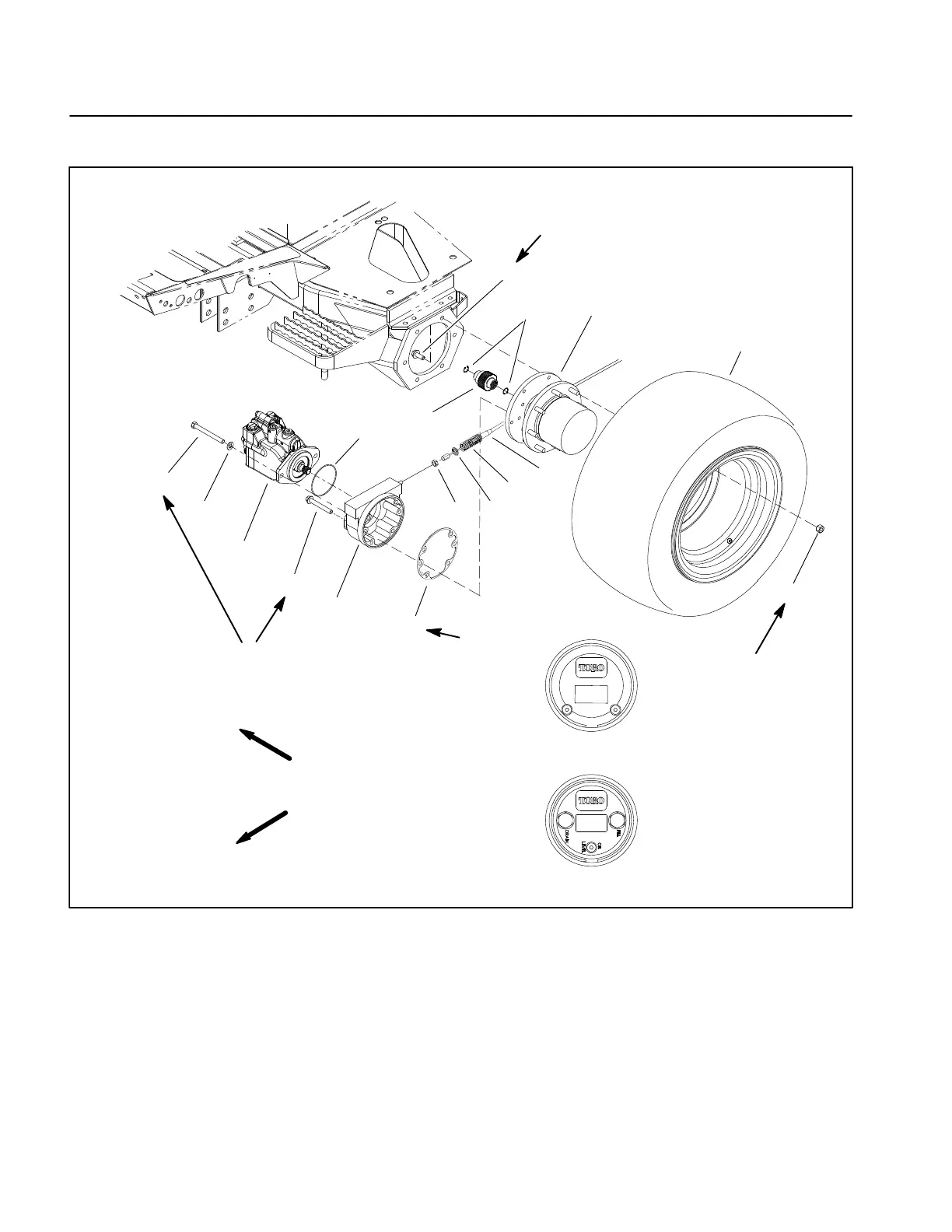

Brake Assembly
1. Flange head screw (6 per planetary)
2. Splined brake shaft
3. Planetary assembly (2)
4. Front wheel assembly (2)
5. Lug nut (8 per wheel)
6. Retaining ring
7. Spring plate
8. Compression spring
9. Jam nut
10. Brake assembly (LH shown)
11. Flange head screw (4 per brake)
12. Gasket
13. Piston motor (2)
14. Flat washer (2 per motor)
15. Cap screw (2 per motor)
16. Brake cable (LH shown)
Figure 1
85 to 100 ft−lb
(116 to 135 N−m)
1
2
3
4
5
6
7
8
9
10
11
13
14
15
17
12
16
OPH−2 series planetary = 60 ft−lbs (81 N−m)
VA02 series planetary = 75 to 85 ft−lbs (101 to 115 N−m)
OPH−2 series planetary = 60 ft−lbs (81 N−m)
VA02 series planetary = 75 to 85 ft−lbs (101 to 115 N−m)
OPH−2 series planetary
VA02 series planetary
FRONT
RIGHT
Gasket
Sealer
