Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 4

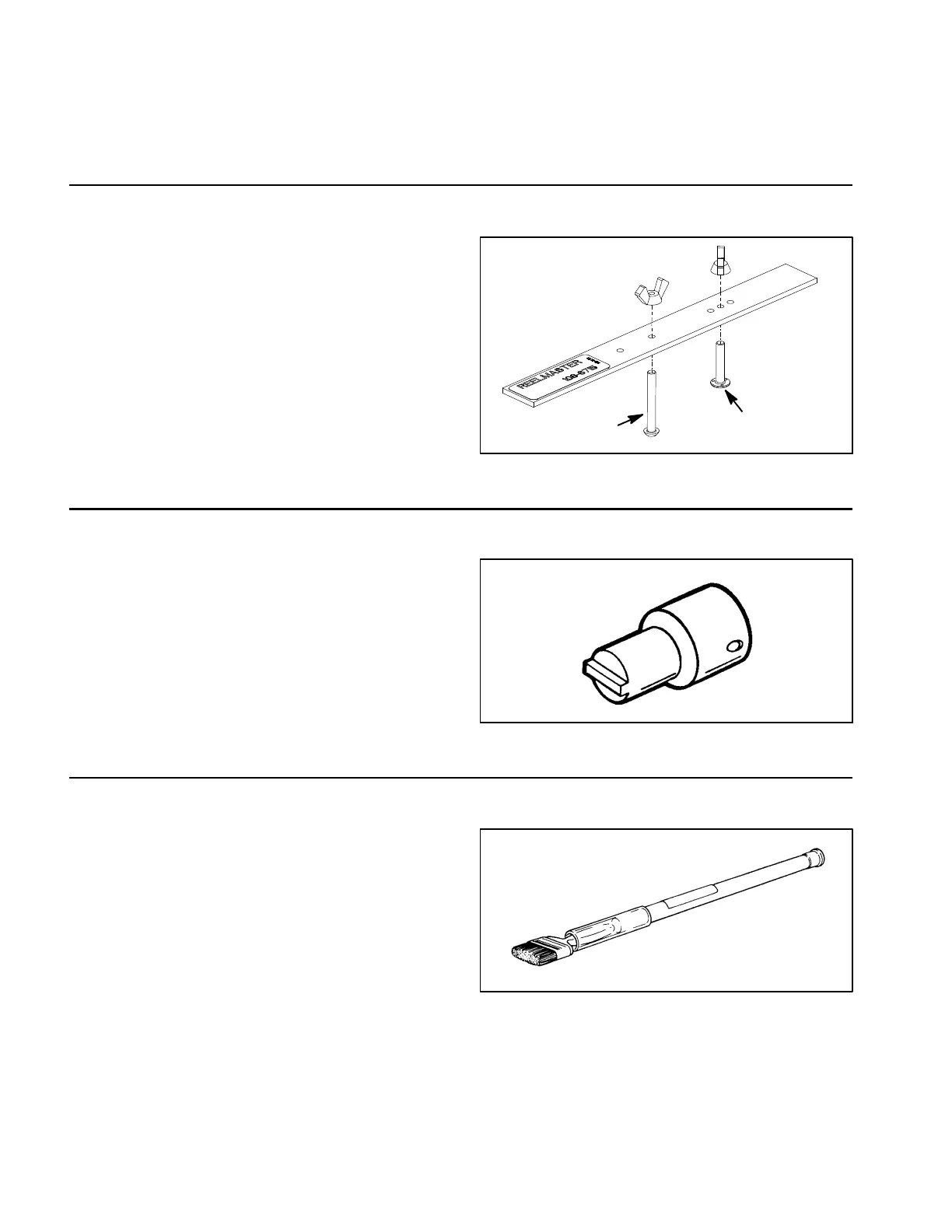

Special Tools
Special tools are available from your Toro Distributor.
Some tools may have been supplied with your machine
or are available as TORO parts.
Gauge Bar Assembly
Toro Part Number: 108--6715
Use gauge bar to verify height--of-- cut adjustment.
Figure 2
Used for Height--of--
Cut (HOC) adjustment
Used for Height--of--
Groomer (HOG) adjustment
Bedknife Screw Tool
Toro Part Number: TOR510880
This screwdriver--type bit is made to fit Toro bedknife at-
taching screws. Use this bit with a torque wrench to se-
cure the bedknife to the bedbar.
IMPORTANT: To prevent damage to the bedbar, DO
NOT use an air or manual impact wrench with this
tool.
Figure 3
Handle Assembly
Toro Part Number: 29--9100
For applying lapping compound to cutting units while
keeping hands a safe distance from the rotating reel.
Figure 4
