Toro 03721 Service Manual

Reelmaster 7000−DPage 4 − 4Kubota Diesel Engine
Service and Repairs
Air Filter System

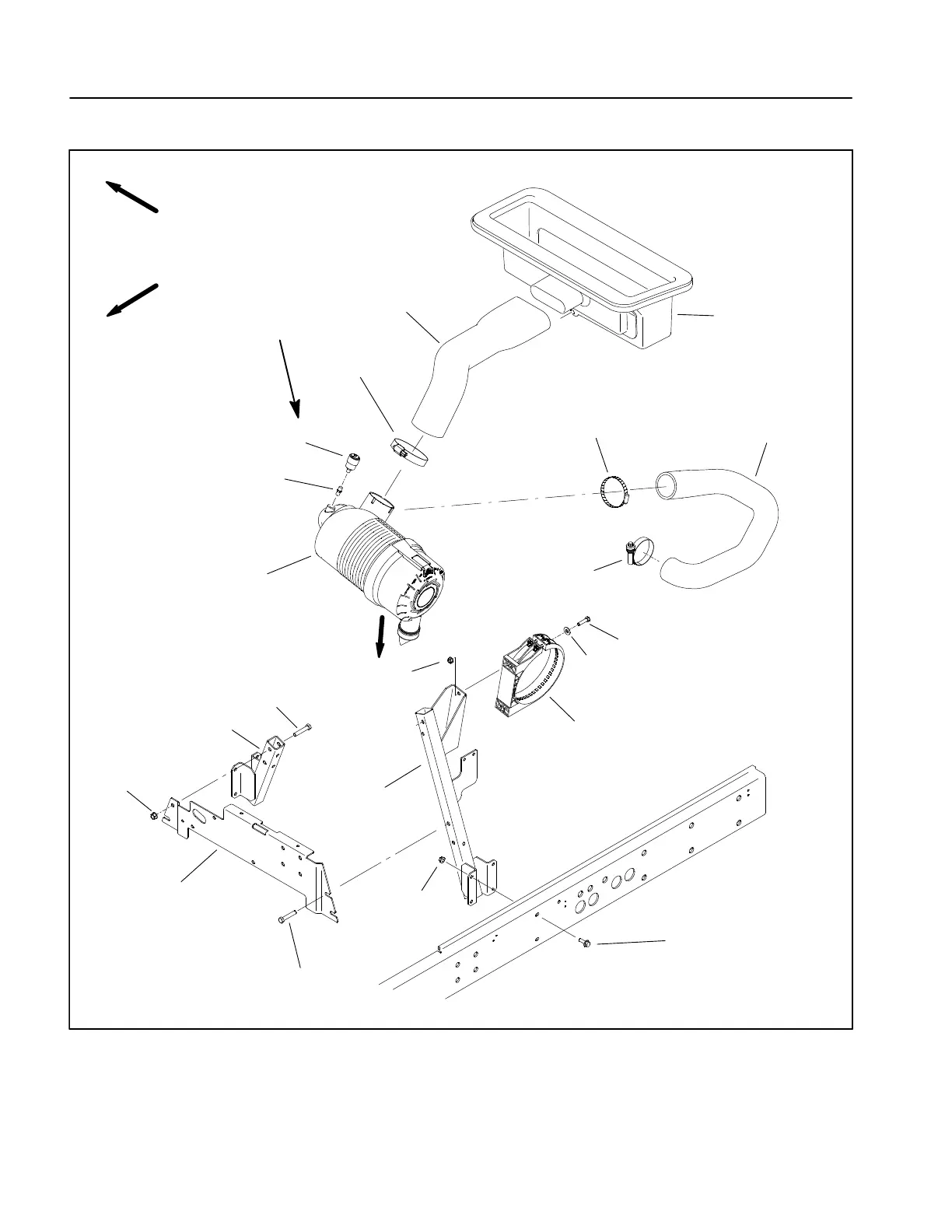

Figure 1
1. Battery support
2. Bracket
3. Flange head screw (8)
4. Flange nut (8)
5. Support bracket
6. Cap screw (4)
7. Flange nut (4)
8. Air cleaner strap
9. Cap screw (2)
10. Air cleaner assembly
11. Service indicator
12. Hose clamp
13. Hose clamp
14. Flat washer (2)
15. Flange nut (2)
16. Adapter
17. Air cleaner hose
18. Plenum
19. Air intake hose
FRONT
RIGHT
12 to 15 in−lb
(1.4 to 1.6 N−m)
1
2
3
4
9
10
11
12
13
14
5
6
7
8
16
6
15
17
18
19
12
Vacuator
Direction
