Uponor Smatrix Wave PLUS User Manual

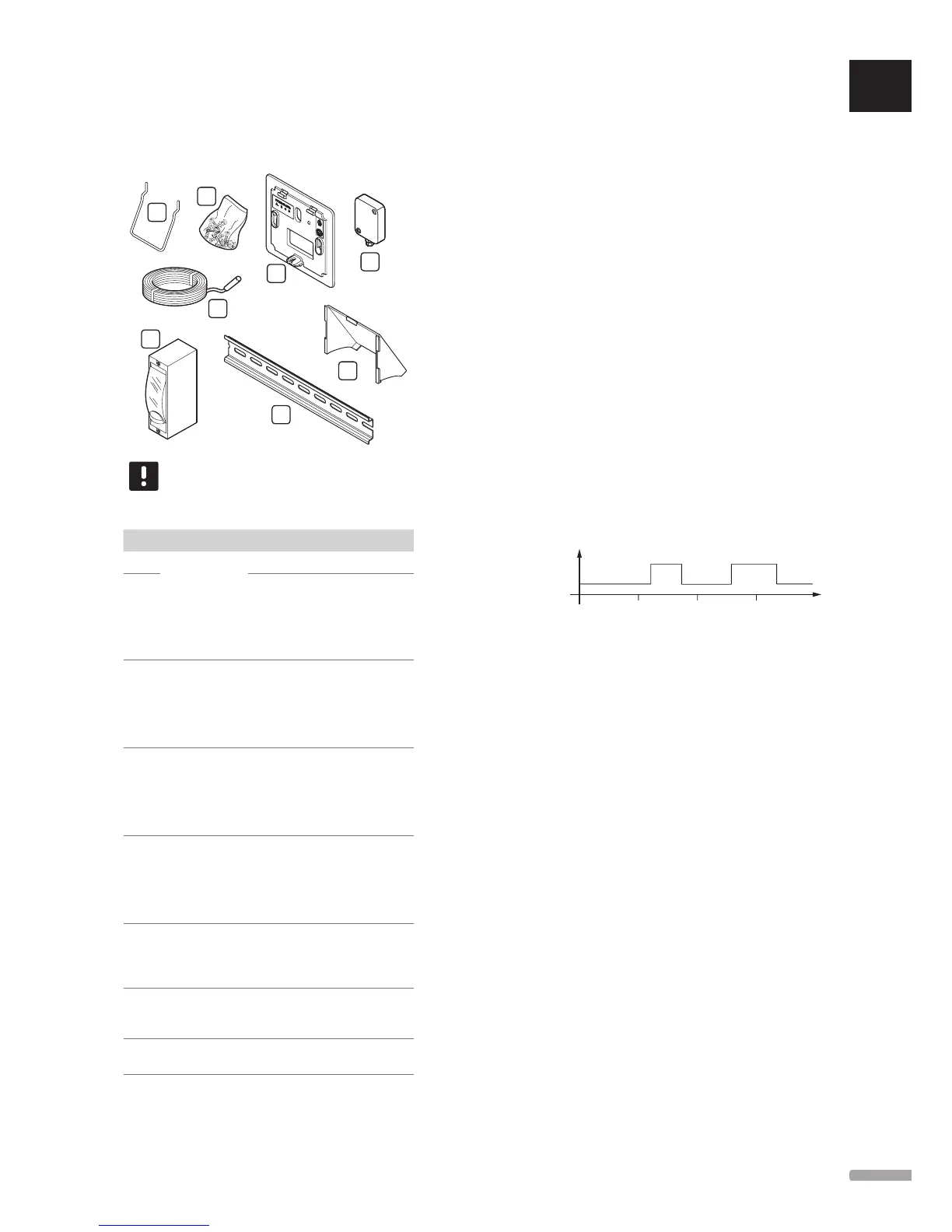

3.4 Accessories
Uponor offers a wide variety of accessories for use with
the standard portfolio.
G
B
A
F
E
C
D
H
NOTE!
Some of these accessories may be included in
the system.
Item Component Description
A Attachment
options for
thermostats
T-163, T-165,
T-166, T-167,
T-168 and timer
I-163
Table stand
B Screws
C Uponor Smatrix
Wallframe T-X
A-1XX
(wallframe T-X
A-1)
Wall frame for covering larger
area of the wall than original
back plate. Used at installation of
thermostats T-163, T-165, T-166,
T-167, T-168 and timer I-163
D Uponor Smatrix
Sensor Outdoor
S-113
(outdoor sensor
S-113)
Outdoor sensor for use with
thermostats T-163, T-167 and
T-168
E Uponor Smatrix
Sensor Floor/
Remote S-114
(floor/remote
sensor S-114)
Floor/remote sensor for use with
thermostats T-163, T-166, T-167
and T-168
F Uponor Heating/
Cooling relay
Relay for connecting external
voltage signal from a heating/
cooling source, such as a heat
pump, to a controller input.
G DIN rail DIN rail for use with Uponor
Smatrix Wave/Wave PLUS
controllers
H Table stand for
interface I-167
Table stand for use with interface
I-167
3.5 Functions
Uponor Smatrix Wave/Wave PLUS is used to control an
underfloor heating and/or cooling system in a house.
The thermostats registered to the controller is used to
control the actuators mounted on top of the manifold
valves.
As soon as the temperature measured at a thermostat
is lower (heating mode) or higher (cooling mode) than
the setpoint temperature, a demand to change the
room temperature is created and sent to the controller.
The controller will operate the actuators according to
current control mode and settings. This will manage the
flow to the floor loops in the room and adjust the room
temperature. Once the set temperature is reached, this
information is sent to the controller and the demand is
met.
Comfort and ECO modes
If a timer is connected to the controller, it is possible to
regulate the temperature setpoint modes between three
different temperatures. Available modes is Comfort,
ECO (economy), and Holiday. See example of Comfort
and ECO mode below.
0 h 00 24 h 0018 h 0012 h 006 h 00
Comfort
ECO
Heating timer 1
night morning afternoon night
The diagram shows that the system delivers heating in
comfort mode in the morning and afternoon, but the
system enters ECO mode during night and in the middle
of the day, when the house normally is empty.
Autobalancing
The Uponor Smatrix Wave/Wave PLUS controller can
operate the actuator outputs by either on/off signals or
by Autobalancing, using pulse width modulation (PWM)
signals.
Autobalancing is a function where the system calculates
the actual energy need of single rooms and adapts the
output power of each loop to its length. This means a
short loop might get 20% on time while a long loop
might get about 60%.
The automatic balancing continues through the seasons
and throughout the household’s changing lifestyle and
usage patterns, removing the need of manual balancing.
This gives more even floor temperatures and faster
system reaction times with lower energy consumption
than any standard on/off system.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
15
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
