8 Install Uponor Smatrix Wave PLUS interface
The following interfaces can be connected to the
system:
• Uponor Smatrix Wave PLUS Interface I-167
Up to four controllers can be registered and controlled
by the interface.

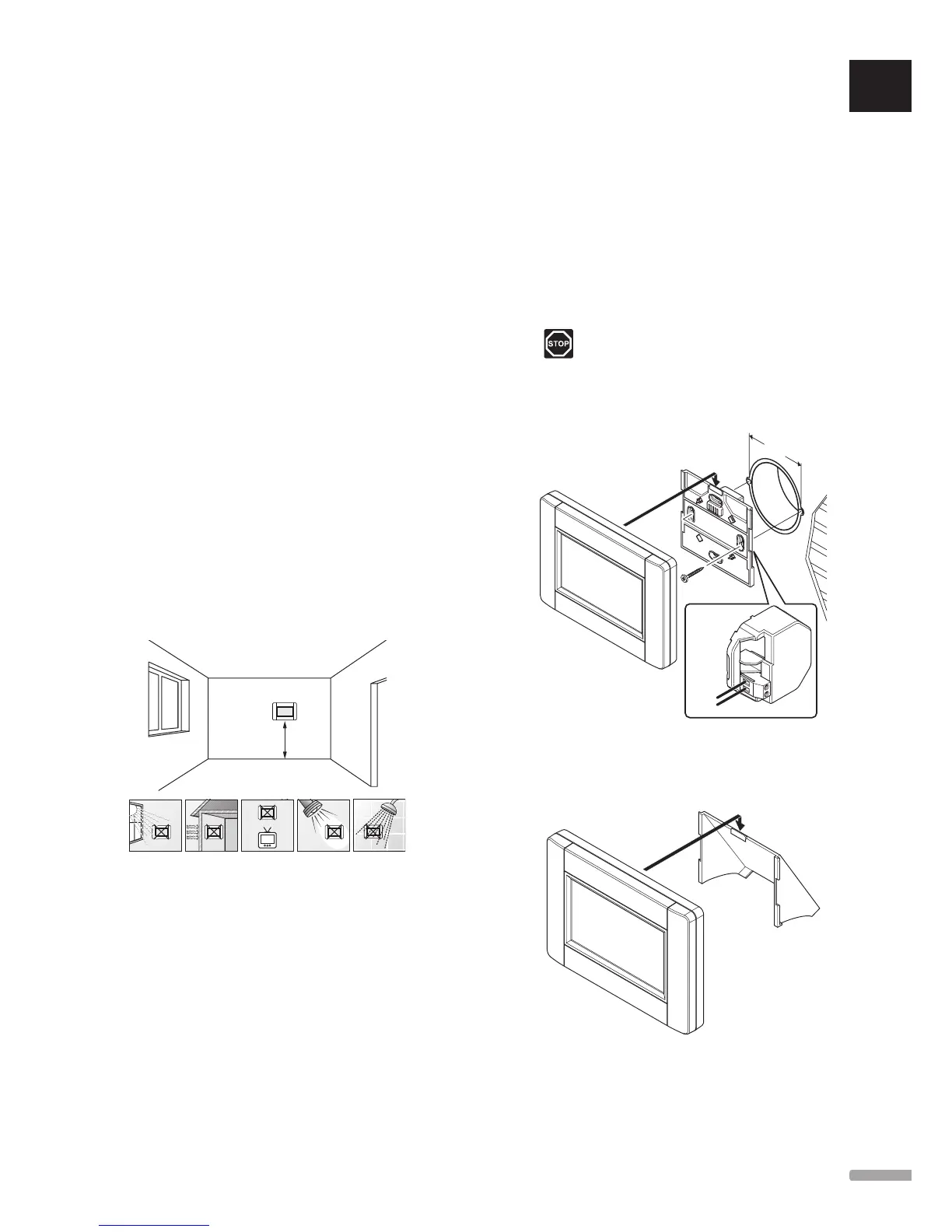

8.1 Placement of interface
Refer to the installation preparation guidelines (see
section 4.2 Prepare for installation), and use the
following guidelines when positioning the interface:
1. Select an indoor wall and a position 1.5 m to 1.8 m
above the floor.
2. Ensure that the interface is away from direct solar
radiation.
3. Ensure that the interface will not be heated through
the wall from sunshine.
4. Ensure that the interface is away from any source
of heat, for example television set, electronic
equipment, fireplace, spotlights, and so on.
5. Ensure that the interface is away from any source of
humidity and water splashes (IP20).
1.5–1.8 m
8.2 Attach the interface to the wall
Using wall bracket (recommended)
The illustration below shows mounting hole positions on
the wall bracket, how to attach the interface, and how
to connect power.
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
60 mm
N
L
8.3 Attach to table stand
The illustration below shows how to attach the interface
to a table stand.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
47
UPONOR SMATRIX WAVE/WAVE PLUS
· INSTALLATION AND OPERATION MANUAL
