Uponor Smatrix Wave PLUS User Manual

Two types of thermostats, both analogue and digital,
can be used in an Uponor Smatrix Wave/Wave PLUS
system.
Analogue thermostats:
• Uponor Smatrix Wave Thermostat Standard T-165
• Uponor Smatrix Wave Thermostat Public T-163
The analogue thermostats are controlled by either
turning a dial (T-165) or adjusting a potentiometer on
its back (T-163).

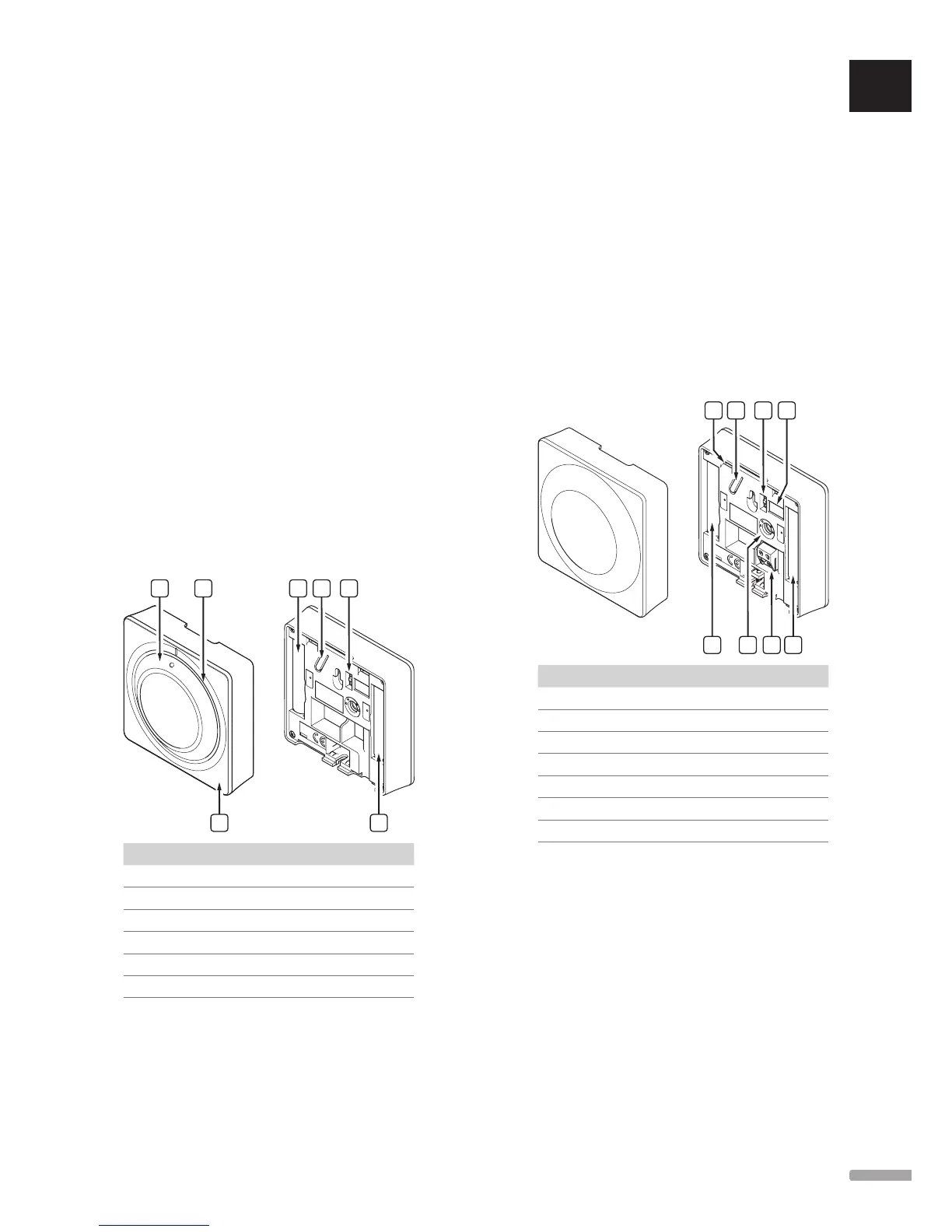

11.1 Thermostat layout
Standard thermostat T-165
During normal operation a discreet LED on the
thermostat is lit for about 60 seconds if there is a
demand for heating or cooling.
The illustration below shows the parts of the
thermostat.
A C F D E
FB
Item Description
A Room temperature setpoint dial control
B Heating/cooling demand LED
C Backlight
D Registration button
E Disable timer switch
F Batteries
Public thermostat T-163
The thermostat contains a switch that sends an alarm
when the thermostat is removed from the wall. The
alarm is transmitted by radio, causing both the power
LED and related channel LED on the controller to flash.
During normal operation a discreet LED on the back of
the thermostat is lit for about 60 seconds if there is a
demand for heating or cooling.
The illustration below shows the parts of the
thermostat.
B C E
FF DA
G
Item Description
A Setpoint temperature potentiometer
B Registration button
C Disable timer switch
D Terminal for external sensor (non-polarised)
E Configuration DIP switches
F Batteries
G Heating/cooling demand LED
