5 Install Uponor Smatrix Wave/Wave PLUS
controller
5.1 Placement of controller
Refer to the installation preparation guidelines (see
section 4.2 Prepare for installation), and use the
following guidelines when positioning the controller:
• Position the controller just above the manifold.
Check the position of the 230 V AC wall socket, or
if required by local regulations, to a junction box,
connected to the mains power.
• Check that the cover of the controller can be easily
removed.
• Check that connectors and switches are easily
accessible.
Modular placement
The controller is designed with the option of modular
placement in mind. This means that all major parts are
detachable and can be placed separately (some extra
wiring may be required depending on placement).

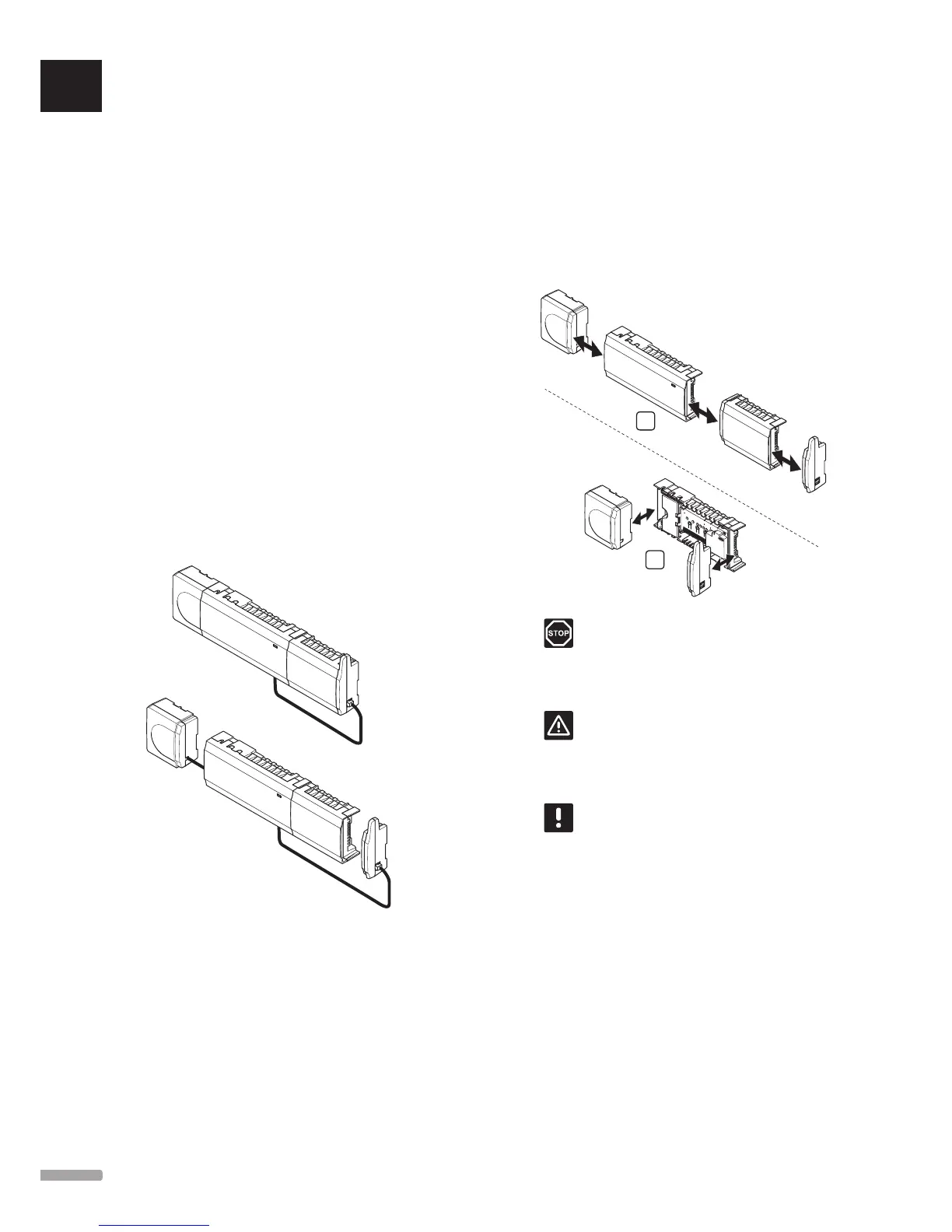

Attaching/detaching components
The components can either snap on or off without the
need of removing the covers (A), or by sliding them into
place when the covers are removed (B).
B
A
Warning!
The transformer module is heavy and might
detach if the controller is held upside down
without the cover on.
Caution!
The slave module must be attached by
snapping it into place due to connection pins
sticking out of the module.
NOTE!
Wires between transformer and controller card
needs to be disconnected prior to detaching
the transformer.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
22
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
