Uponor Smatrix Wave PLUS User Manual

The interface provides a centralised management of the
Uponor Smatrix Wave PLUS system with continuous
information updates and access to system settings.
Interface:
• Uponor Smatrix Wave PLUS Interface I-167

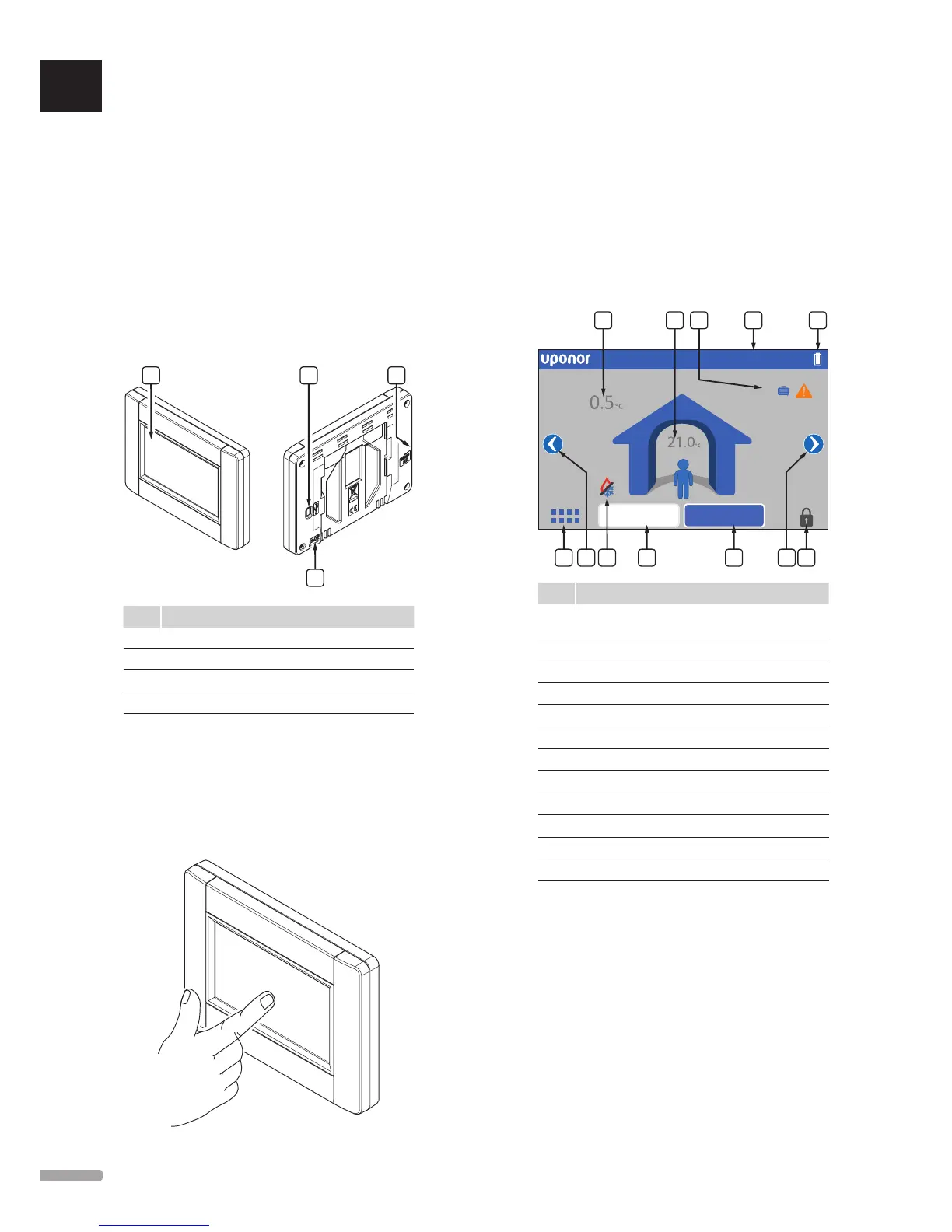

The illustration below shows the exterior of the
interface.
A D C
B
Pos. Description
A
Screen
B
Power switch
C
MicroSD card slot
D
Mini USB connection
14.1 Touch screen
The interface has a touch screen as the main form of
communication with the system.
The graphical user interface consists of large icons
and buttons which adds to the user friendliness of the
system.
14.2 Home screen
The home screen is the base of the menu system in
the interface. Here basic information of the system is
displayed and buttons to venture further into the menu
system is available.
C EDA B
LKJIF G H
Home Away
Thursday 2015.03.31 12:34
Pos. Description
A
Outdoor temperature (requires outdoor temperature
sensor)
B
Indoor temperature
C
Notifications
D
Date and time
E
Battery power indicator
F
Main menu
G
Left button, go to the last room menu
H
Heating/cooling mode indication
I
Home button, activates Comfort mode
J
Away button, activates ECO mode
K
Right button, go to the first room menu
L
Screen lock
14 Operate Uponor Smatrix Wave PLUS interface
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
72
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
