Uponor Smatrix Wave PLUS User Manual

3 Uponor Smatrix Wave/Wave PLUS
Uponor Smatrix Wave/Wave PLUS is a management
system for underfloor heating and cooling installations.
Comfort, user friendliness and temperature control
for each individual room of a home can be combined
through the various components.
3.1 System overview
Uponor Smatrix Wave/Wave PLUS consists of a
controller, an interface (Wave PLUS only), thermostats,
actuators and an optional timer (Wave only). The
controller manages the operation of the actuators when
the thermostats detect a demand for heating or cooling.
The interface facilitates system optimization and
settings for up to four controllers. The system can
function without the interface, but with reduced
functionality.
Uponor Smatrix Wave/Wave PLUS is controlled by
different types of thermostats. Designed for maximum
comfort, the thermostats communicate with the
controller by radio link. It is possible to mix the different
types of Uponor Smatrix Wave thermostats in the same
installation.

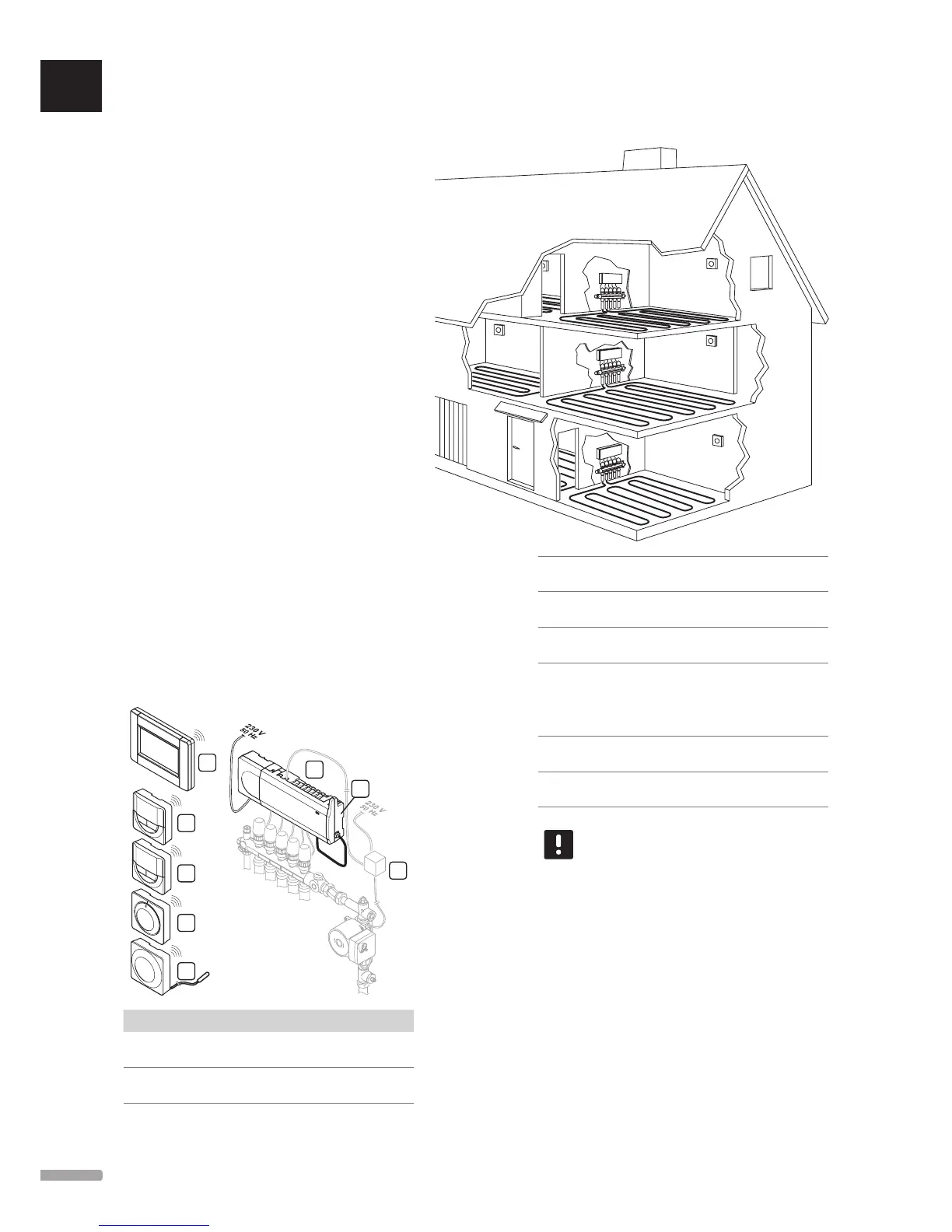

3.2 Example of a system
The illustration below shows Uponor Smatrix Wave
PLUS with several installation options and thermostats.
G
H
F
A
B
C
D
E
Item Description
A Uponor Smatrix Wave PLUS Interface I-167
(interface I-167)
B Uponor Smatrix Wave Thermostat Prog.+RH T-168
(digital thermostat T-168)
C Uponor Smatrix Wave Thermostat Dig T-166 (digital
thermostat T-166)
D Uponor Smatrix Wave Thermostat Standard T-165
(standard thermostat T-165)
E Uponor Smatrix Wave Thermostat Public T-163
(public thermostat T-163) with floor sensor
F Uponor Smatrix Wave PLUS Controller X-165
(controller X-165)
Uponor Smatrix Wave Controller X-163 (controller
X-163)
G Uponor Smatrix Wave Antenna A-165 (antenna
A-165)
H External connection box for pumps (third-party
product, just schematic example in illustration)
NOTE!
The floor sensor can be connected to
thermostats T-163, T-166, T-167 and T-168.
Floor temperature limitation together with a
thermostat T-163 can only be done in a Wave
PLUS system using an interface.
For example, the maximum limitation can
protect a sensitive floor covering from
exposure of too high temperature when there
is a high heating demand. The minimum
limitation can keep a tiled floor warm even
when there is a no general demand for heat
supply to the room.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
6
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
