Uponor Smatrix Wave PLUS User Manual

6 Install Uponor Smatrix Wave/Wave PLUS
thermostats and sensors
The following thermostats can be connected to the
system:
• Uponor Smatrix Wave Thermostat Standard T-165
• Uponor Smatrix Wave Thermostat Dig T-166
• Uponor Smatrix Wave PLUS Thermostat D+RH
T-167 (Wave PLUS only)
• Uponor Smatrix Wave Thermostat Prog.+RH T-168
• Uponor Smatrix Wave Thermostat Public T-163

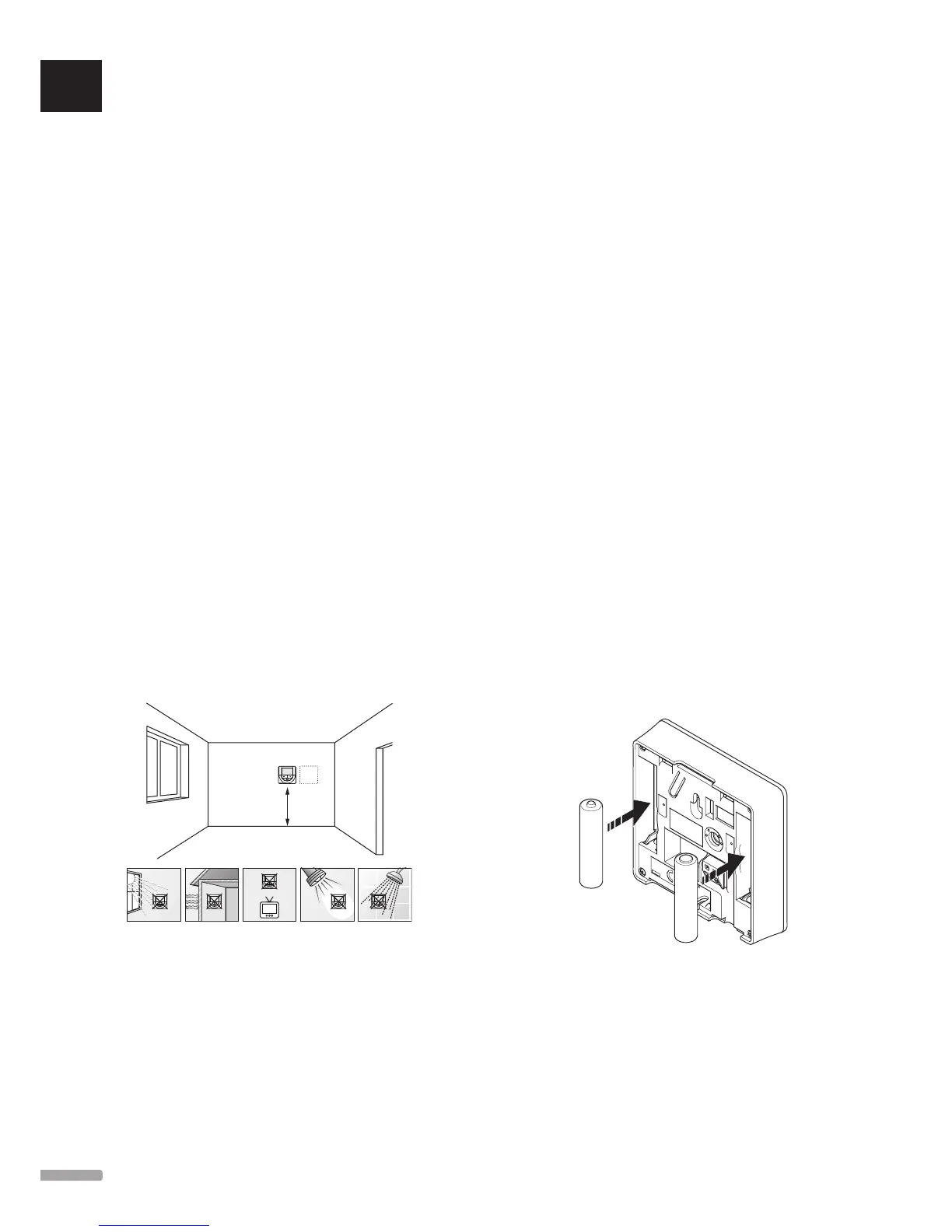

6.1 Placement of thermostats
Refer to the installation preparation guidelines (see
section 4.2 Prepare for installation), and use the
following guidelines when positioning the thermostats:
1. Select an indoor wall and a position 1.5 m to 1.8 m
above the floor.
2. Ensure that the thermostat is away from direct solar
radiation.
3. Ensure that the thermostat will not be heated
through the wall by sunshine.
4. Ensure that the thermostat is away from any source
of heat, for example television set, electronic
equipment, fireplace, spotlights, and so on.
5. Ensure that the thermostat is away from any source
of humidity and water splashes (IP20).
1.5–1.8 m
6.2 Label thermostats
Label the thermostats, where suitable, with the channel
numbers they are to control, for example, #02, #03.
For a system with interface and several controllers, add
the ID of each controller, for example, 1.02, 1.03, 2.02,
2.03.
If the thermostat can connect to an external sensor, add
information about sensor type when applicable.
Available thermostat and sensor combinations:
• Room temperature
• Room and floor temperature
• Room and outdoor temperature
• Remote sensor temperature
6.3 Insert batteries
All thermostats use two alkaline 1.5 V AAA batteries
which provides about 2 years of battery life, as long as
they are positioned within radio range of the controller.
Ensure that the batteries are correctly inserted in the
thermostats.
The thermostat will perform a self test, for about
10 seconds, when the batteries have been inserted. The
system will be blocked for input and the thermostat LED
flashes during this period.
The illustration below shows where to insert them.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
36
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
