Uponor Smatrix Wave PLUS User Manual

6.4 Connect external sensor to
thermostat (optional)
An optional external sensor can be connected to the
thermostats (except the standard thermostat T-165) for
extra functionality.
NOTE!
For accurate temperature: attach the outdoor
sensor to the north side of the building where
it is unlikely to be exposed to direct sunlight.
Do not place it close to doors, windows, or air
outlets.

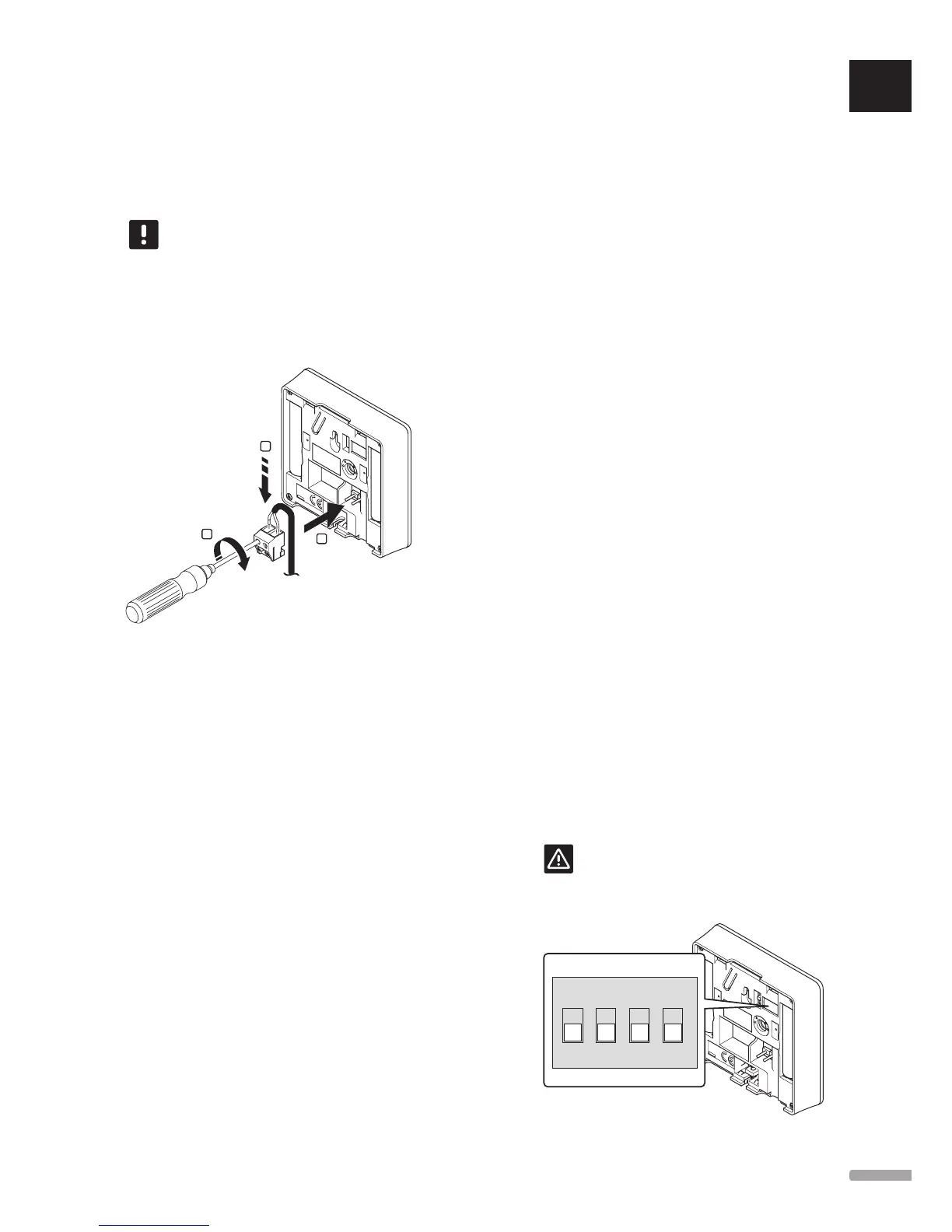

Connect the sensor to the terminal located at the back
of the thermostat, as shown in the illustration below.
1
2
3
1. Insert the two wires from the sensor cable (non
polarized) into the removable connector.
2. Tighten the screws fixing the wires in the connector.
3. Insert the connector on the input pegs on the
thermostat.
Uponor Smatrix Wave Thermostat Dig
T-166
The external temperature sensor input can be used for
either a floor, outdoor or remote temperature sensor.
Use the software on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
See section 12 Operate Uponor Smatrix Wave/Wave
PLUS digital thermostats for more information.
Uponor Smatrix Wave PLUS
Thermostat D+RH T-167
The external temperature sensor input can be used for
either a floor, outdoor or remote temperature sensor.
Use the software on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
See section 12 Operate Uponor Smatrix Wave/Wave
PLUS digital thermostats for more information.
Uponor Smatrix Wave Thermostat
Prog.+RH T-168
The external temperature sensor input can be used for
either a floor, outdoor or remote temperature sensor.
Use the software on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
See section 12 Operate Uponor Smatrix Wave/Wave
PLUS digital thermostats for more information.
Uponor Smatrix Wave Thermostat
Public T-163
The external temperature sensor input can be used
for either a floor temperature sensor, an outdoor
temperature sensor, a supply temperature sensor for
heating/cooling switch (Wave PLUS with interface
only), a heating cooling switch, or a Comfort/ECO
switch. Use the DIP switches on the thermostat to
select a control mode which corresponds to the use of
the sensor and thermostat.
Caution!
If more than one controller are available
in the system, register the thermostat as a
system device to the master controller.
1 2 3 4
ON DIP
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
37
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
