Uponor Smatrix Wave PLUS User Manual

Function*
Switch
1 2 3 4
Used as a standard room
thermostat
Off Off Off Off
Used as a standard room
thermostat together with a
floor temperature sensor
On
Off Off Off
Used as a standard room
thermostat, or system device,
together with an outdoor
temperature sensor
Off
On
Off Off
Used as a system device
together with a supply
temperature sensor for
heating/cooling switch over
function **
Off Off
On
Off
Used as a system device
where the sensor input is
used for Comfort/ECO switch
over function ***
Off Off Off
On
Use a remote sensor
Off
On
Off
On
Used as a system device
where the sensor input is
used for heating/cooling
switch-over function ****
Off Off
On On
* If registering the thermostat as a system device, it will no
longer work as a standard room thermostat any more.
** Wave PLUS with interface only
*** Closed = ECO
**** Closed = Cooling
Caution!
The switches must be set before the
thermostat is registered.
Caution!
The switches must be set to one of the
available functions, otherwise the thermostat
cannot be registered.

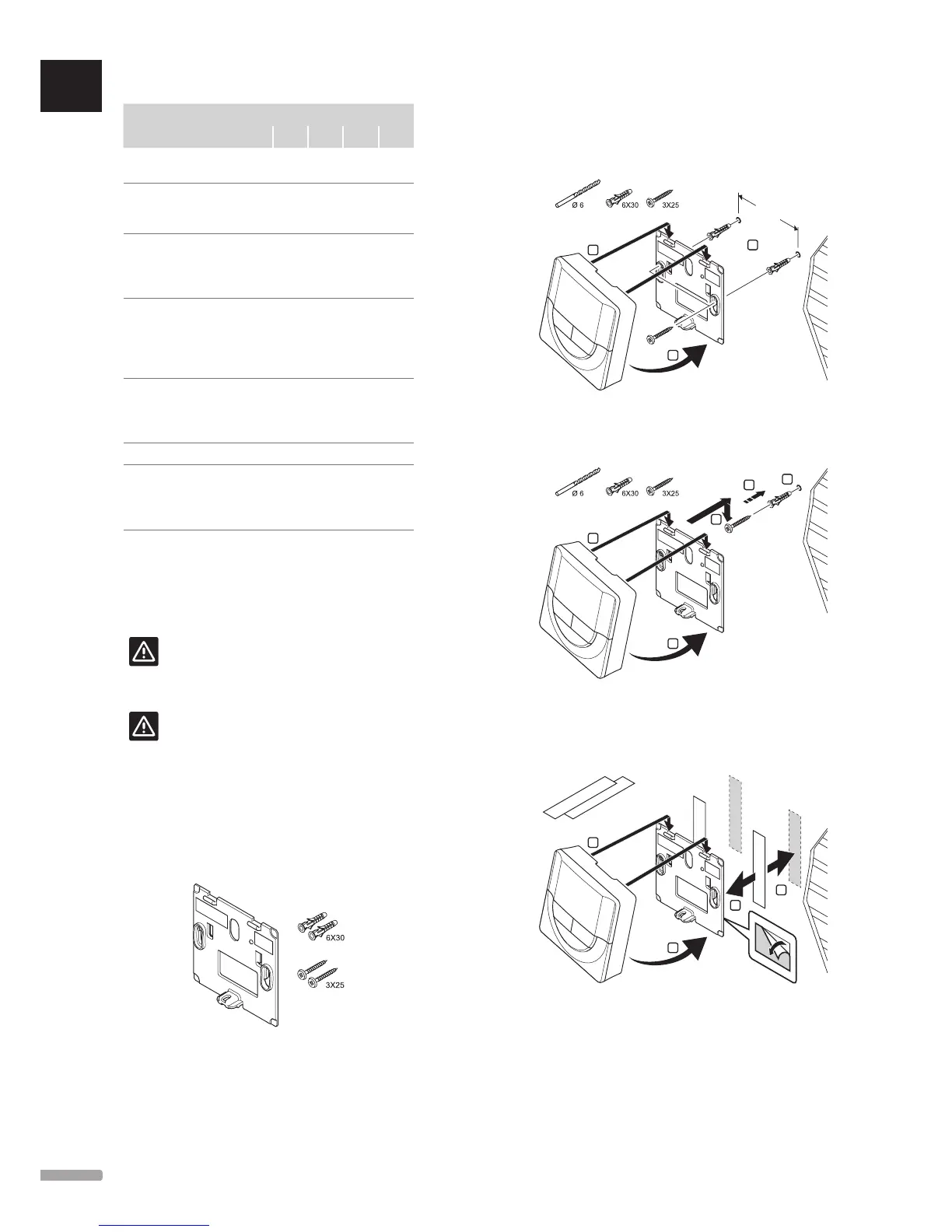

6.5 Attach a thermostat to the wall
The thermostats are delivered in kits including screws,
wall plugs, and a wall bracket, presenting several
options of attaching the thermostat to the wall.
Using wall bracket (recommended)
The illustration below shows thermostat mounting hole
positions and how to attach it to the wall using a wall
bracket.
2
1
3
60 mm
Screw and wall plug
The illustration below shows how to attach the
thermostat to the wall using one screw and wall plug.
3
1
5
2
4
Using adhesive strip (not included)
The illustration below shows how to attach the
thermostat to the wall using an adhesive strip and a wall
bracket.
60 x 10
4
1
3
5
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
38
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
