Uponor Smatrix Wave PLUS User Manual

4 Install Uponor Smatrix Wave/Wave PLUS
4.1 Installation procedure
Uponor Smatrix Wave/Wave PLUS
Uponor recommends following the process described
below to guarantee the best possible installation results.
Stage Procedure Page
1 Prepare for installation 18
2 Install Uponor Smatrix Wave/Wave PLUS
controller
22
3 Connect a slave module (optional) 24
4 Install Uponor Smatrix Wave/Wave PLUS
thermostats and sensors
36
5 Install optional Uponor Smatrix Wave
timer (Wave only)
44
6 Install Uponor Smatrix Wave PLUS
interface (Wave PLUS only)
47
7 Register Uponor Smatrix Wave Relay
Module M-161
35
8 Finish installation 51
Uponor Smatrix Wave PLUS Interface
I-167
Follow the process described below to install the
Uponor Smatrix Wave PLUS Interface I-167.
Stage Procedure Page
1 Placement of interface 47
2 First startup guide 48
4.2 Prepare for installation
Before starting the installation:
• Verify the contents of the package with the packing
list.
See also section 3.3 Uponor Smatrix Wave/Wave
PLUS components for identification of components.
• Check whether an external temperature sensor is to
be installed with a compatible thermostat.

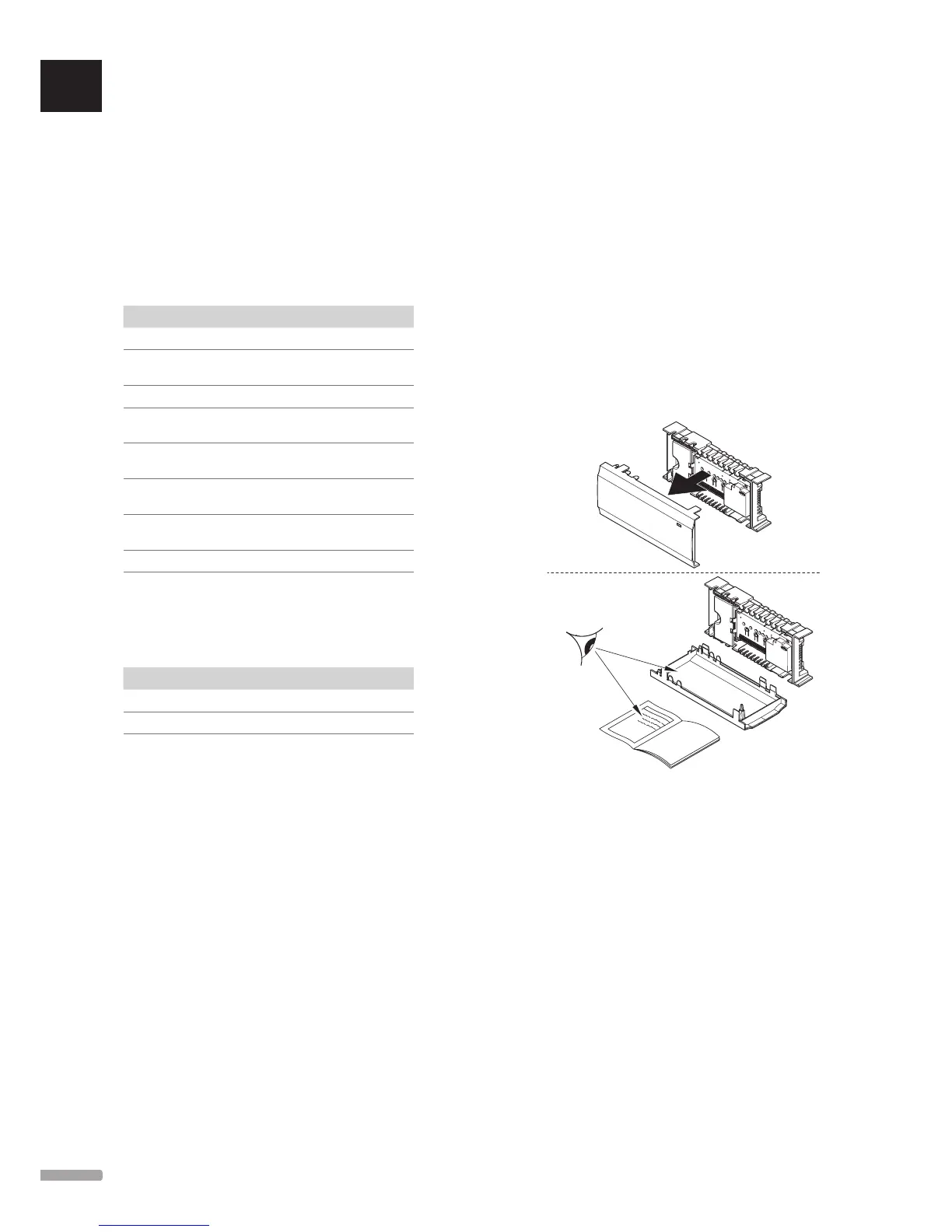

• Study the wiring diagram in the end of this manual
or inside the controller cover.
To determine where to best place the Uponor Smatrix
Wave/Wave PLUS components, follow these guidelines:
• Ensure that the controller can be installed close
to the manifold pair. Note that each manifold pair
must have its own controller.
• Ensure that the controller can be mounted close
to a 230 V AC wall socket, or if required by local
regulations, to a junction box, connected to the
mains power.
• Ensure that installed Uponor Smatrix Wave/Wave
PLUS components are protected from running or
dripping water.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
18
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
