Features
WorkCentre 6505 Color Laser Multifunction Printer
User Guide
20

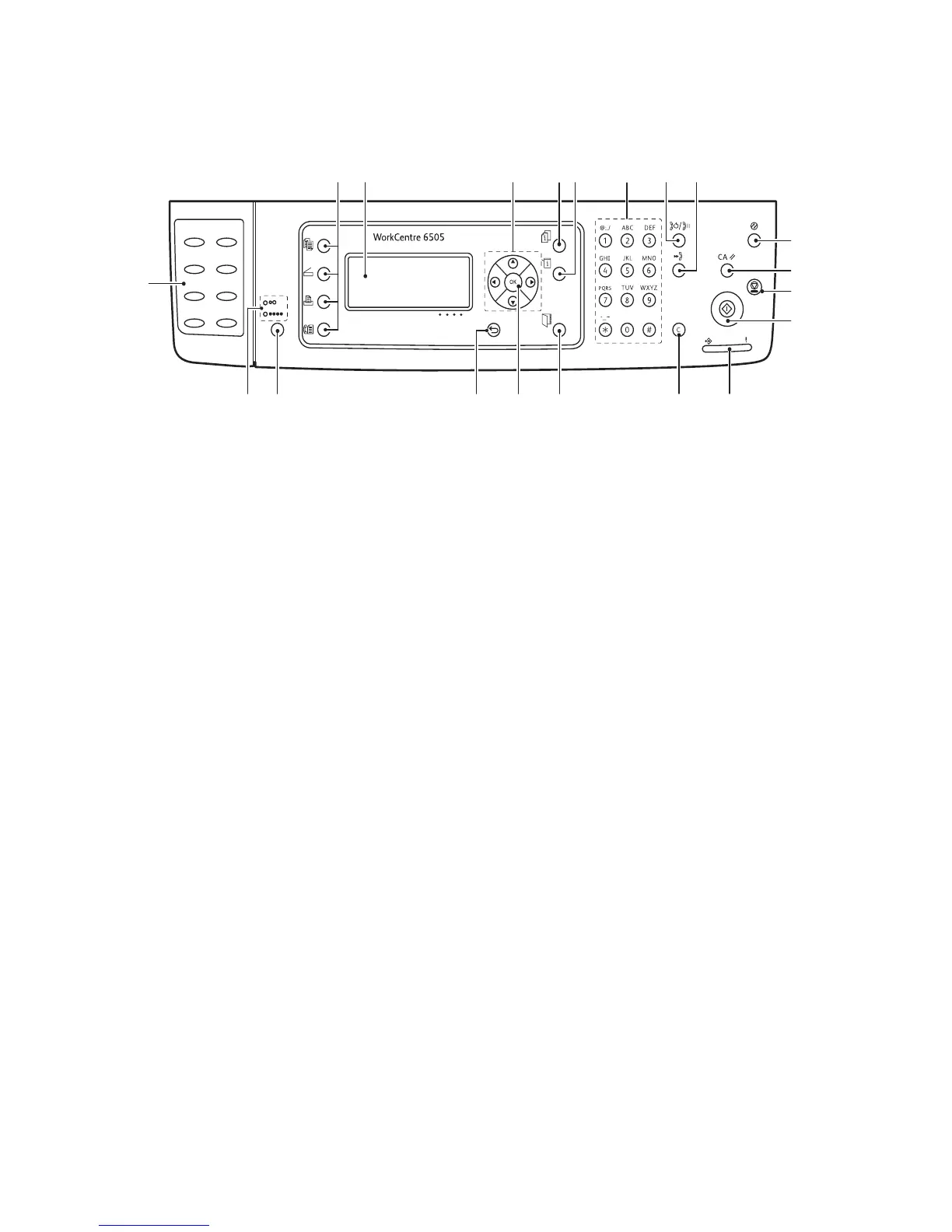

Control Panel
1. One Touch keypad: Use to speed dial a
phone number.
2. Copy, Scan, Print, and Fax buttons: Press to
use the Copy, Scan, Print, and Fax menus on
the display screen.
3. Display Screen: Shows status messages,
menus, and toner levels.
4. Arrow buttons: Scroll up, down, forward, and
back through the menus.
5. Job Status button: Press to check active job
status.
6. System button: Switches the display to the
System menus.
7. Alphanumeric keypad: Use to enter letters
and numbers for names and phone numbers.
8. Redial/Pause button: Press the button to
recall the last fax number used or to insert
pauses in fax numbers.
9. Speed Dial button: Press to access directories
of group or individual fax telephone
numbers.
10. Wake Up/Power Saver button: This light is
illuminated in power saver mode. Push the
button to exit Energy Saver mode.
11. Clear All button: Clears all text, numbers or
instructions.
12. Stop button: Cancels the current print job.
13. Start button: Press to start a copy, scan, or
fax job.
14. Status indicator light: The green or red light
indicates printer status.
• Lights green when the printer is ready to
receive data.
• Blinks green when the printer is busy
receiving data.
• Lights red to indicate an error condition
or warning that requires your attention.
• Blinks red when an error occurs that
requires technical support.
• Off when the printer is in Energy Saver
mode.
15. Cancel/Clear button: Cancels the current
print or copy job. In menus, deletes a single
character each time the button is pressed.
16. Address Book button: Press to access the Fax
and Email address books.
17. OK button: Press to accept the selected
setting.
18. Back/Return button: Press to go up one level
in the menu.
19. Color Mode button: Press to switch between
Color and Black and White modes for your
copy, fax, and scan jobs.
20. Black and White/Color indicator lights:
Upper light indicates Black and White mode.
Lower light indicates Color mode.
wc6505_006
1
10
11
12
13
2
3 56 8 9
4 7
17 14151619 1820
