Yealink VCM38 Administrator's Guide

| Getting Started | 21
Port Name Description
4 VC Hub/Phone
• If you want to use wired sharing to present, connect this port to
the Codec port on the VCH50 video conferencing hub/to the PoE
port on the VCH51 video conferencing hub.
• Connect to CTP20.
• If you need an audio device, connect this port to the Internet port
on the CP960 Conference phone.
• Connect to VCM38/VCM34.
5 HDMI Connect to a monitor for displaying video images.
6 Internet Connect to the network device.
7 DC48V Connect to the power source via a power adapter.
8 Reset Key Reset the VCS endpoint to factory defaults.
9 Security Slot Allow you to connect a universal security cable to the VCS endpoint,
so you can lock the VCS endpoint down. The VCS endpoint cannot
be removed when locked.

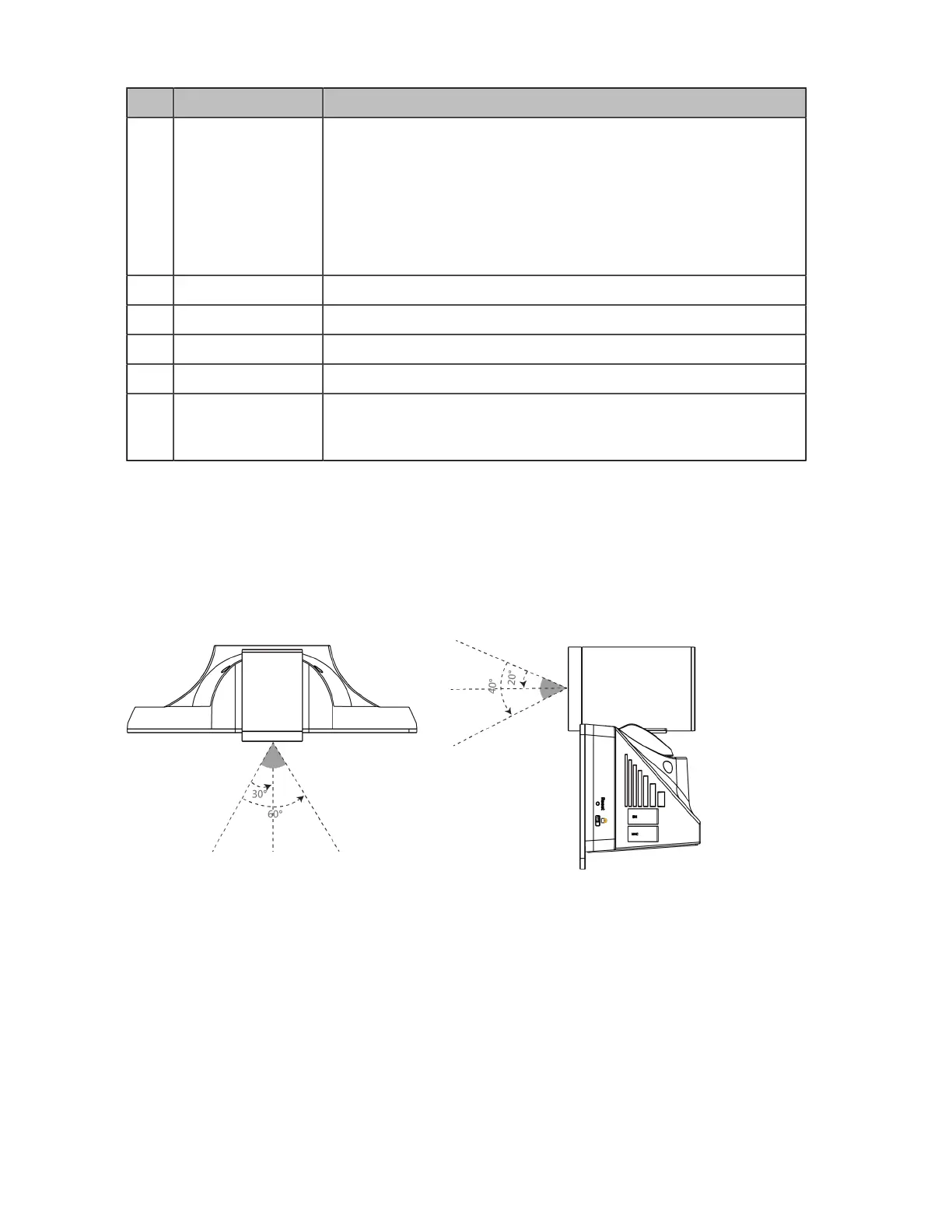

Hardware of VC500/PVT950 Codec
VC500/PVT950 codec compresses outgoing video and audio data, transmits this information to the far site,
and decompresses incoming data.
VC500/PVT950 codec, compatible with different audio devices, supports 16:9 and 4:3 aspect ratios and
can adapt to the monitors automatically. The VC500/PVT950 camera can be panned (± 60 degrees range),
tilted (± 40 degrees range) and support 5 x optical zoom, white balance and automatic gain.
• Front Panel of VC500/PVT950 Codec
• Rear Panel of VC500 Codec
Front Panel of VC500/PVT950 Codec
The LED indicator in front of the camera indicates different camera status.

Yealink VCM38 Specifications

General

Type	Conference microphone
Noise reduction	Yes
Microphone frequency	100 - 16000 Hz
Microphone sensitivity	-45 dB
Microphone pick-up range	6 m
Number of microphone arrays	8
Maximum sound pressure level (1kHz)	100 dB
Device interface	RJ-45
Connectivity technology	Wired
Maximum operating distance	40 m
Mounting type	Ceiling
Product color	Silver
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90 %
Number of products included	1 pc(s)
Harmonized System (HS) code	85181000
Power source	DC/PoE
Sustainability certificates	CE, Federal Communications Commission (FCC), REACH, RoHS

Weight and Dimensions

Width	127.3 mm
Height	66.3 mm
