ABB PST User Manual

Low Voltage Products & Systems 121
ABB Inc. • 888-385-1221 • www.abb-control.com AC 1006.9 - 5/03
Chapter 10 - Functions
10:4 Initial voltage
Path in menu:
Menu/SETTINGS/Functional Settings/
Start/Stop / Init Volt
This parameter makes it possible to set the voltage level where the start ramp
begins. If the initial voltage is set too low, it will cause unneccessary long starting
times and unnecessary heating of the motor.
10:5 End voltage
Path in menu:
Menu/SETTINGS/Functional Settings/
Start/Stop / End Volt
This parameter makes it possible to set the voltage level where the stop ramp
ends. This function will be active only if parameter Stop ramp is used.
Parameter
text
Default
value
Setting
range
Description
Init Volt 30% 30...70%
Initial voltage
for stop ramp

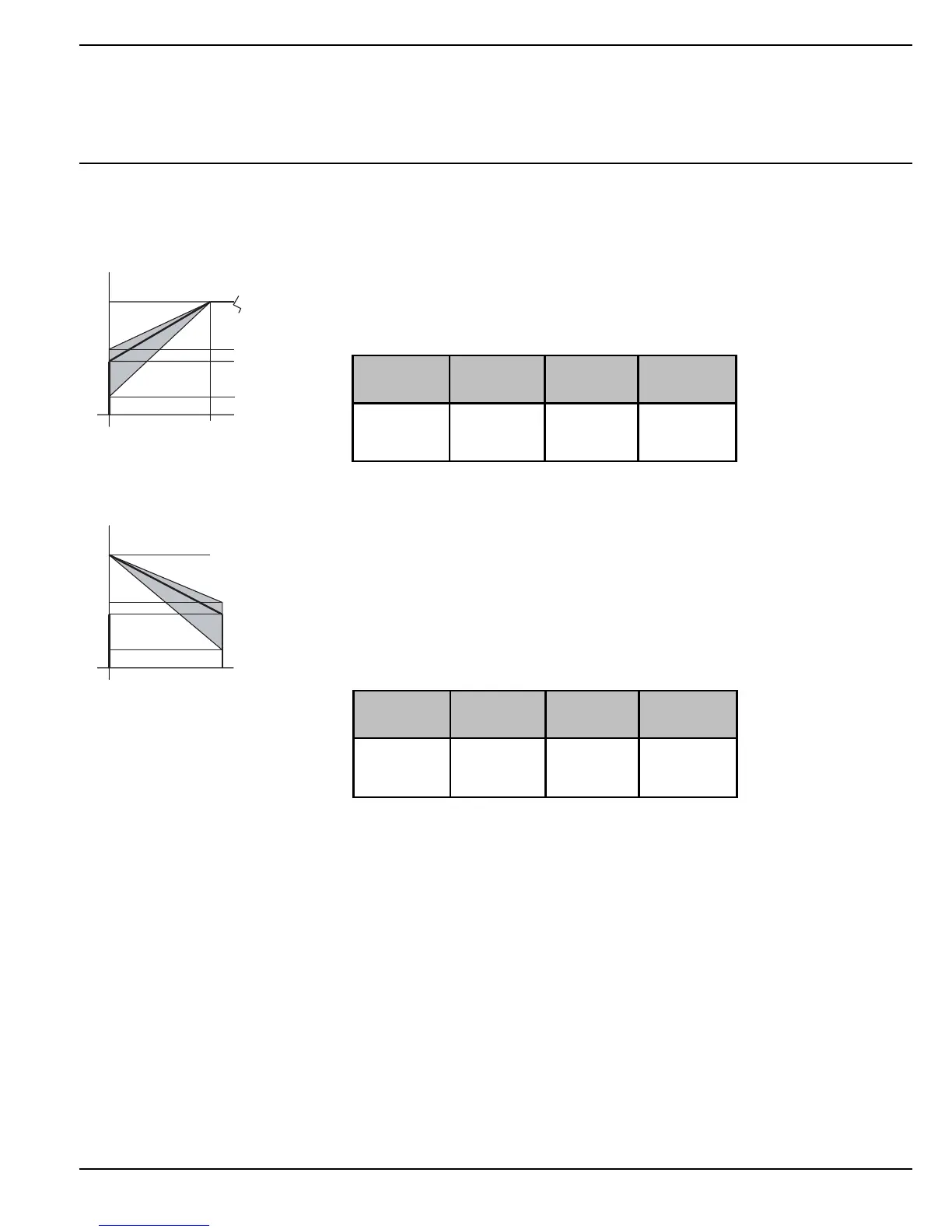

Figure 3: Start ramp
30%
70%
U
1SFC132097F0001
Start
30%
70%
U
100%
1SFC132098F0001
Stop
Figure 4: End voltage for
Stop ramp
Parameter
text
Default
value
Setting
range
Description
End Volt 30% 30...70%
End voltage
for stop ramp
