ABB PST User Manual

Low Voltage Products & Systems 143
ABB Inc. • 888-385-1221 • www.abb-control.com AC 1006.9 - 5/03
Chapter 10 - Functions
10:49 Programmable inputs
In0 and In1
Path in menu:
Menu/SETTINGS/Functional Settings/
Inputs/In0 / In1
The softstarter has two programmable inputs, In0 and In1. They can
be used for different purposes depending on the selected function,
independently of each other.

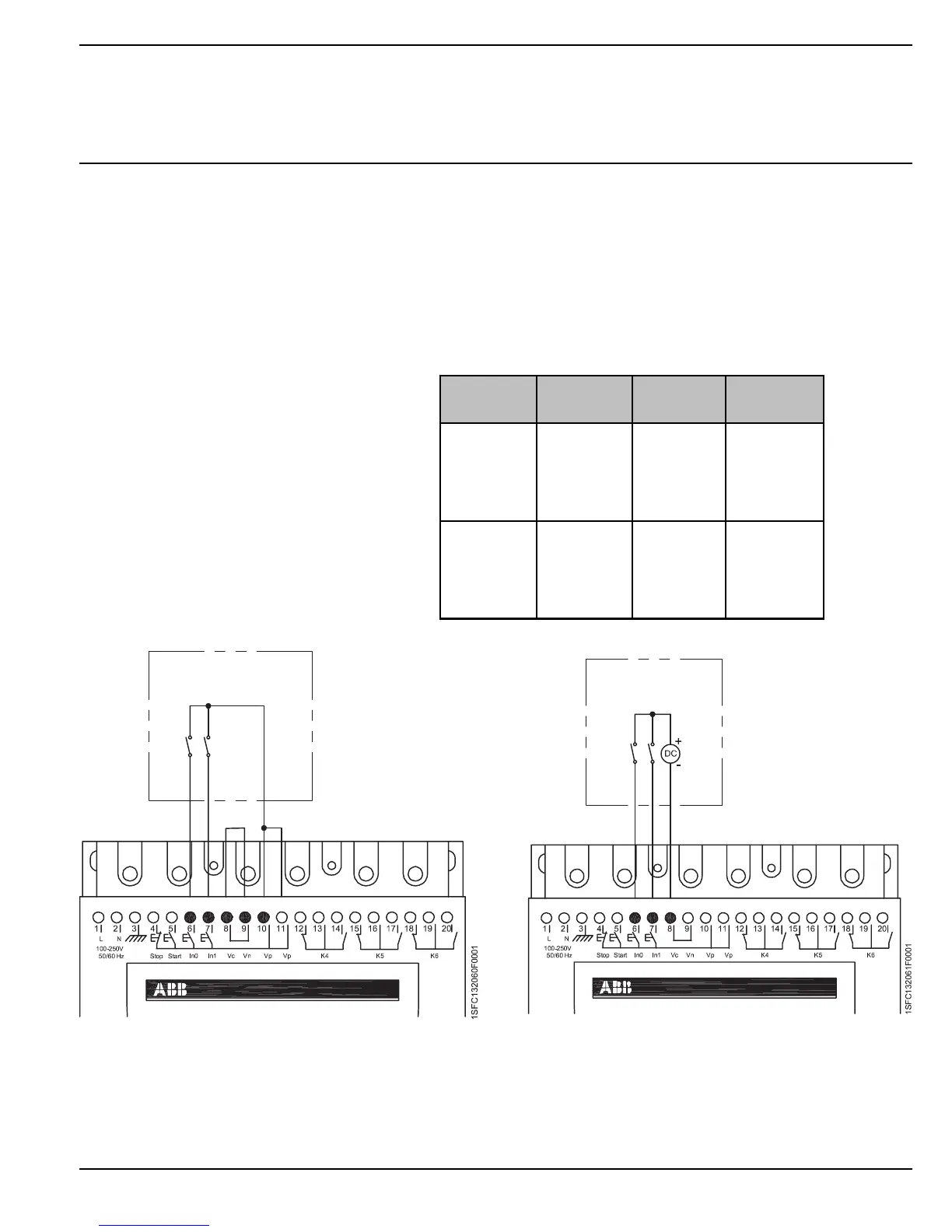

Figure 9: Internal control voltage
Figure 10: External control voltage
Parameter
text
Default
value
Setting
range
Description
In0 Reset
None,
Reset,
Enable, Jog,
DOL, Start 2
Function of
program-
mable input
In0
In1 Reset
None,
Reset,
Enable, Jog,
DOL, Start 3
Function of
program-
mable input
In1
