ABB PST User Manual

Low Voltage Products & Systems 45
ABB Inc. • 888-385-1221 • www.abb-control.com AC 1006.9 - 5/03

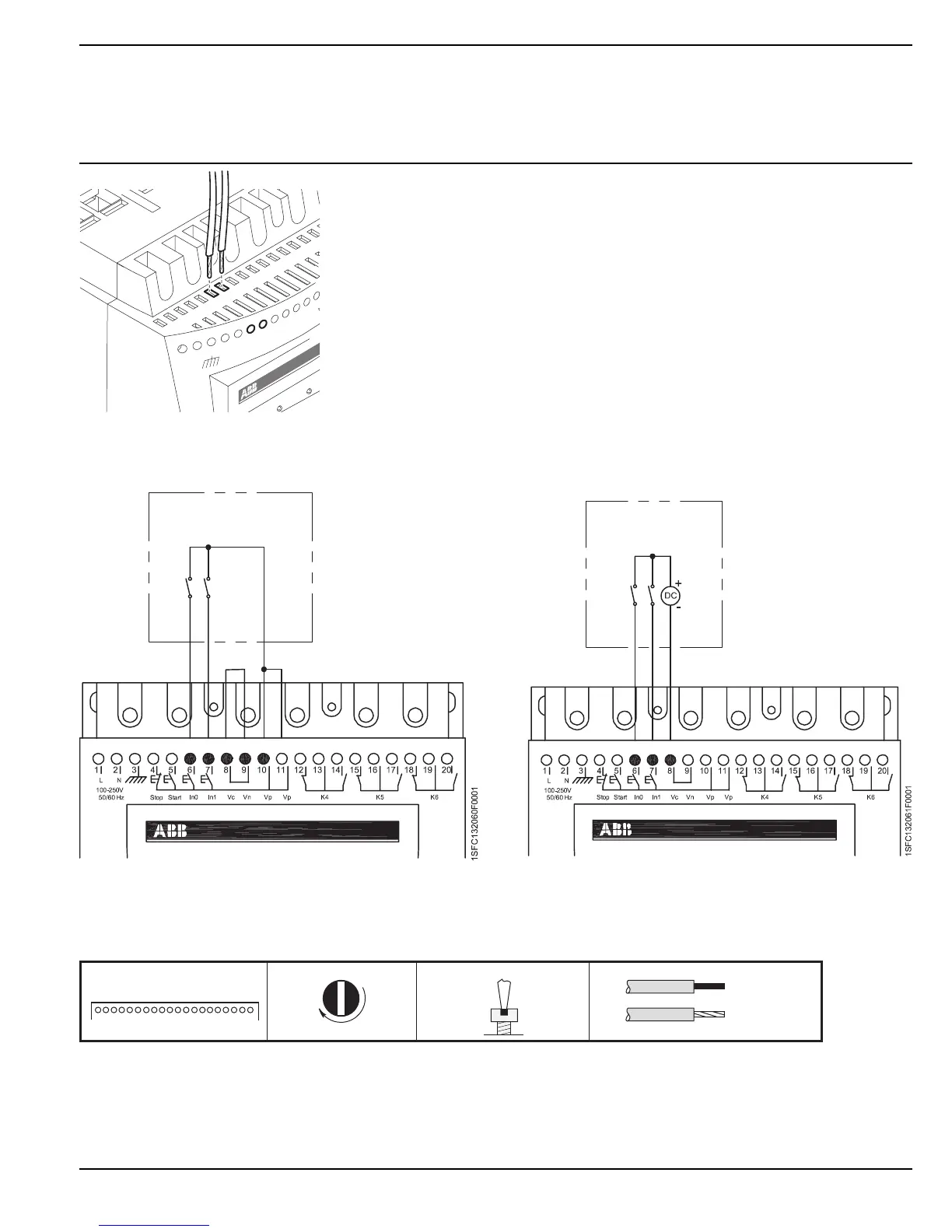

Figure 16: Terminals 6, 7
Figure 18: External control voltage
Figure 19: Tightening torques and cable sizes
M3
1. . . . . . . . . . . . . . . . . . . . . . . . 20
0.5 Nm - 4.3 lb.in
3.5x0.6
0.14 ... 2.5 mm
AWG 12 ... 22
0.14 ... 2.5 mm
2
2
1SFC132053F0001
Chapter 5 - Connection
Figure 17: Internal control voltage
5:2.2.4 Programmable inputs, terminals 6 and 7
The softstarter has two programmable inputs.
In0: default, reset, fault/overload.
In1: default, reset, fault/overload.
See Chapter 7 “ Settings and configuration” for programming.
Connect the cables according to Figure 17 or Figure 18 depending on whether
the internal or external source is being used.
1
100-250V
Stop
Start
In0
In1
Vc
50/60Hz
2
3
4
5
6
7
8
9
10
Vp
Vp
11
12
Vn
1SFC132059F0001
