Publication 2711-UM014B-EN-P
Installing the PV300 Micro Terminal 6-3

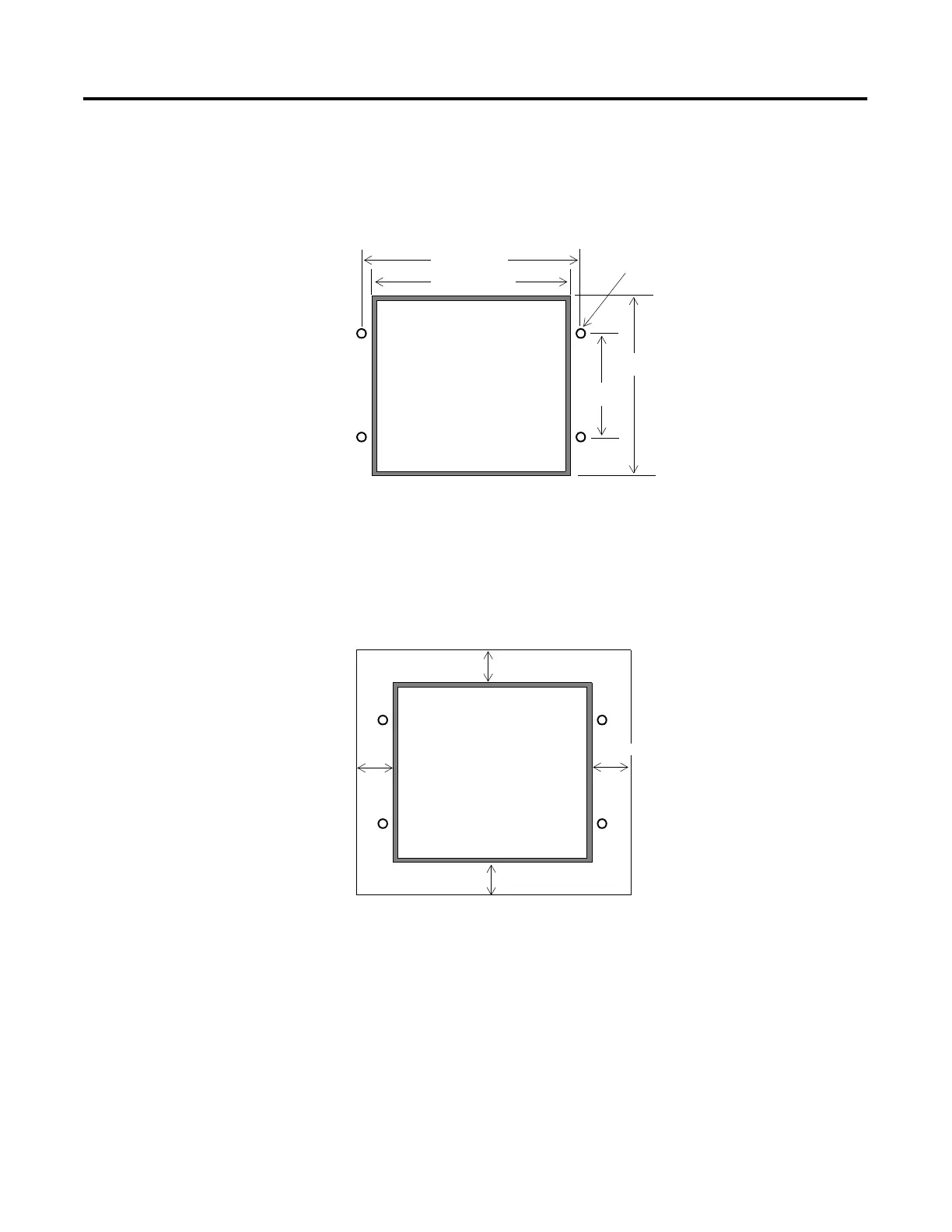

Cutout Dimensions
Use the full size template shipped with the PV300 Micro to mark the
cutout dimensions. The figure below shows a reduced scale cutout. A
full scale template is also available inside the back cover of this
document.
Clearances
Allow 51 mm (2.0 inches) of space on all sides of the terminal for
adequate ventilation and maintenance.
4.42 in. (112 mm)
4.0 in. (102 mm)
3.62 in.
(92 mm)
2.12 in.
(54 mm)
0.178 in. (4.5 mm)
Diameter
2.0 in. (51 mm)
2.0 in. (51 mm)
Side, Top and Bottom Clearances
