Publication 2711-UM014B-EN-P
Installing the PV550 Terminal 8-5
Installing the PV550 in a
Panel
To install the PV550 terminal in a panel:
1. Cut an opening in the panel using the panel cutout provided
with the terminal. Remove any sharp edges or burrs.

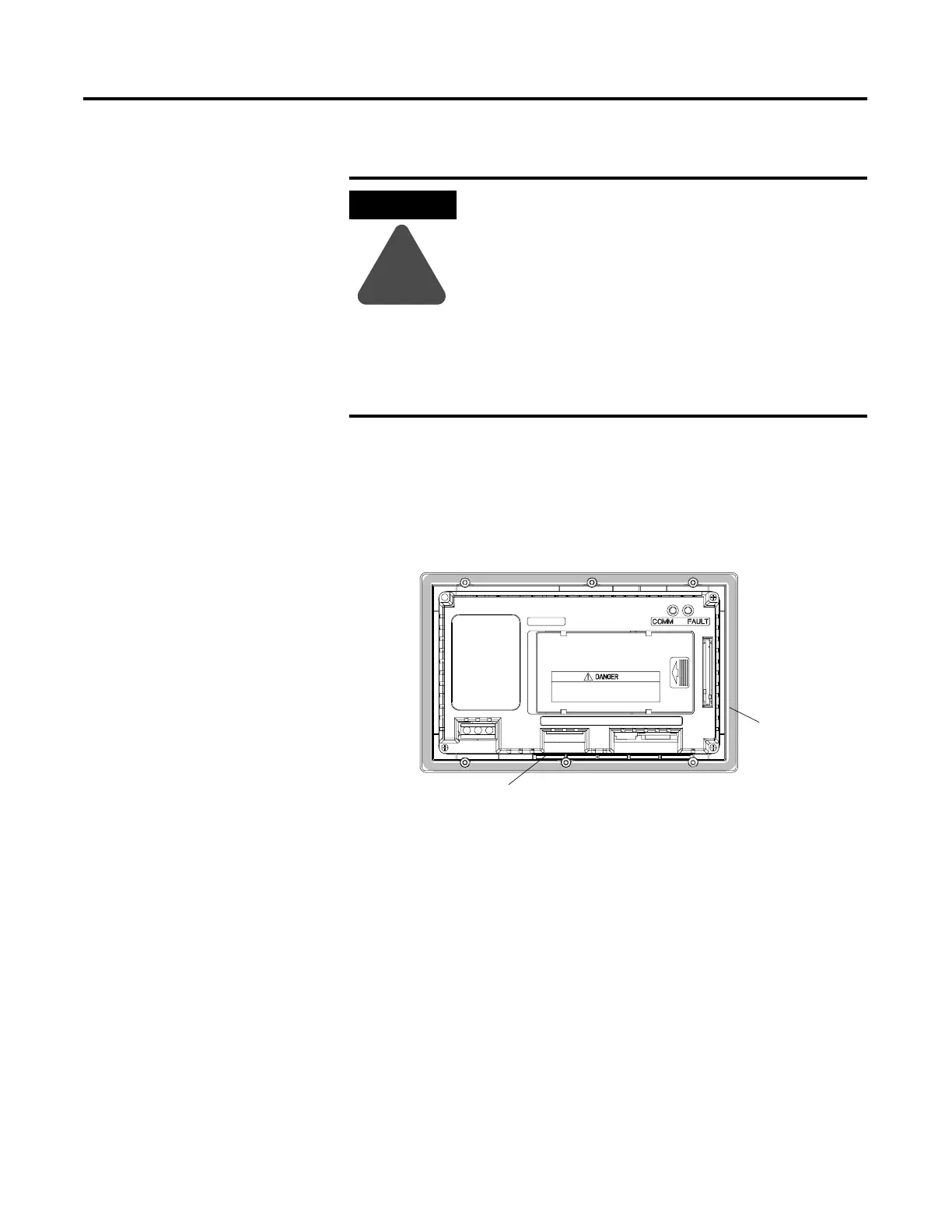

2. Make sure the terminal sealing gasket is properly positioned on
the terminal as shown below. This gasket forms a compression
type seal. Do not use sealing compounds.
3. On the keypad and keypad & touch screen terminals, secure the
ends of the legend strips to the legend strip adhesive.
4. Place the terminal in the panel cutout.
5. Verify that the opening is the proper size to clear the bezel and
to allow the gasket to contact the panel.
6. On the keypad and keypad & touch screen terminals, position
the ends of the legend inserts behind the panel cutout.
7. Install the self-locking nuts hand tight.
ATTENTION
!
• Disconnect all electrical power from the panel
before making the cutout.
• Make sure the area around the panel cutout is
clear.
• Do not allow metal cuttings to enter any
components that may already be installed in the
panel.
• Failure to follow this warning may result in
personal injury or damage to the panel
components.
Sealing Gasket
Adhesive Legend Strip
(Keypad and Keypad & Touch Screen Terminals only)
To Next Page
