Publication 2711-UM014B-EN-P
Installing the PV600 Terminal 9-5
Installing the PV600 in a
Panel
To install the PV600 terminal in a panel:
1. Cut an opening in the panel using the panel cutout provided
with the terminal. Remove any sharp edges or burrs.

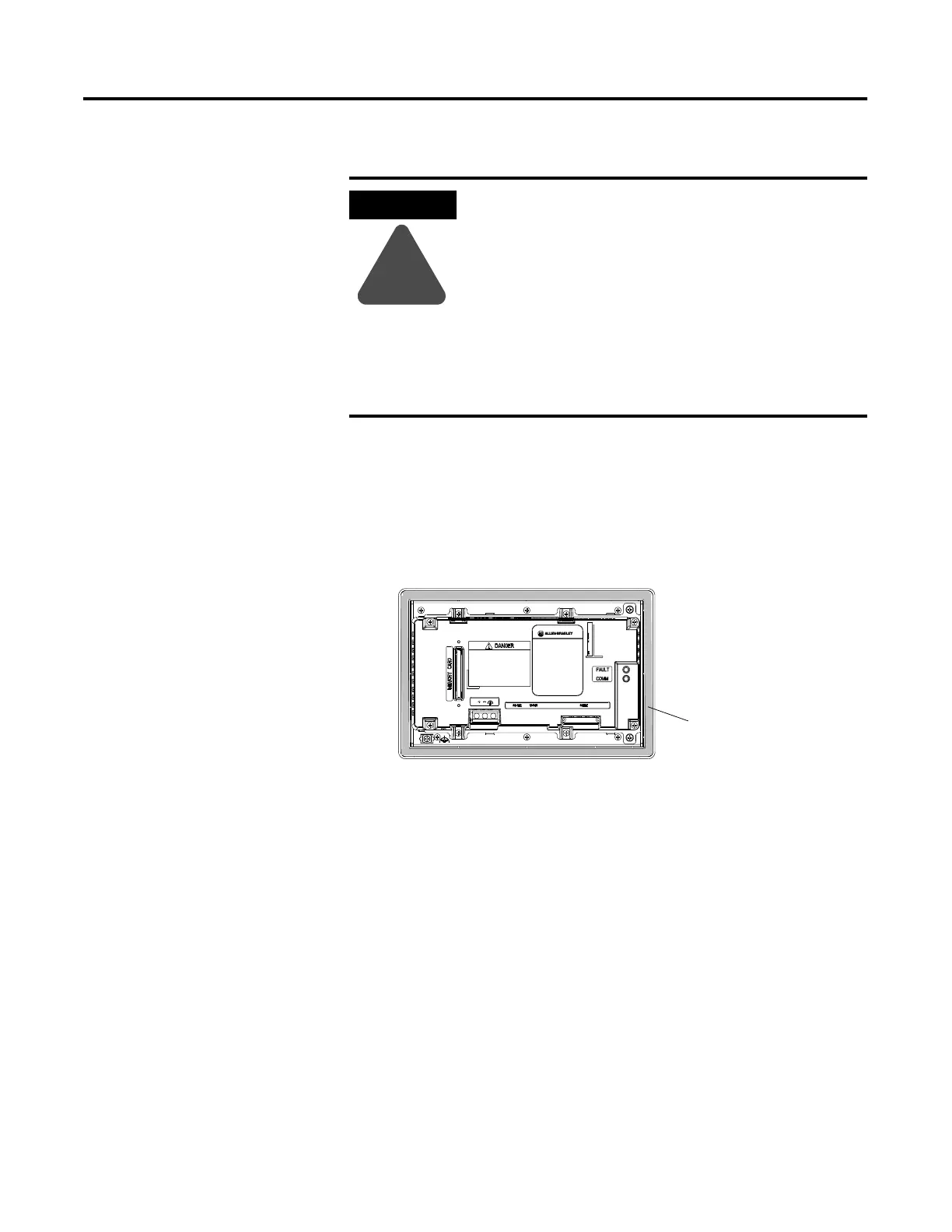

2. Make sure the terminal sealing gasket is properly positioned on
the terminal as shown below. This gasket forms a compression
type seal. Do not use sealing compounds.
3. Although the keypad legend strip can be installed on the keypad
and keypad & touch screen terminals at any time, we
recommend that you install the strip after the terminal is
installed.
4. Place the terminal in the panel cutout.
ATTENTION
!
• Disconnect all electrical power from the panel
before making the cutout.
• Make sure the area around the panel cutout is
clear.
• Do not allow metal cuttings to enter any
components that may already be installed in the
panel.
• Failure to follow this warning may result in
personal injury or damage to the panel
components.
Sealing Gasket
To Next Page
