7-4 Installing the PV300 Terminal
Clearances
When installing the PV300 terminal, allow space for mounting, air
flow, maintenance, memory card and legend strip installation.
69 mm
(2.73 in)
134.6 mm
(5.3 in)
Card
215.9 am (8.5 in) is required with
card retainer. Allows 6mm (.25) in
clearance) to insert and remove a
memory card with the memory card
retainer.
Leave 64 mm (2.5 in)
for Mounting and Air Flow
Leave 64 mm (2.5 in)
for Mounting and Air Flow
Memory Card
Retainer

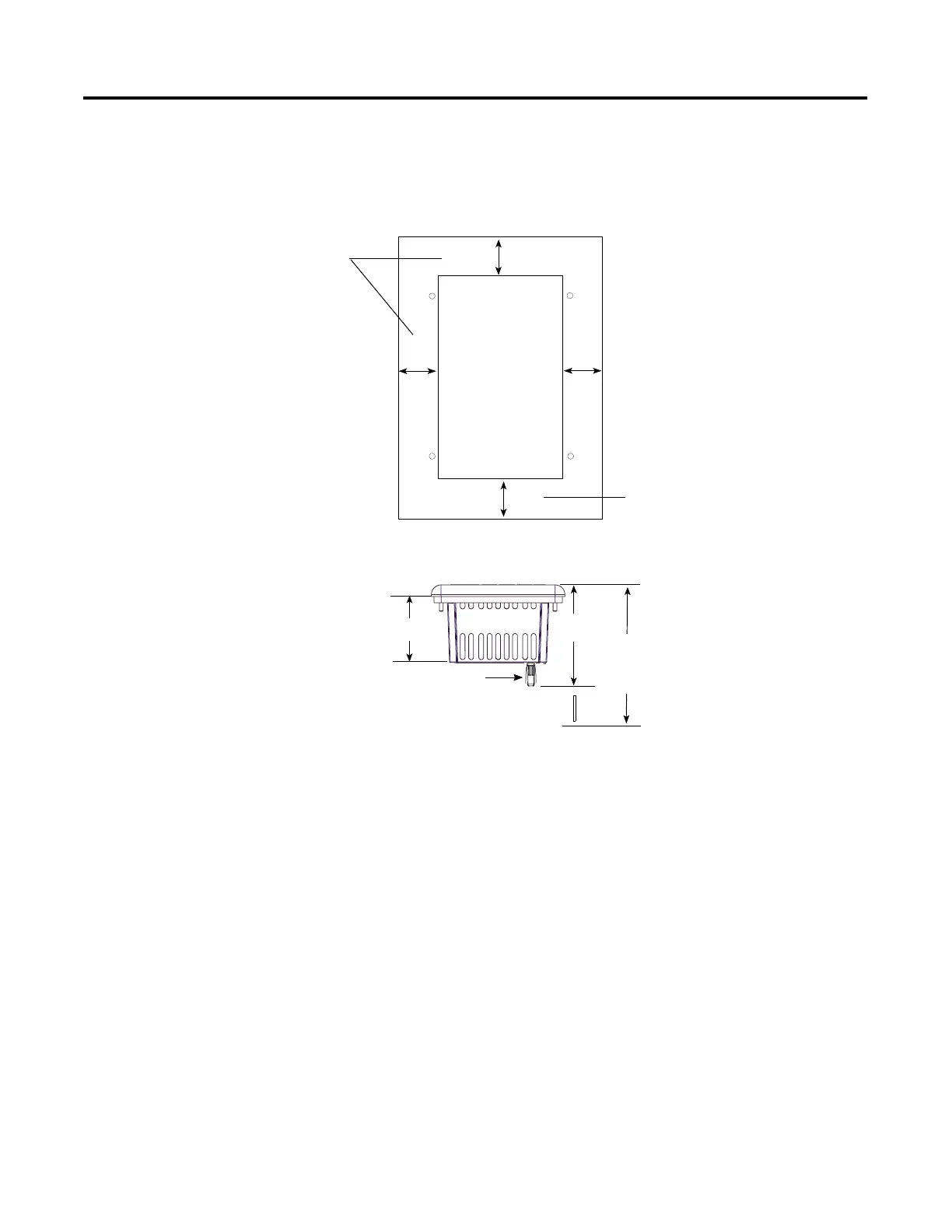

Side, Top and Bottom Clearances
Back Clearance
Recommended Panel
Cutout Dimensions
Terminal Cutout
Use full size template
shipped with terminal
To Next Page
