Publication 2711-UM014B-EN-P
9-4 Installing the PV600 Terminal

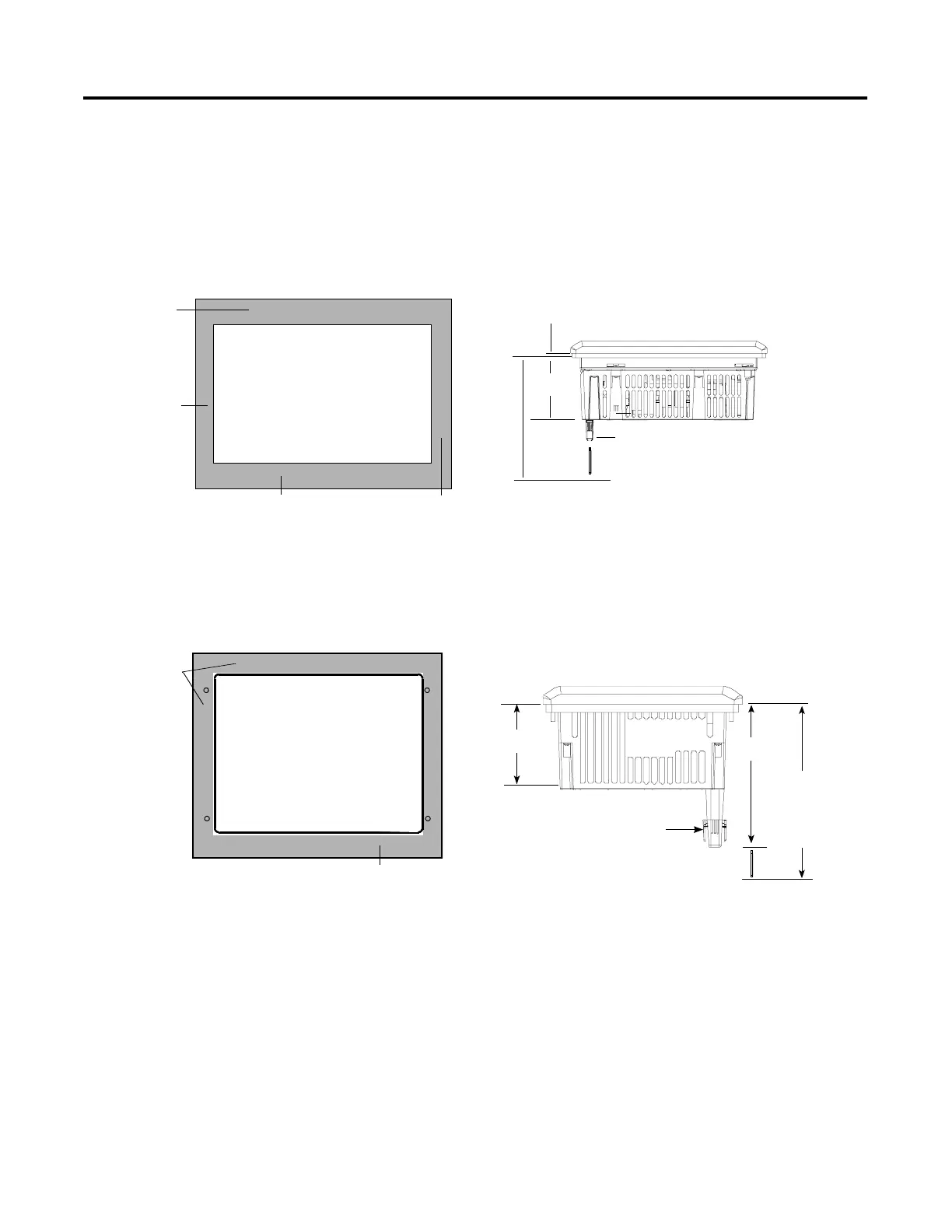

Clearances
When installing the PV600 terminal, allow adequate space for
mounting, air flow, maintenance, memory card and legend strip
installation.
PV600 Keypad and Keypad & Touch Screen Terminals
PV600 Touch Screen Terminals
51 mm (2.0 in)
for Mounting and Wiring Connections
38 mm (1.5 in)
for Mounting, Air Flow
and Legend Insert
51 mm (2.0 in)
for Mounting
and Air Flow
220 mm (8.65 in) is
required to insert and
remove a memory card
with the memory card
retainer.
6.9 mm
(0.27 in)
91 mm
(3.60 in)
25 mm (1.0 in)
for Mounting
and Air Flow
Back Clearance
Side, Top and Bottom Clearances
Memory Card Retainer
Card
Terminal Cutout - Front View
Use full size template
shipped with terminal
38 mm (1.5 in)
for Mounting, Air Flow
and Wiring Connections
25 mm (1.0 in)
for Mounting
and Air Flow
132 mm
(5.21 in)
211 mm (8.30 in.) is
required to insert
and remove a
memory card with
the memory card
retainer.
79 mm
(3.12 in)
Memory Card Retainer
Back Clearance
Side, Top and Bottom Clearances
Terminal Cutout
Use full size template
shipped with terminal
