4-2 Using a Memory Card
Using the Memory Card
Retainer
A Memory Card Retainer (Catalog No. 2711-NMCC, -NMCD,
-NMCE) is shipped with all PanelView terminals, except the PV300
Micro and the PV1400. It is required for:
• UL508 installations
• vibration/mechanical shock environments
• CE certified installations
• installations where the application uses a font file on a memory
card, and the card must remain in the terminal during operation.

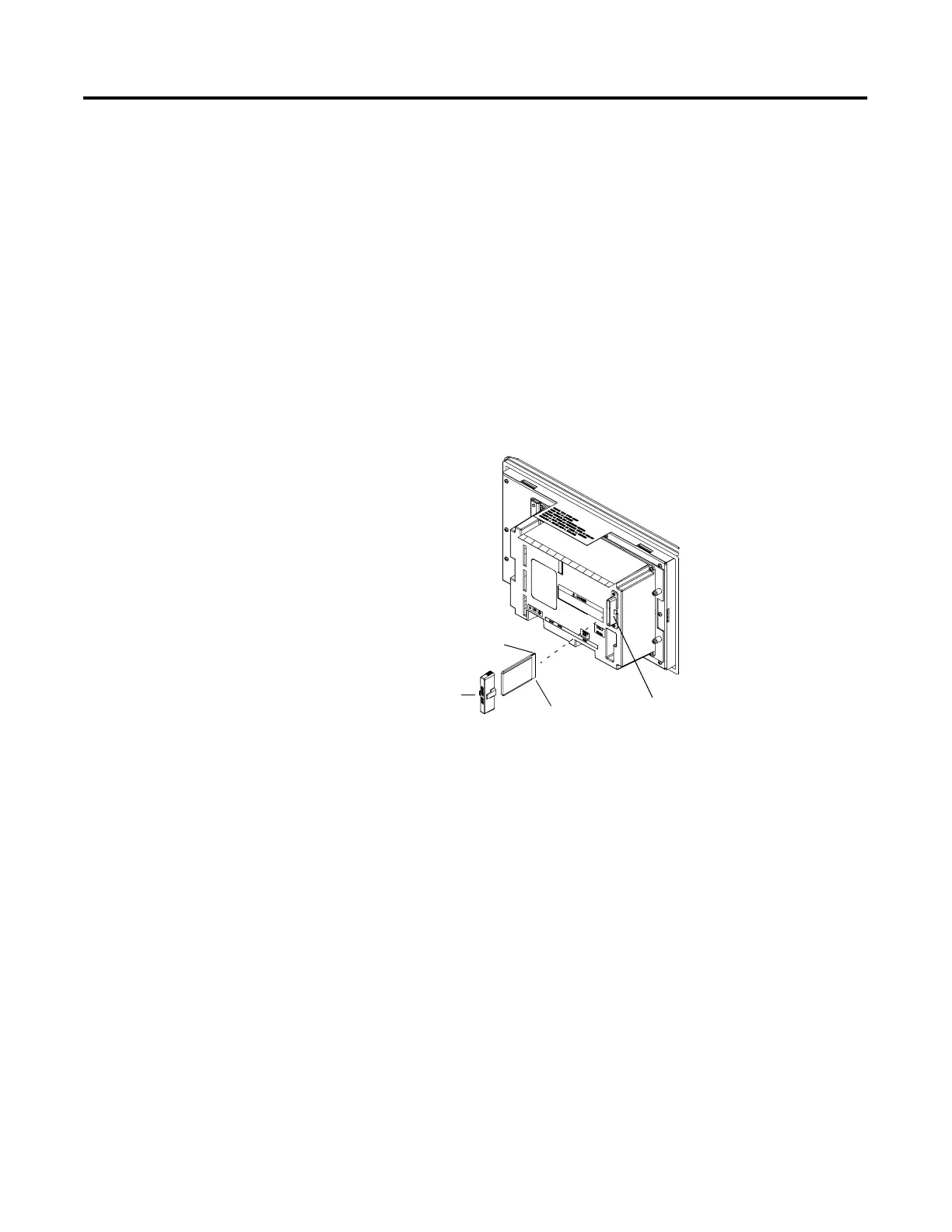

The following illustration shows the memory card and the memory
card retainer. The card loads in the back of the terminal with the key
slot on top.
Note: The back of the PanelView 900 terminal is shown above. The
location of the card slot will vary between the different terminals.
Memory Card Slot
Memory Card
Retainer
Key Slot
A-B logo on right side
Connector Slots
