Publication 2711-UM014B-EN-P
9-2 Installing the PV600 Terminal
Required Tools
Other than the tools required to make the PV600 panel cutout, the
tools required for installation are:
• small slotted screwdriver
• torque wrench (in. / lbs)
• #2 phillips screwdriver
• #2 phillips bit for torque wrench
Mounting Dimensions

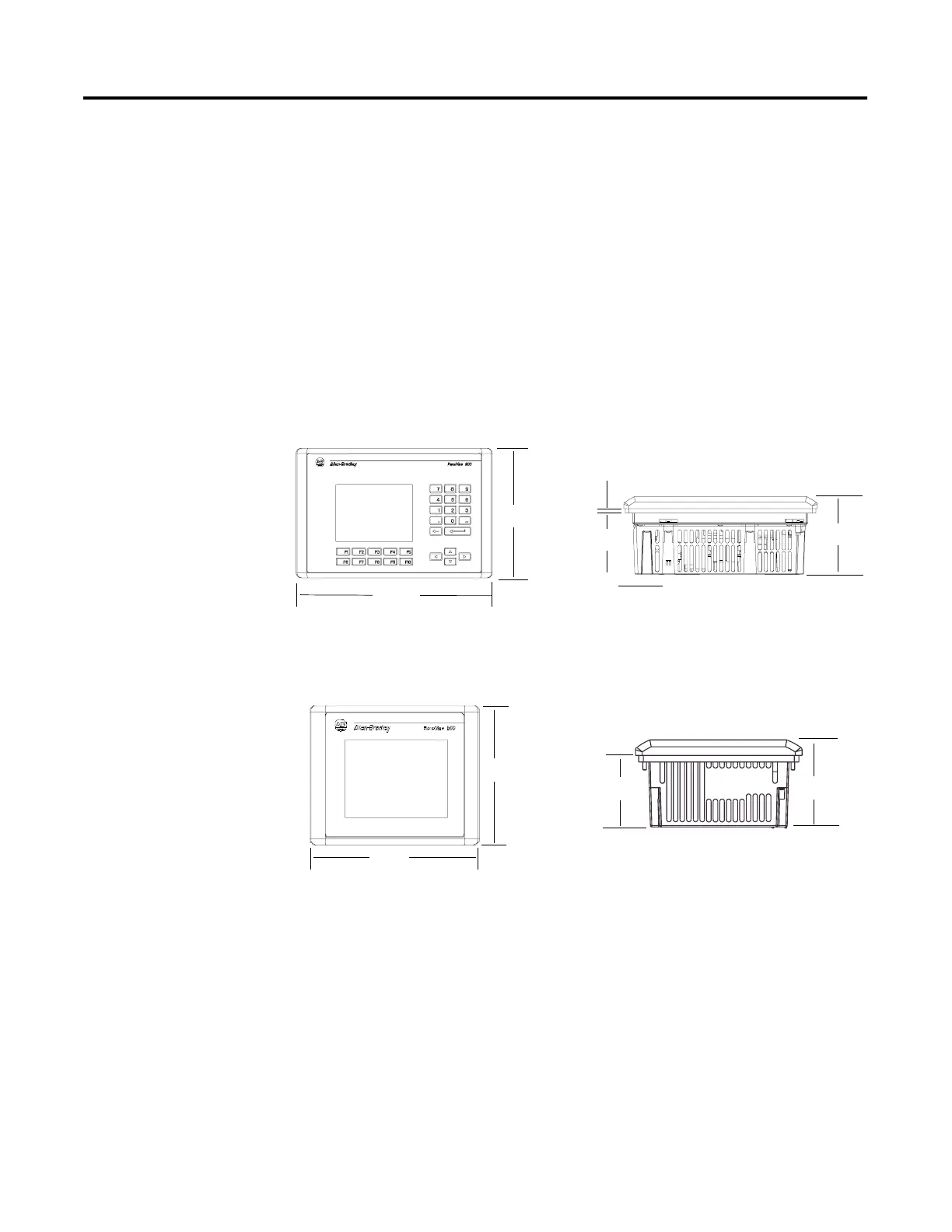

The illustration below shows mounting dimensions for the PV600
terminals.
PV600 Keypad, Keypad & Touch Screen Terminals
PV600 Touch Screen Terminals
290 mm
(11.40 in)
192 mm
(7.55 in)
6.9 mm
(0.27 in)
91 mm
(3.60 in)
116 mm
(4.57 in)
Top View
152 mm
(6.00 in)
185 mm
(7.28 in)
79 mm
(3.12 in)
96 mm
(3.80 in)
Top View
