Installing the PV900/1000 Terminals 10-5
Cutout Dimensions
Use the full size template shipped with the PV900 and PV1000
terminals to mark the cutout dimensions. The following illustrations
show reduced cutouts for these terminals with dimensions.

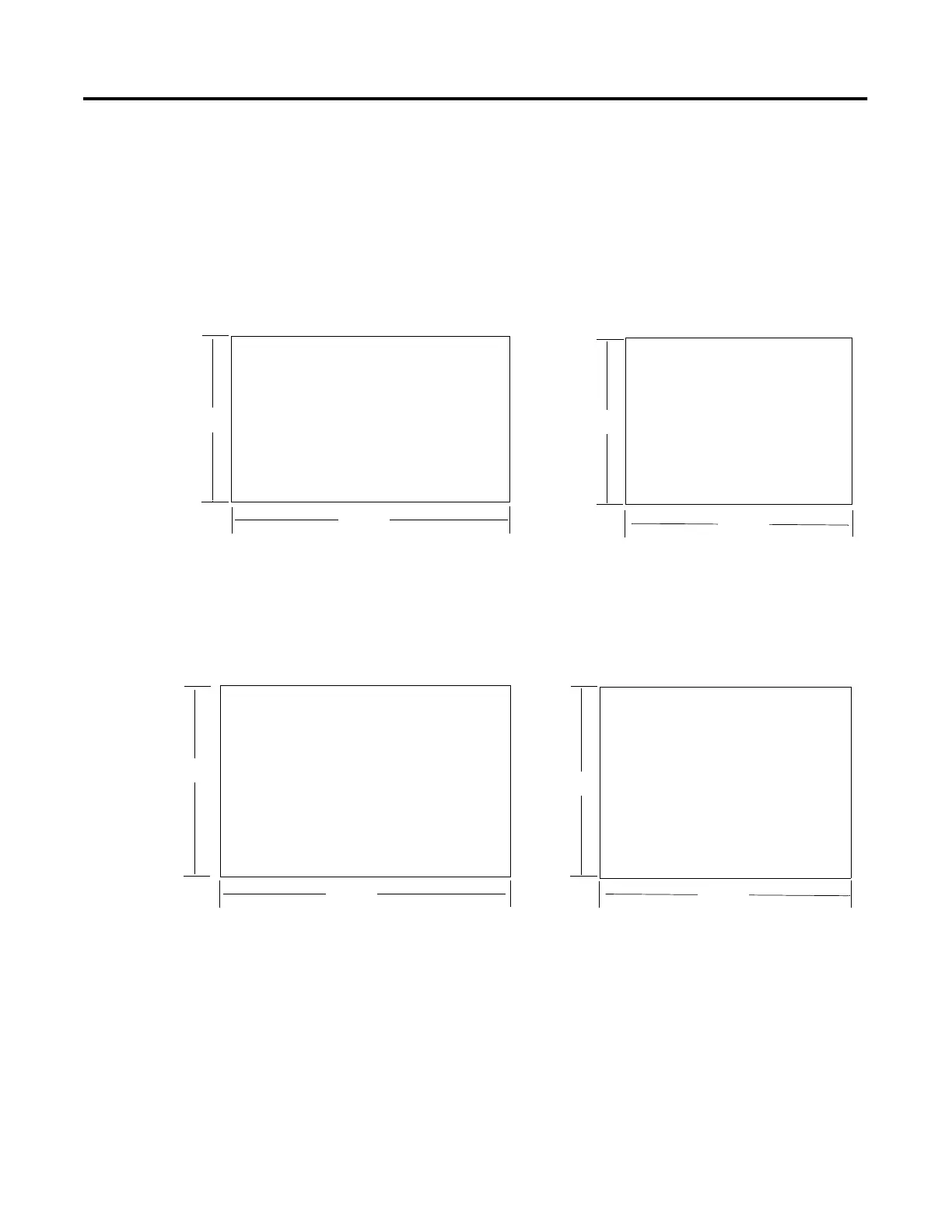

PV900 Panel Cutout Dimensions
PV1000 Panel Cutout Dimensions
375 mm
(14.75 in)
224 mm
(8.8 in)
305 mm
(12.00 in)
224 mm
(8.8 in)
PV900 Keypad Terminals
PV900 Touch Screen Terminals
Recommended Panel Cut-out Dimensions
Recommended Panel Cut-out Dimensions
390 mm
(15.35 in)
257 mm
(10.11 in)
338 mm
(13.29 in)
257 mm
(10.11 in)
PV1000 Touch Screen Terminals
PV1000 Keypad Terminals
Recommended Panel Cut-out Dimensions
Recommended Panel Cut-out Dimensions
