Publication 2711-UM014B-EN-P
8-2 Installing the PV550 Terminal
Enclosures
Mount the PV550 terminal in a panel or enclosure to protect the
internal circuitry. The terminal meets NEMA Type 12/13 and 4X
(indoor use) ratings only when mounted in a panel or enclosure with
the equivalent rating.
Allow enough space within the enclosure for adequate ventilation.
Consider heat produced by other devices in the enclosure. The
ambient temperature around the terminals must be between 0° and
55° C (32° and 131° F).
Make provisions to access the back panel of the terminal for wiring,
maintenance, installing a memory card and troubleshooting.
Required Tools
Other than the tools required to make the PV550 panel cutout, the
tools required for installation are:
• 7 mm (M4) deep well socket wrench or nut driver
• small slotted screwdriver
• torque wrench (in / lbs)

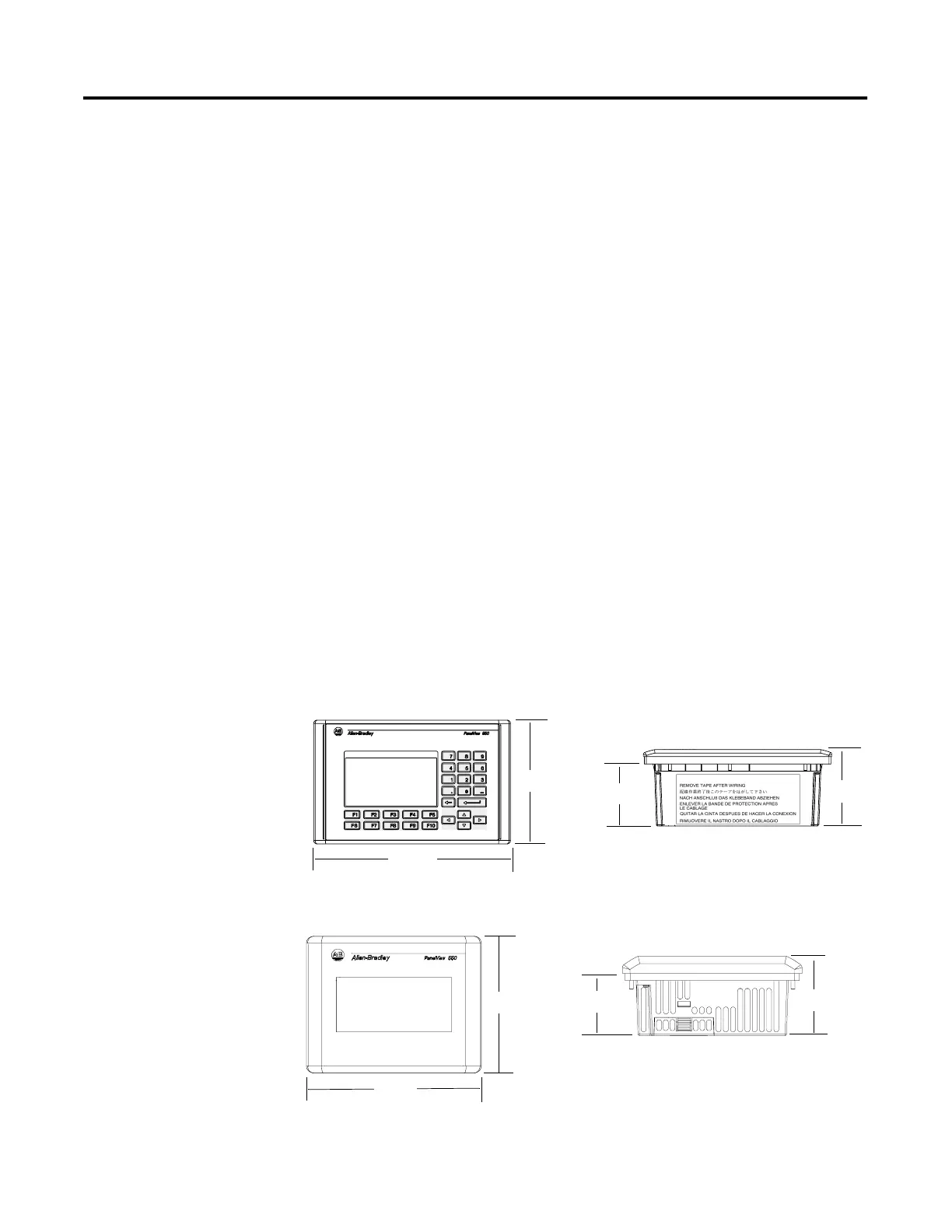

Mounting Dimensions
The illustration below shows mounting dimensions for the PV550
terminals.
PV550 Keypad, Keypad & Touch Screen Terminals
PV550 Touch Screen Terminals
266 mm
(10.47 in)
167 mm
(6.57 in)
106 mm
(4.17 in)
86 mm
(3.39 in)
Top View
185 mm
(7.28 in)
152 mm
(6.00 in)
64 mm
(2.54 in)
82 mm
(3.20 in)
Top View
