Installing the PV550 Terminal 8-3

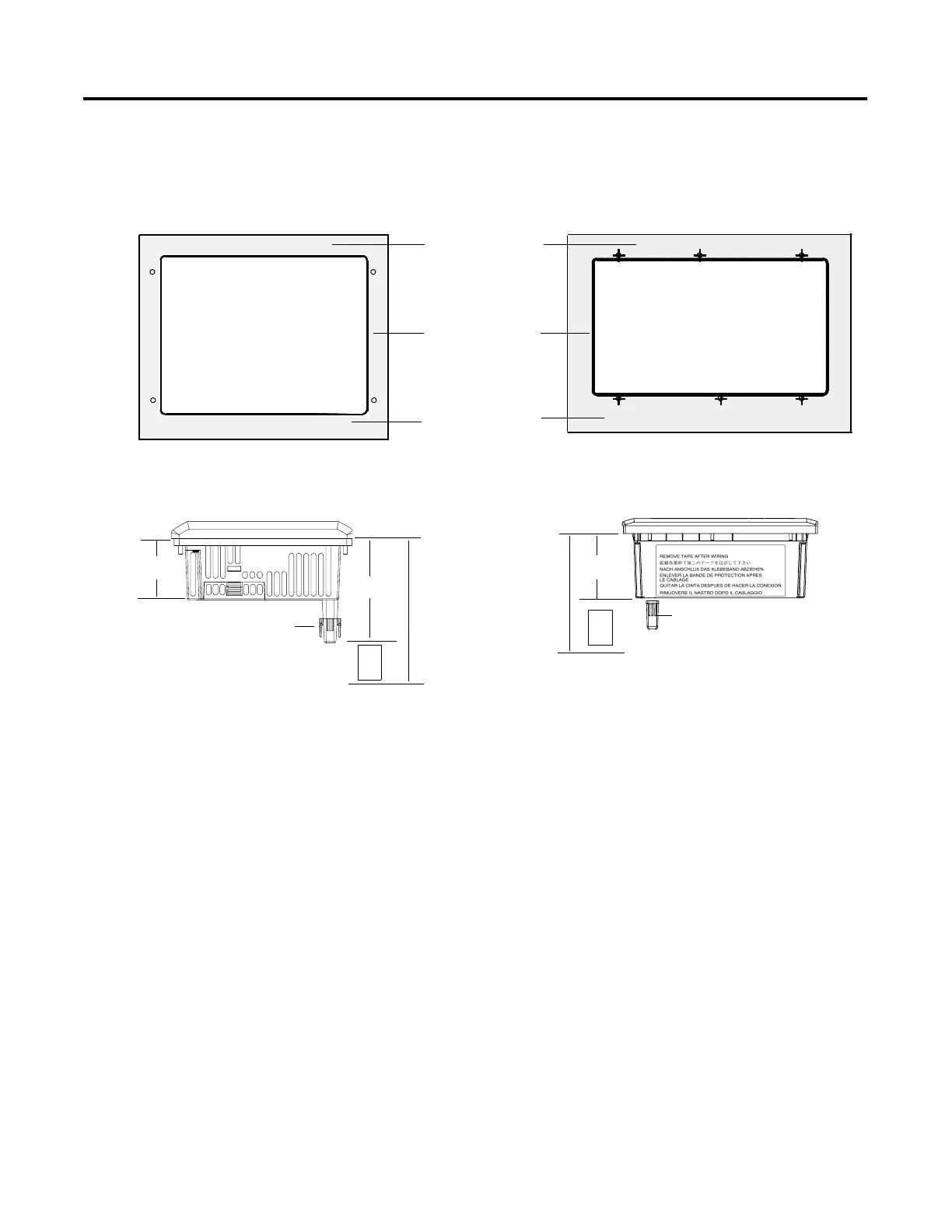

Clearances
When installing the PV550 terminal, allow space for mounting, air
flow, maintenance, memory card and legend strip installation.
Leave 25 mm (1.0 in)
for Mounting and Air Flow
Leave 38 mm (1.5 in)
for Mounting, Air Flow
and Wiring Connections
Leave 25 mm (1.0 in)
for Mounting and Air Flow
Card
207 mm (8.15
in) is required to
insert and
remove a
memory card with the
memory card retainer.
86 mm
(3.39 in)
Card
64 mm
(2.54 in)
109 mm
(4.3 in)
188 mm (7.40 in) is
required to insert and
remove a memory card
with the memory card
retainer.
PV550 Touch Screen Terminals
PV550 Keypad, Keypad & Touch Screen Terminals
Terminal Cutout
Use full size template
shipped with terminal
Terminal Cutout
Use full size template
shipped with terminal
Back Clearance
Back Clearance
Memory Card Retainer
Memory Card Retainer
