Publication 2711-UM014B-EN-P
6-4 Installing the PV300 Micro Terminal
Installing Terminal in Panel
To install the PV300 Micro in a panel:
3. Cut an opening in the panel using the panel cutout provided
with the terminal. Remove sharp edges or burrs.

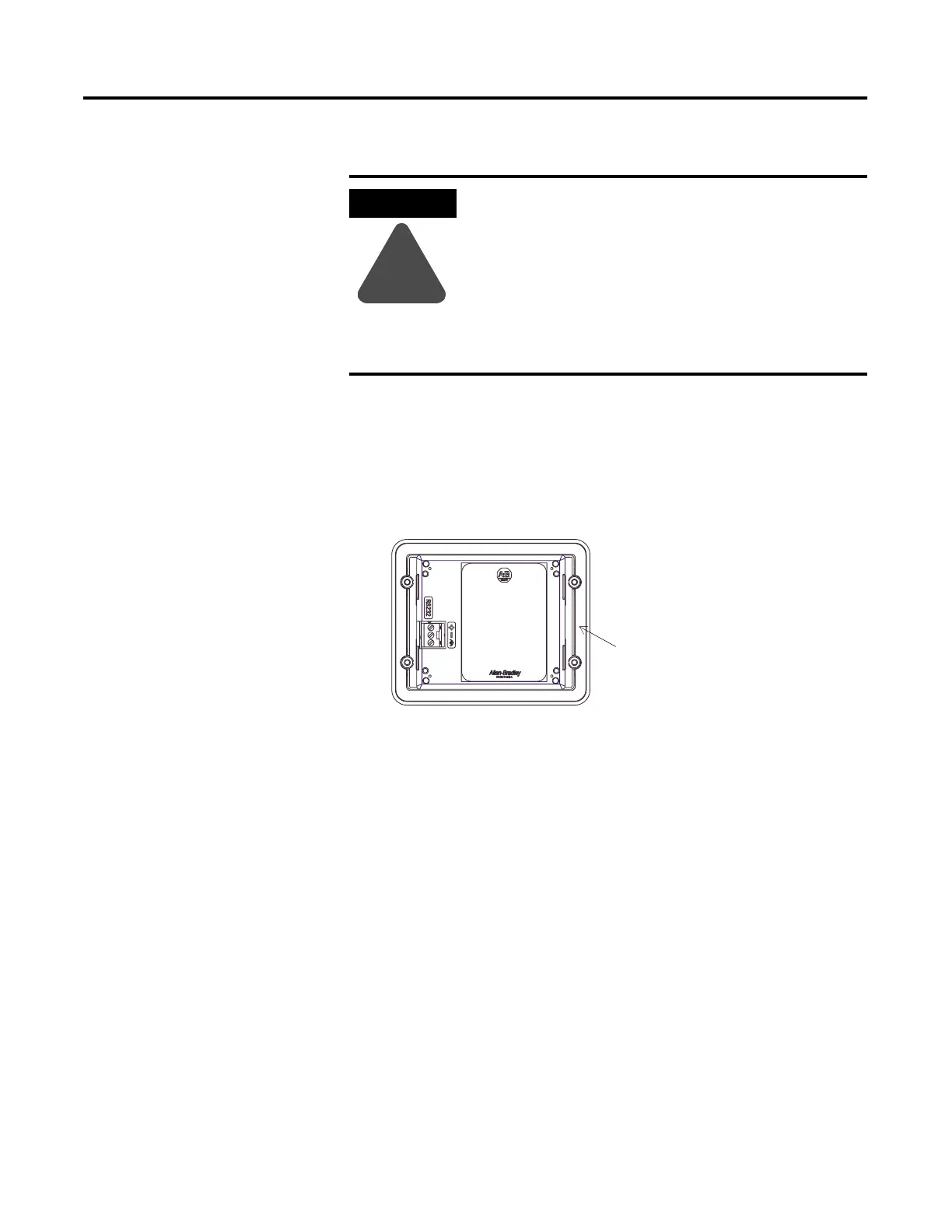

4. Make sure the sealing gasket is properly positioned on the
terminal (as shown below). This gasket forms a compression
type seal. Do not use sealing compounds.
5. Place the terminal in the panel cutout.
6. Install the 4 self-locking nuts, hand tight.
ATTENTION
!
• Disconnect all electrical power from the panel
before making cutout.
• Make sure area around the panel cutout is clear.
• Take precautions so that metal cuttings do not
enter any components already installed in panel.
• Failure to follow this warning may result in
personal injury or damage to the panel
components.
Sealing Gasket
To Next Page
