Maintenance, first 50h
4812160001_A.pdf2014-08-25

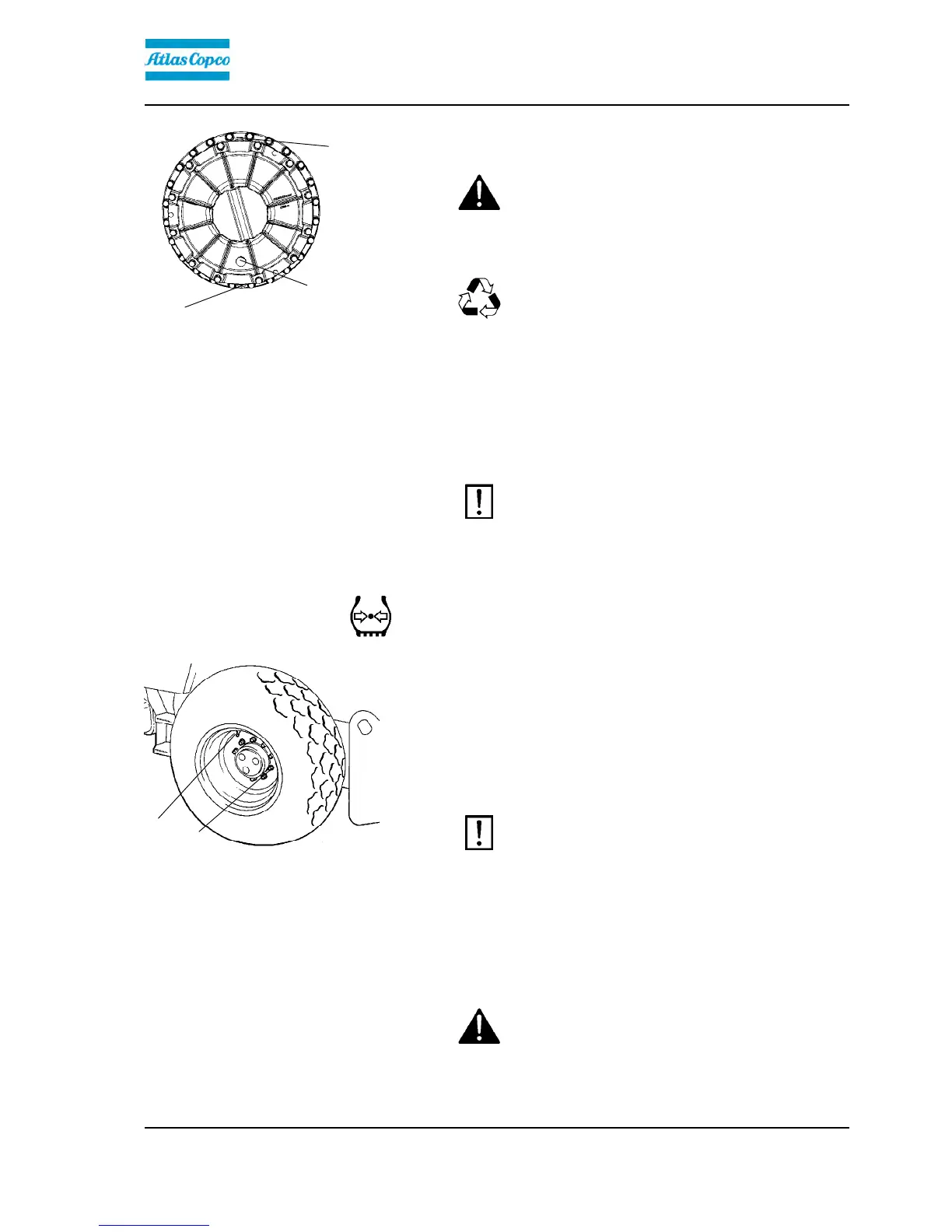

Fig. Left drum side
1. Filler plug
2. Drain plug
3. Sight glass
1
2
3
Place a receptacle for about 5 liters (1.32 gal)
underneath the drain plug (2).
Observe care when draining drum oil/hot drum oil.
Wear protective gloves and goggles.
Observe care when draining drum oil/hot drum oil.
Wear protective gloves and goggles.
Save the oil and hand in to an
environment-friendly waste disposal station.
Save the oil and hand in to an
environment-friendly waste disposal station.
Clean and unscrew the filler plug (1) and the drain
plug (2).
Allow all the oil to run out. Fit the drain plug and fill
with new synthetic oil in accordance with the
instructions under "Drum cartridge - checking the oil
level".
Ensure that only AtlasCopco Drum Oil 1000 is
used in the cartridges.
Ensure that only AtlasCopco Drum Oil 1000 is
used in the cartridges.
Repeat the procedure on the opposite side.
Tires - Air pressure - Wheel nuts - Tightening
Fig. Wheels
1. Air valve
2. Wheel nut
1
2
Check the tire pressures using a pressure gauge.
If the tires are filled with fluid, the air valve (1) must be
in the "12 o'clock" position during pumping.
Recommended pressure: See Technical
Specifications.
Check the tire pressure.
When changing the tires it is important that both
of them have the same rolling radius. This is
necessary to ensure proper functioning of the
anti-slip in the rear axle.
When changing the tires it is important that both
of them have the same rolling radius. This is
necessary to ensure proper functioning of the
anti-slip in the rear axle.
Check the tightening torque of the wheel nuts (2) at
630 Nm (465 lbf.ft).
Check both wheels and all nuts. (This only applies to a
new machine or newly fitted wheels).
Check the safety manual that accompanies the
roller before filling the tires with air.
Check the safety manual that accompanies the
roller before filling the tires with air.
101
