Maintenance - 1000h
4812160001_A.pdf2014-08-25
Steering hitch - Tightening

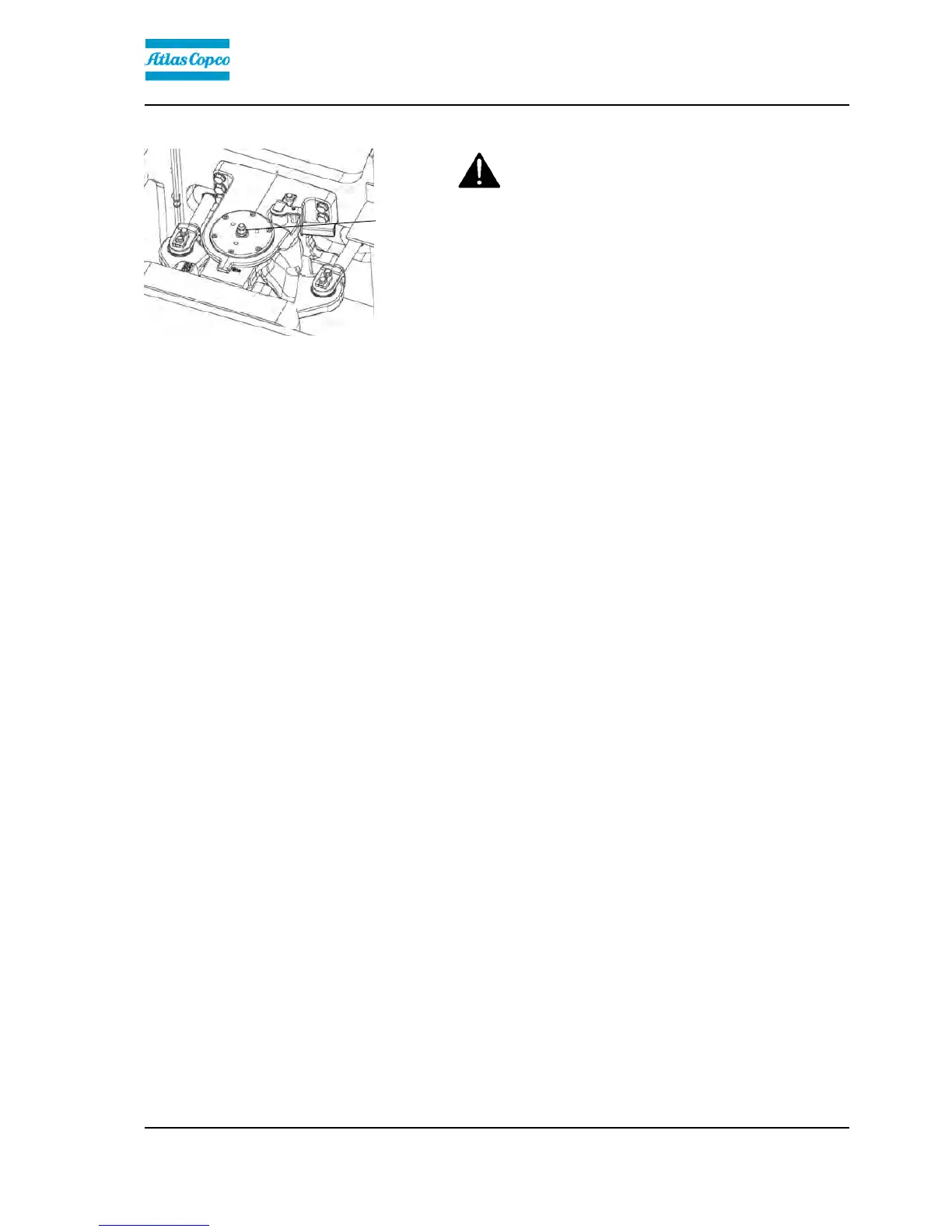

Fig. Steering hitch
1. Nut (24mm)
1
Nobody must be allowed near the steering joint
when the engine is running. Risk of being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
Nobody must be allowed near the steering joint
when the engine is running. Risk of being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
To do this torque control, you need a torque wrench
that can handle at least 300 Nm.
The easiest way to identify if you have this type of
steering hitch is that it has a new type of nut (24mm)
(1) at the top, as shown.
Actual torque should be 270 Nm when the machine's
position is straight ahead.
